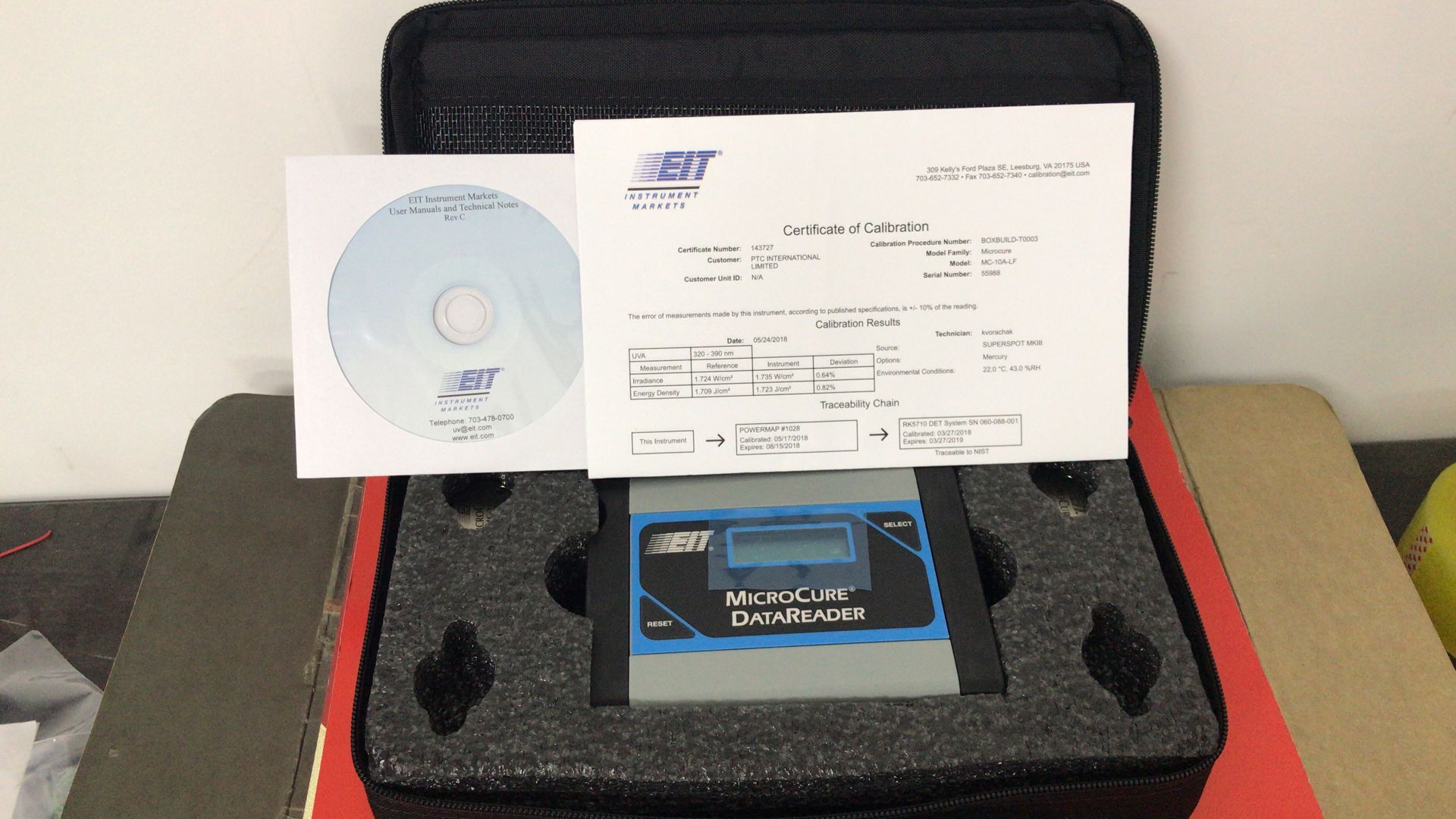

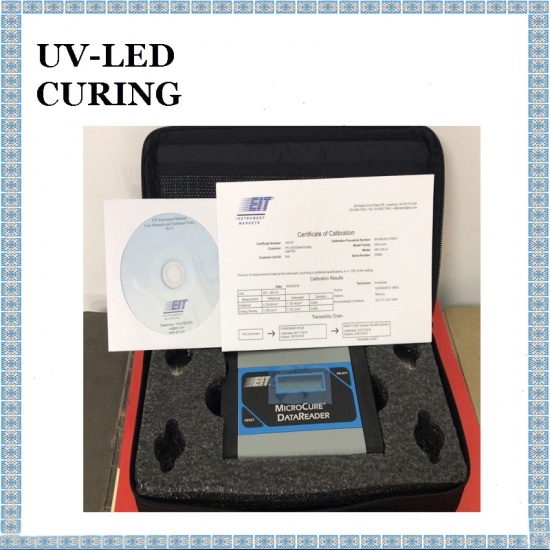

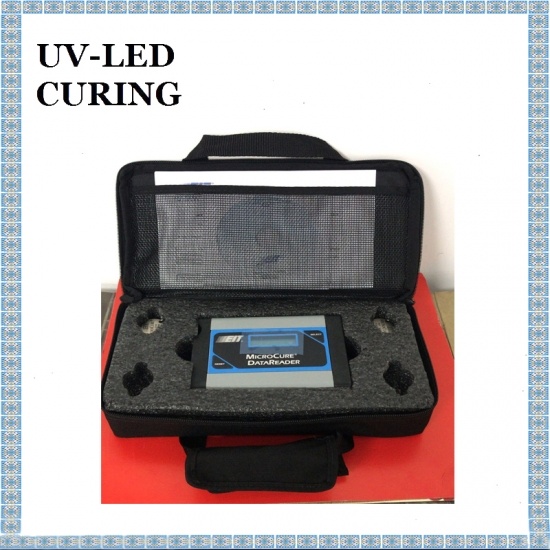

The MicroCure ® Wireless Operation System UV Energy Meter combines its compact size and adaptability to address a variety of demanding physical and thermal environments.
model no. :
MicroCure EITBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINAThe EIT Instrument Markets MicroCure ® is a radiometer that addresses UV measurement and process control in areas where radiometer placement is difficult. The MicroCure ® combines its compact size and adaptability to address a variety of demanding physical and thermal environments. These attributes make it possible to obtain measurements in curing applications that were previously inaccessible to radiometers.
The Wireless Operation System UV Energy Meter radiometer is a microprocessor-based, calibrated, electro-
optic instrument that measures and accumulates total UV energy and UV irradiance applied to its measurement surface. The DataReader reads and displays the data collected by the MicroCure ® radiometer.
Operation

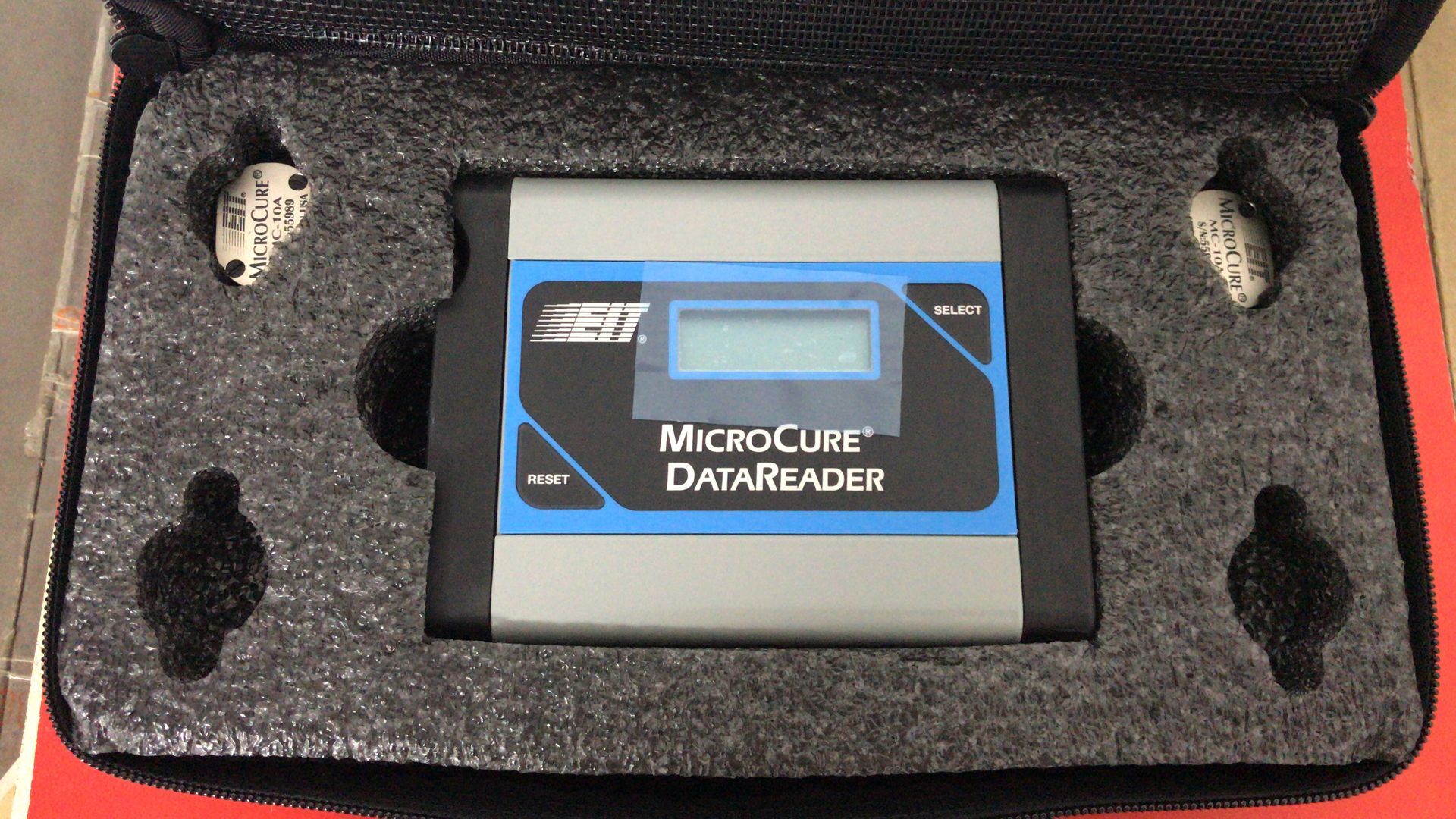

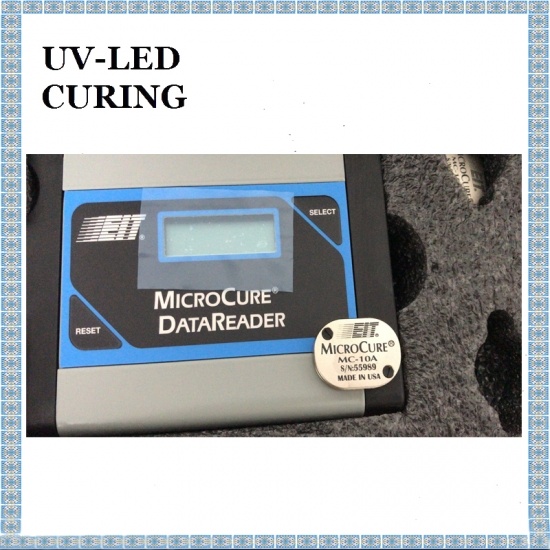

1. Insert the MicroCure ® into the slot in the upper left side of the DataReader.
2. Press the RESET button to move the unit from standby/sleep mode to turn the unit on to active data collection mode. The DataReader will briefly display the software version (Px.xx), "rxx" where "xx" is the number of unit resets, then "0.00" to indicate that the unit is ready to take a reading.
3. Remove the MicroCure ® from the DataReader and place it in the UV process with the optics aperture towards the UV source.
NOTE: The MicroCure ® must be exposed to UV energy within four minutes after being reset. Otherwise, the MicroCure ® it will go back into standby/sleep mode. The DataReader automatically shuts down after thirty seconds of inactivity.
4. Remove the MicroCure ® from the UV environment and place it back into the slot in the DataReader.
5. Press the SELECT button. The DataReader will display the total UV energy in Joules per square centimeter (J/cm²) or the irradiance in Watts per square centimeter (W/cm²). Press and hold the SELECT button to toggle between total energy and irradiance.
6. Press the RESET button when the reading is displayed to clear the current reading and to set the MicroCure ® for its next reading.
High Speed Application
The MicroCure ® 's sample rate of 2048 samples per second produces accurate readings at high system speeds. Since total energy readings are directly proportional to exposure time, a reading for a high-speed system can be derived from a reading taken at a lower speed. For example, if the system speed is 600 feet per minute (fpm), jog the system down to 60fpm and take an energy reading. This reading represents the UV total energy of the system at 1/10 th the speed. To translate this to 600fpm, simply divide the energy reading by 10.
NOTE: Irradiance readings with the MicroCure ® should be consistent and are not dependent on speed. The MicroCure ® should register similar irradiance readings when consistent data collection techniques are .
The irradiance values displayed by the MicroCure ® are instantaneous peak irradiance values versus average or RMS irradiance values. The irradiance values are similar to the irradiance values collected with EIT instruments used in the “Smooth Off” (instantaneous peak) mode versus “Smooth On” (average peak) mode.
Maintenance
MicroCure® Radiometer Clean the MicroCure ® Radiometer's aperture with a cotton swab and isopropyl alcohol. Use isopropyl alcohol and a soft cloth to clean the case of the MicroCure ® .
Do not open the radiometer's case. There are no user-serviceable parts inside the unit.
The MicroCure ® radiometer is given a one-time calibration before it is shipped from EIT Instrument Markets. It is specified to take 200 readings or last for approximately one year. Once the unit meets one of these conditions, it must be replaced.
The MicroCure ® Unit contains a battery. Any expired MicroCure ® units may be returned to EIT for proper disposal of the battery.
Specification :
MicroCure ® Radiometer
Dynamic Range |
Low Power (-2): 100mW/cm² to 2W/cm² High Power (-10): 500mW/cm² to 10W/cm² Display flashes if over-ranged |
Peak Irradiance Accuracy |
+/- 7% typical @ 25° -0.2% per °C over operating range |
Spectral response |
UVA (320-390nm) |
Sample Rate |
2048 samples per second |
Total Energy |
0-9999 Joules/cm². Display flashes if over- ranged. |
Energy Accuracy |
+/- 7% typical @ 25° -0.2% per °C over operating range |
Spatial Response |
Approximately cosine |
Operating Temperature Range |
15-70°C internal |
Time-Out Period |
4 minutes nominal after last UV exposure |
Batteries |
Permanent lithium cell Expired units can be returned to EIT for proper battery disposal |
Battery Life |
200 readings with typical use or 1 year |
Dimensions |
1.30" long x 1.0" wide x 0.25" high (33.0mm x 25.4mm x 6.4mm) |
Weight |
0.33 oz. (9.4 grams) |
Materials |
Plated aluminum, nylon |
Data Reader
User Interface |
Push button switches allow user to display data or reset the unit |
Display |
4 digit liquid crystal display |
Dimensions |
5.75" long x 4.38" wide x 1.2" high (139.7mm x 108mm x 25.4mm) |
Weight |
11.75 oz. (333.11 grams) |
Operating Temperature Rang |
0-70°C |
Timeout |
30 seconds |
Battery |
9V lithium: 36,000 readings or 5 years Alkaline battery life not specified |
Materials |
Steel, nylon, polycarbonate |
The Standard UV INT 140 Integrator is a high quality UV measuring instrument, measuring an integral in the spectral range from 250-410nm, with a peak at the area of 330nm.
UV 150 Integrator Radiometer is very small size round shape UV-Integrator, for measuring UV dose (mJ/cm2), diameter 90 mm only, height 12 mm, various spectral ranges available.
UV Meter Puck can measure four UV wavelength values through the same UV process. The default wavelength is UVA (320-395nm), UVB (280-320nm), UVC (250-260nm), UVV (395-445nm).
LS129 UV Illuminance Measurement is an intelligent UV digital probe, with communication functions, can direct-Connect PLC, Man-machine interface, PC and so on. Mainly used for on-line monitoring of ultraviolet intensity.
The product of Short-Wave Deep UV Illumination Meter is exclusively used in detecting ultraviolet UVC wave spectrum irradiation value.
EIT LEDCure Radiometers, Accurately Measure the Energy Generated is highly accurate readings run-to-run, very repeatable unit-to-unit matching, absolute values when evaluating different sources.
