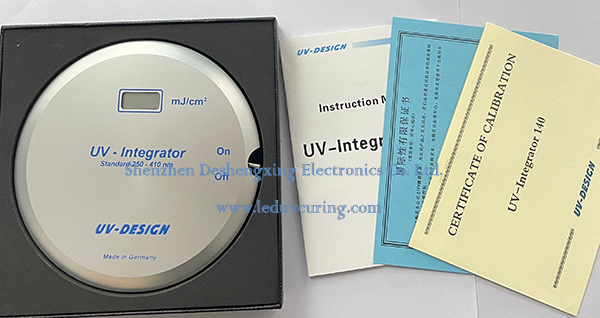

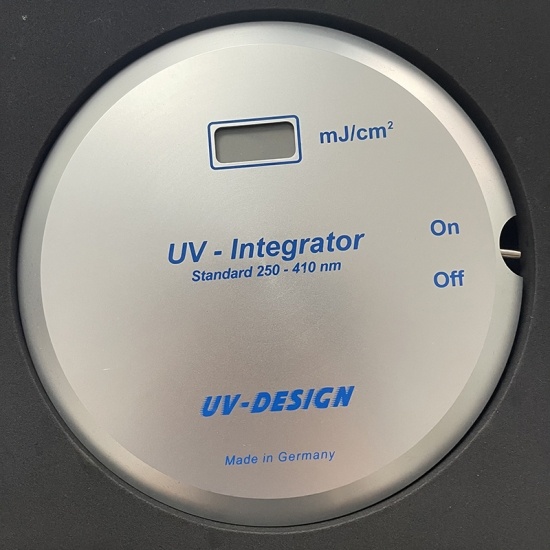

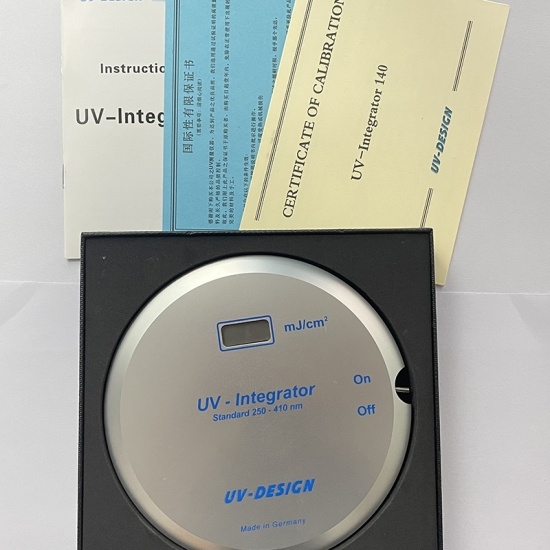

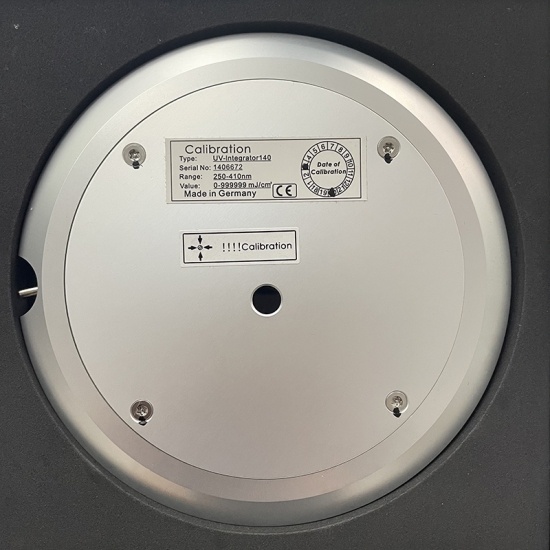

UV-DESIGN UV Integrator 140 High Temperature Resistance Ultraviolet Energy Measuring Instrument

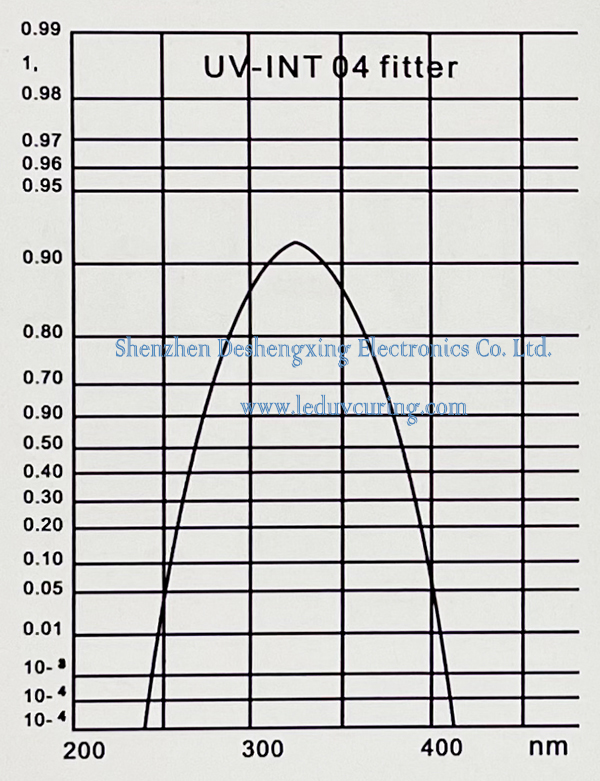

Standard UV INT140 Integrator is measuring an integral in the spectral range from 250-410nm, with a peak at the area of 330nm.

Big size round shape UV-Integrator 140 UV Lamp Intensity Meter Tester for measuring UV dose (mJ/cm2), diameter 140 mm, height 13 mm, various spectral ranges available. Special feature: Kidney shaped recess in the housing for convenient handling.

By addition of the incidence of the light quantities during the exposure cycle, relative values are calculated.

Because of uneven radiation distribution of the UV light source and different type of construction of the measuring devices by different manufacturers, different readings may appear under the same measurement conditions.

Brand : DESIGN

Place of origin : Germany

Name : UV Integrator 140

Application : UV printing, coating, glue, ink curing, drying, glazing and other fields

Industry : mobile phone shell, PCB, UV board, floor, plastic keys and other electronic industries and a variety of other industries.

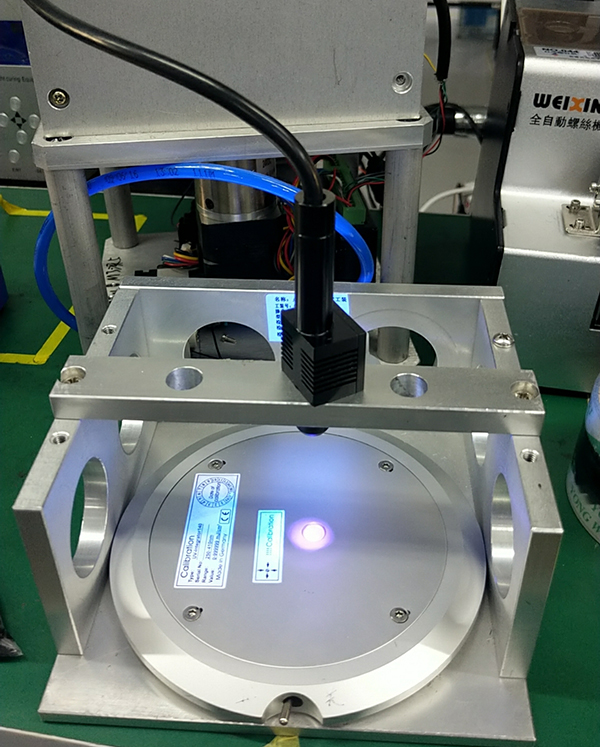

Applicable equipment : UV LED light curing source, UV exposure machine, plate printing machine, UV furnace, light solid machine, tunnel dryer, ultraviolet lamp and other related equipment and products.

Advantages : super high temperature resistance, long service life, it can not be affected by high temperature for a long time. No black screen, long-term stability data without calibration.

Technical Data:

Spectral range: UV 250-410nm

Measuring range: 0 to 5,000mW/cm2

Display range: 0 to 999,999 mJ/cm2

Power source: long-life 3.6V Lithium Battery

Power consumption: 100uA

Battery service life: 10,000hrs

Dimensions: 5.5”(140 mm)φ, 0.5”(13mm) height

Weight: appro x 16 oz (450 gr.)

Temperature range: 0 to 45°Celsius

While on the conveyer belt, the UV-Integrator 140 can withstand max. 230°F(110°C) for up to 1O seconds.

Attention:

1.Please avoid shaking the UV-Integrator 140.

2.UV-light is hazardous to your health. Avoid direct UV-light to your eyes and to your body.

Warranty:

1 years from the date of purchase.

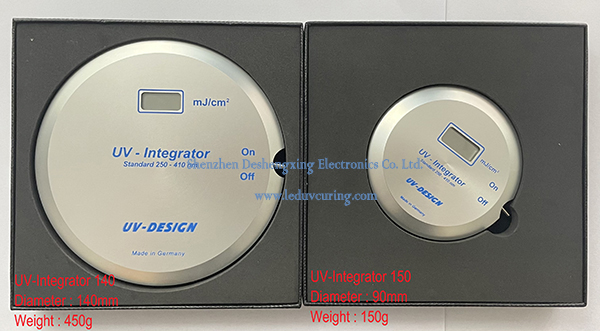

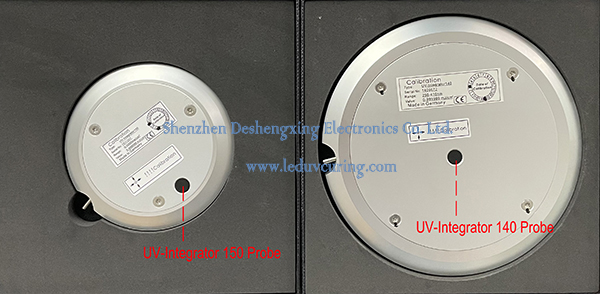

The heat dissipation effect of UV DESIGN UV Integrator 140 is better than that of UV 150, because the plate UV INT 140 is larger and the heat dissipation is faster. Under the same temperature and the same type of equipment, the data obtained by the UV Integrator 140 test is more accurate.
