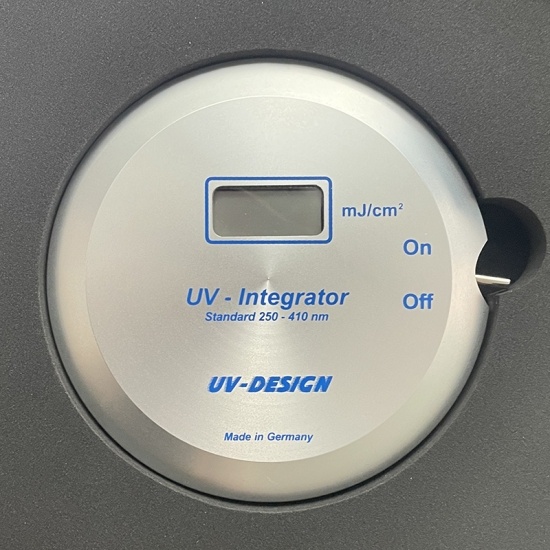

Original Binding 250nm-410nm UV INT 150 UV-Integrator Radiometer

The UV-150 Integrator tester is a high quality UV measuring instrument. It is used to  measure UV energy of different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.

The UV-Integrator 150 Energy Meter is used to measure UV energy and UV does of different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying process.

Technical Data:

Spectral range: UV 250-410nm

Measuring range: 0 to 5,000 mW/cm2

Display range: 0 to 999,999 mJ/cm2

Display: 6-digit LCD

Power source: long-life 3.6V Lithium Battery

Power consumption: 100uA

Battery service life: 10,000hrs

Dimensions: 3.5” (90mm)φ, 0.5” (12mm) height

Weight: approx5.5 oz(150 gr.)

Temperature range: 0 to 70 Centigrade

Temperature range: 0 to 45°Celsius

While on the conveyer belt, the UV-Integrator 150 can withstand max. 230° F(110°C) for up to 1O seconds.

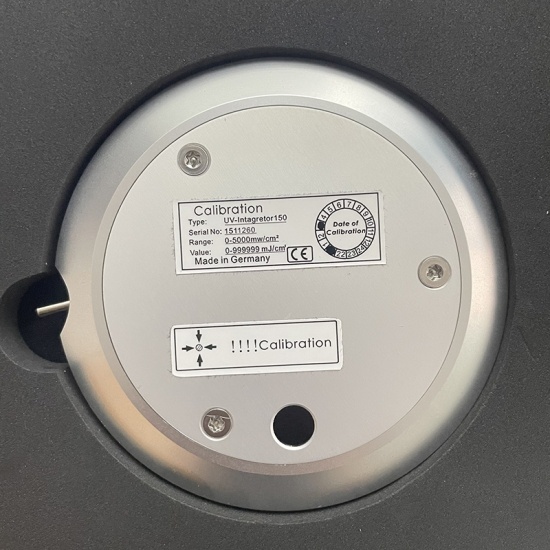

Heat protection: Heat shield on back plate

Base Accuracy: +-5 %

Instruction for use:

1.Switch on the UV-Integrator 150.

The display will show “0”

2.Place the UV-Integrator 150 with the front facing the conveyer belt.

The sensor is on the back.

The back plate of the UV-Integrator 14 serves as the heat shield.

3.After the UV-Integrator 150 has passed through the conveyer, take the UV-Integrator from the conveyer belt in order to read the measuring result.

The measuring results are shown as: mJ/cm2

4.Prior to new measuring sequence, it is necessary to switch “off" and then “on” again.

This will reset the display to “0”.

Continue as described in Step 2.

Calibration:

In order to keep its full function and precision it is recommended to have re-calibration done once per year.

Re-calibration will also be necessary after change of battery.

Warranty:

1 years from the date of purchase.
