Air Cooling UV Solidify Machine Curing Mobile Phone Touch Screen

Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.

  • model no. :

    Air Cooling UV Curing System
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
  • Lead Time :

    15-30 DAYS
Product Details

The AnnexCureTM EB168 UV Solidify Machine provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED source is CE, RoHS, and REACH compliant.

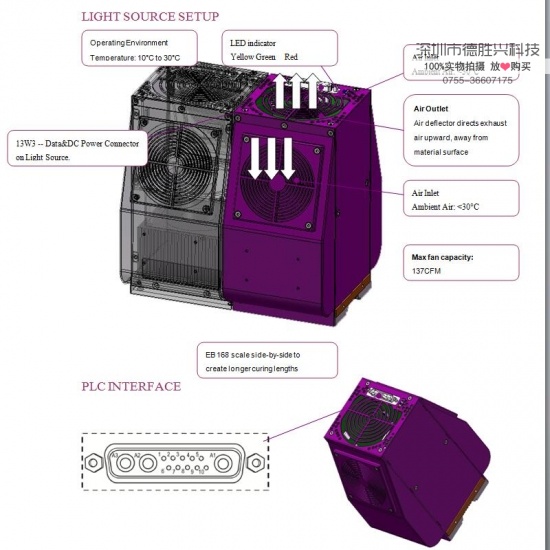

Performance of Instant Curing UV Glue UV LED Dryer Lamp :



365nm

  385nm  395nm  405nm

Peak Irradiance (Flat Glass)

     8w/cm2

  8w/cm2  ~  16w/cm2

Emitting Window

 104mmx25mm

       104 x25mm

 48Vdc Power In (Typical)

    500w/10A

       500w/10A

48Vdc Power In (Maximum)

    500w/10A

       1000w/20A


Air Cooling UV LED Curing System


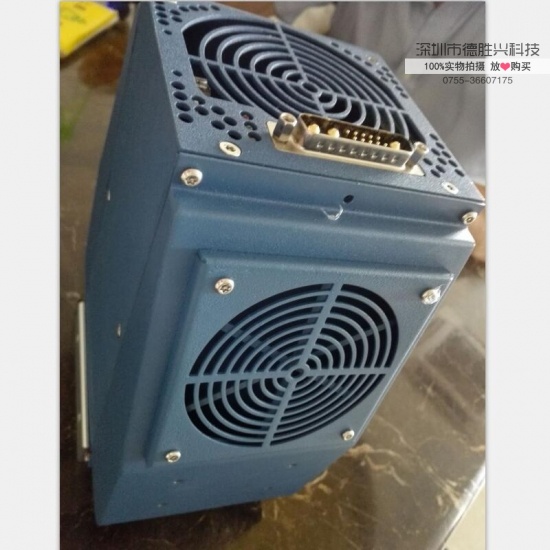

 DB13W3 Connector Pins of Air Cooling UV Curing Systems for Printing :

 Pin

Fuction

Input/Output

Range(min/max)

Comments

4

5

Intensity

Control

Input



0~10V

Input voltage is converted to required current to achieve

desired intensity where 5V = 100% and 1.0V = 20%. A

minimum voltage of 1.0V is required for proper LightSource operation.

 Note: Aslo can be set to 0~5V by TP

  3

8

Enable

 signal

  Input

Dry Switch

.

  ON= LED UVLampON

  OFF= LED UV Lamp OFF



2

  7



Intensity

 Enable

Input

Dry Switch



 ON  =  Intensity Control valid

  OFF =   Intensity Control invalid

  1

  6

Alarm

 Output

Output

Dry Switch

  ON  =  Error

  OFF =   No Error

  Error including three types:

1 Over temperature

2 LED string open

3 LED short Debugging

 9

10

Communication

lines

Input/Output

Modbus



A1

+48VDC Power

Input

Input

+47V to +49V

+48VDC Power Input to power Light Source

A2

Ground

---

    0.0V

  +48VDC Return, Ground

A3

PE



    0.0V

   Protective Earth, Ground

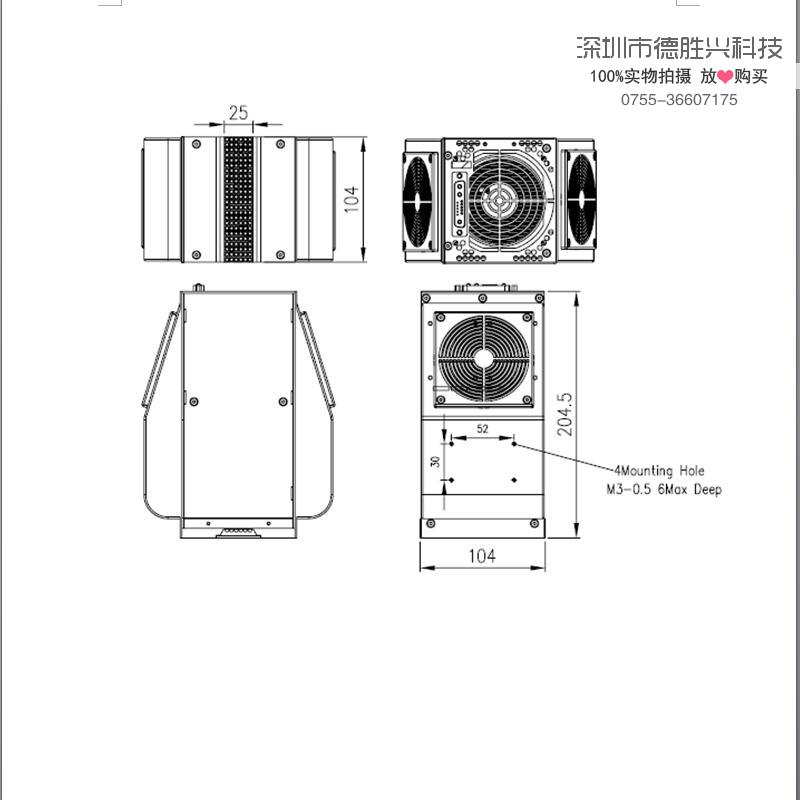

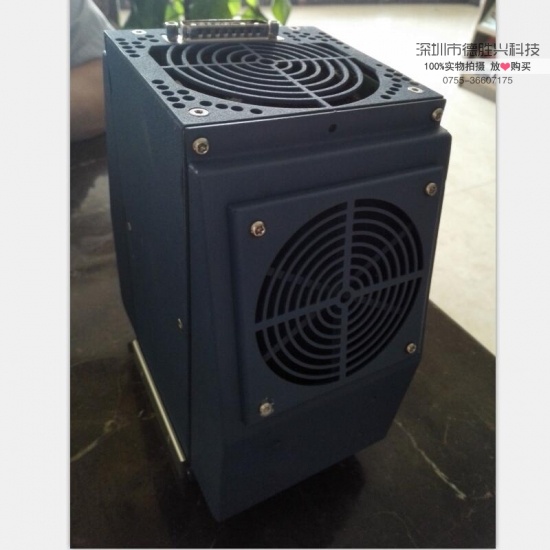

DIMENSIONS of High Power UV Coating Curing Machine without Ozone

Units of measurement: mm

   Dimensions

104 x 25

L

        104

           H

       204.5

           W

      157.8

UV Emitting

Area

     104 x 25

   Weight(kg)

         2.3


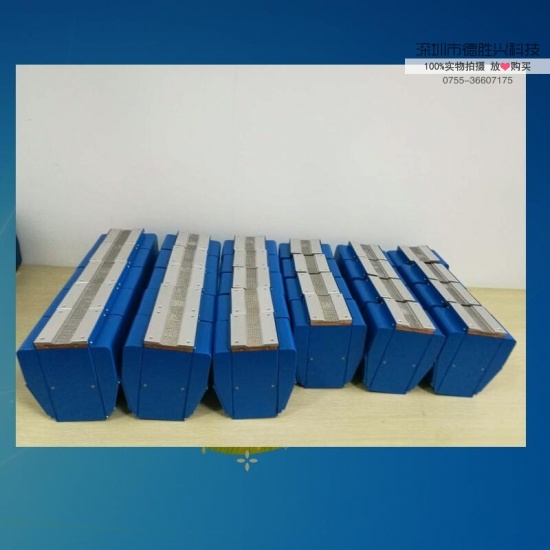

Air Cooling UV LED Curing Machine of Mobile Phone Touch Screen


For more about Hand-held Printer UV ink Ultraviolet UV Lamp, please contact : 1651063690jennifer@gmail.com (Jennifer)
