UV LED Adhesive Curing Machine UV LED Curing Light

Hand-Held Point Light UV Curing Machine, the first of the world, likes a pen, solidified UV glue, with a USB interface.

  • model no. :

    USB+ PEN
  • Brand:

    UV-LED CURING
  • port of dispatch :

    ShenZhen
  • Payment :

    T/T
  • original region :

    CHINA
  • Lead Time :

    7days
Product Details

Hand-Held Point Light UV Curing Machine, the first of the world,  likes a pen, solidified UV glue, with a USB interface.

Thank you for choosing the UV-LED point Curing Machine produced by our company. The machine is high power, high brightness and pure ultraviolet Light LED as a light source, combined with independent research and development control circuit, a new type of curing machine. UV-LED Light Curing The machine is becoming more and more popular in developed countries in Europe and America, and it has proved its reliability in the field of light curing. We study vigorously .The handheld UV curing machine has opened up a new field of domestic handheld UV-LED light curing machine. This machine With the ultraviolet light emitting diode light sensitive wavelength of 365-405nm light curing composite adhesive /UV paint,Polish oil and so on at normal temperature fast curing, for the use of related industries. LED light emitting diode has long life and can be large.Reduced maintenance cost of the machine after the day. It does not produce heat when it works, so it does not need a fan to cool it.Exemptions from the noise and vibration caused by the traditional machines. This machine adopts independent control system, no master

The machine is controlled, each station can set the parameters independently, and the use is very light. This machine adopts pulse output control.The intensity of LED irradiation can be set by itself according to the use condition. The appearance of the machine is more humanized, light and convenient.It is very convenient for users to use.

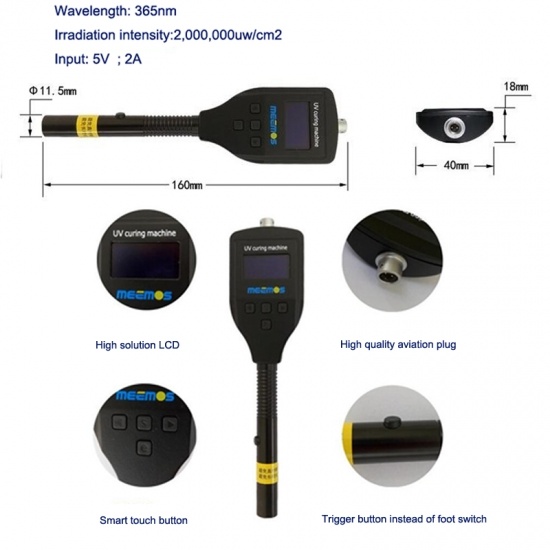

DATA:

Wavelength: 365nm

Qty of UV lamps: 1pc

Irradiation intensity: 2000000mw/cm2

Input: 5V 2A

Model:DSX-USB-PEN

Display mode and content: OLED display, irradiation time, intensity of irradiation

Functional mode: manual mode, automatic mode

Control mode: trigger button

Wavelengths: 365nm, 395nm, etc.

Cable length: 1m, 2m

Total power: 5W

Light power: 1100mW/cm

Input: AC 220V 50HZ DC 5V 2A

Size: W*H*L/ (40*18*160mm)

Weight: About 100g


UV Glue Curing MachineUV LED Spot Pen for Electronic EquipmentHand-Held Curable PenUV LED USB Curing MachineUV LED PEN Curing MachineHand-Held UV LED Curing LightProduct features:

The first hand - held point light UV curing machine in the world opens up a new field of UV curing.
It is convenient to carry, convenient to use and more efficient.
High Definition LCD screen, operation, view more intuitionistic.

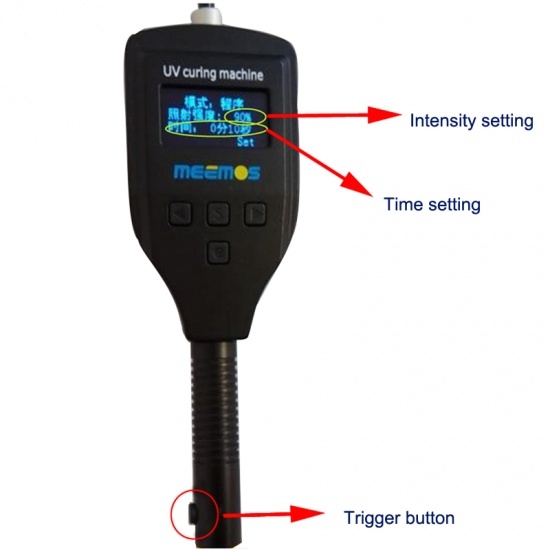

The intensity and time of irradiation can be set by itself and more humanized.
The use of two modes of control, program and point movement, users can choose according to the use of the situation.
The memory accumulative exposure time is convenient for production management.


Features:

 1. It can provide wavelengths (365nm, 395nm, etc.), pure ultraviolet light source.
2. IT is Easy to carry, easy to use, more efficient.
3. It Can match a variety of specifications according to customer needs.
4. Using high definition OLED screen, simple and convenient operation.
5. The intensity and time of irradiation can be set by itself and more humanized.
6. Compared with the traditional mercury lamp, it has the characteristics of ultra high strength, super long life, no heat radiation and so on.
7. Two types of mode control, program and point movement, users can choose according to the use of the situation.
8. The unique optical path design not only makes the use efficiency of light maximized, but also has strong stability.


Caution

1. Package and Transport

When transporting equipment, use random packing materials. Any damage caused by improper packing equipment is not not under warranty.

2. Daily Use and Maintain

LED irradiation head is needed be cleaned regularly. Please use soft buckskin, lens paper and alcohol to clean, ensuring the irradiation intensity and good heat dissipation.

Cleaning the controller regularly. Please wipe with a little alcohol with a cleaning tool. In order to protect the surface of facility, don’t use the volatile liquid or having ammonium hydroxide ingredient to clean (diluent or benzene, etc.).


Attention:

Please do no unauthorized remove the controller and UV LED irradiation head, leading the product to work abnormally.
