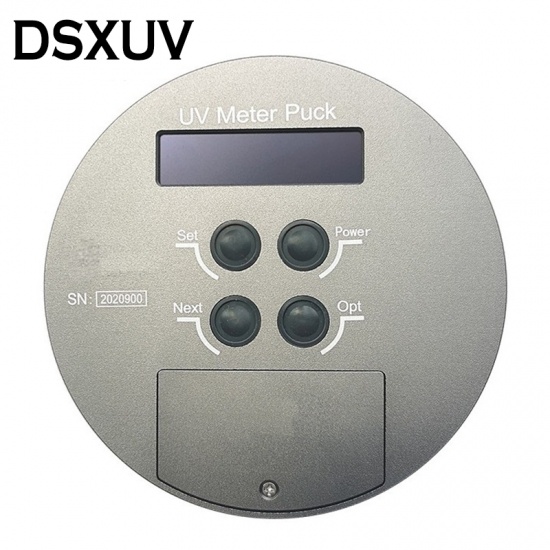

UV Light Integrator UV Meter Puck series reads two important values in the UV curing process : total energy and peak radiation intensity. A radiation reading is the maximum value of an instantaneous UV intensity produced during exposure. The radiation intensity value is the power at a moment during exposure. Instruments are expressed in units of mW/cm2 or W/cm2. Total energy is that the instrument uses to measure the conversion of radiation intensity during exposure, which is expressed in units of mJ/cm2 or J/cm2.

Depending on your process, achieving the required total energy and radiation intensity is essential for successful curing.

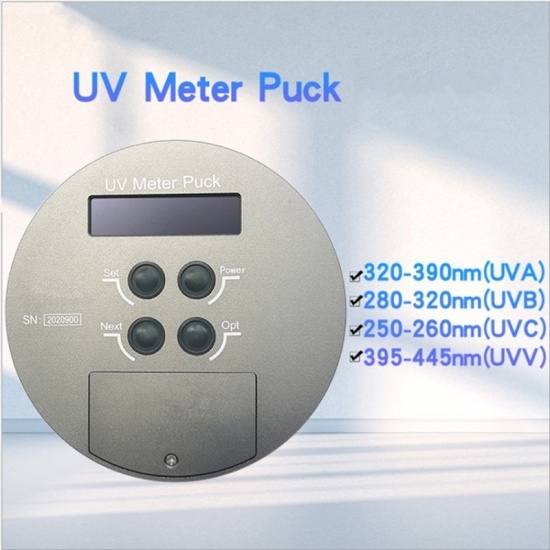

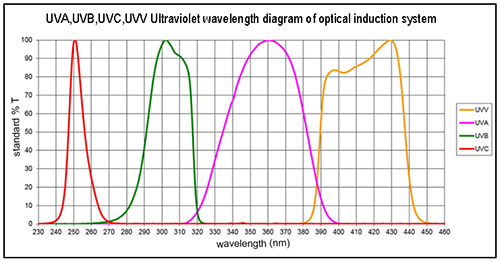

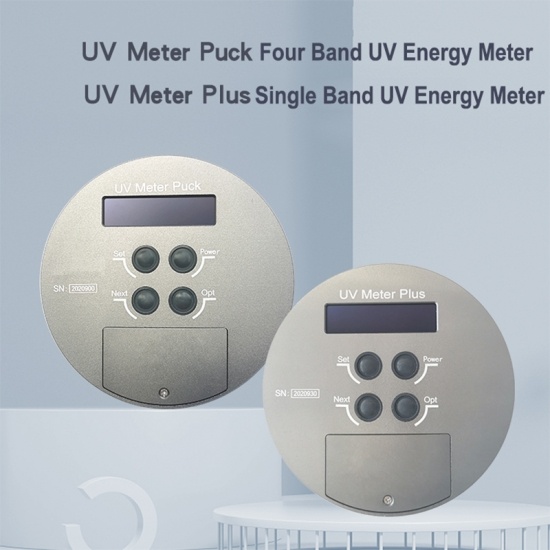

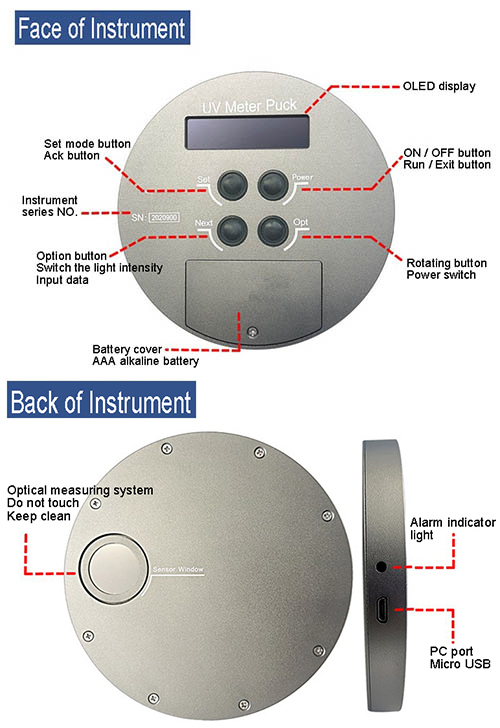

UV Meter Puck can simultaneously measure four different UV wavelength values through the same UV process. The default wavelength is UVA (320-395nm), UVB (280-320nm), UVC (250-260nm), UVV (395-445nm). Compared with UV Meter Plus, UV Meter Plus only allows you to select one wavelength range. The UV Meter Puck readings contain total UV energy and peak radiation intensity across four UV band ranges. However, UV Meter Plus can measure and display only one of these wavelength values.

Parameters :

Appliance : high pressure mercury lamp (electronic components industry, paint spraying industry, UV coating industry, screen printing industry)

Spectrum : UV Meter Puck, UVA (320-395nm), UVB (280-320nm), UVC (250-260nm) and UVV (395-445nm)

Power measurement : UVA / UVB / UVV - 10mW/cm2 to 5000mW/cm2. UVC - 5mW/cm2 to 2000mW/cm2

Power resolution : 1mW/cm2

Power unit : mW/cm2 and W/cm2

Energy measurement : 0-999999mJ/cm2

Energy measurement accuracy : ± 10% , ± 5% typical

Temperature measurement : 0-75℃ internal temperature, allows a higher external temperature for a shorter period of time.

Sampling speed : 2048 times /s

Instrument power supply : 2 AAA alkaline dry batteries

Display : white digital black background, 256*64 OLED LCD screen

Enclosure material : national standard aluminum

Instrument size : diameter 117mm * thickness 13mm

Instrument weight : net weight 218g, including package 700g

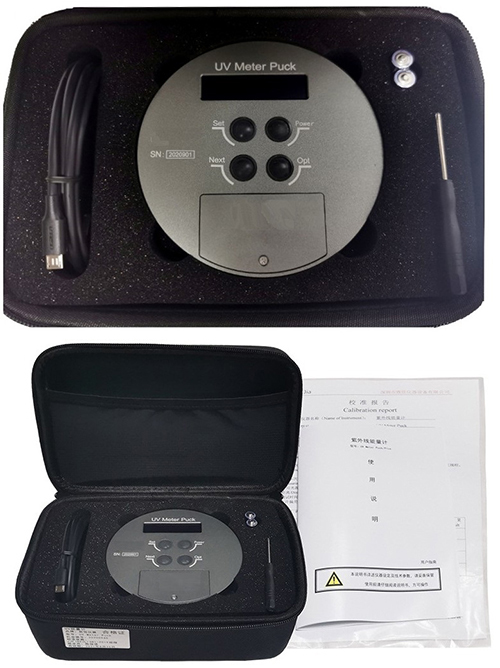

Packing : handbag

Handbag material : high density sponge on the inside, nylon sheath on the outside

Handbag size : 220*145*110mm

Three modes of the four display interfaces

A : the average power measured over time

P : the highest power

REF : the first measurement and set to a standard value

DIFF : a repeatable reference percentage, and the top of UVA is the second measurement data

PC Communication :

The instrument is equipped with a USB communication port, plug in the USB cable, open the special PC software, you can connect to the computer, read the data in the instrument. The software has the functions of parameter configuration, data reading, ultraviolet power graph table, printing and export PDF file report generation.
