Energy saving factory price UV LED Curing System with desktop conveyor for printing. Effective irradiated area: 30mm*200mmTotall size: 1500x300mm and 1200x400mm
model no. :
Desktop UV Conveyor OvenBrand:
DSXUVport of dispatch :
ShenZhenPayment :
T/Toriginal region :
CHINALead Time :
7-15days
Energy saving factory price UV LED Curing System with desktop conveyor for printing. Effective irradiated area: 30mm*200mmTotall size: 1500x300mm and 1200x400mm
Advantages of LED System UV LED Curing Machine :
1. Long life span: 25000-30000H
2. Energy saving: save 80% electrical than Mercury lamp
3. Enviroment friendly: NO Mercury. NO Ozone
4. NO warm-up time
5. Low temprature
6. UV output adjustment: From 1%-100%.

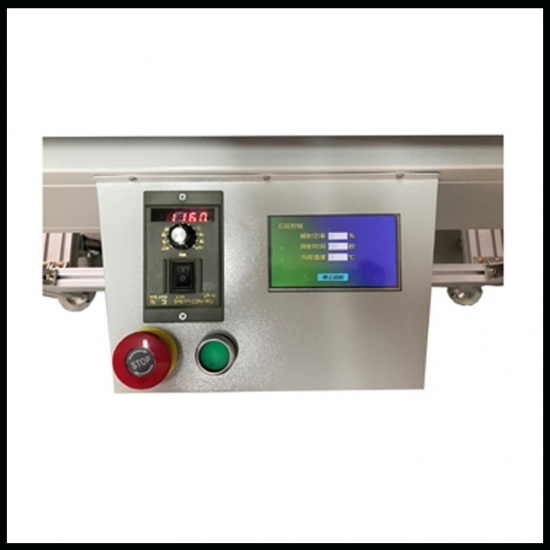

7. Multiple control modes:pedal control, digital I/O, PLC and COM
Technical Data of UV Conveyor Dryer Irradiation Light Head: |
|
Wavelength(±5nm) |
365nm/385nm/395nm/405nm |
Curing Area |
300*200mm/Other Sized Available |
Electronic Power |
1100w |
Input voltage |
220VAC 50Hz / 60Hz |
Cooling method |
Air cooling |
Life |
>10000H |
Conveyor Speed |
100-400mm Adjustable |
Irradiation distance |
10-100mm adjustable |
Optic power |
800mw/cm2 (10mm irradiation distance) |
Recommend Irradiation Distance |
10-100mm |

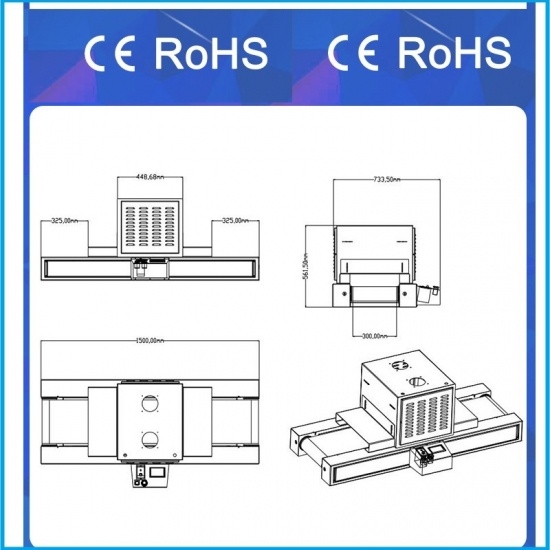

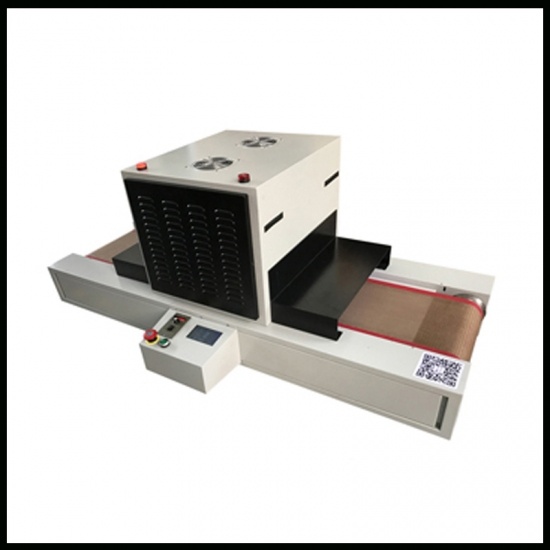

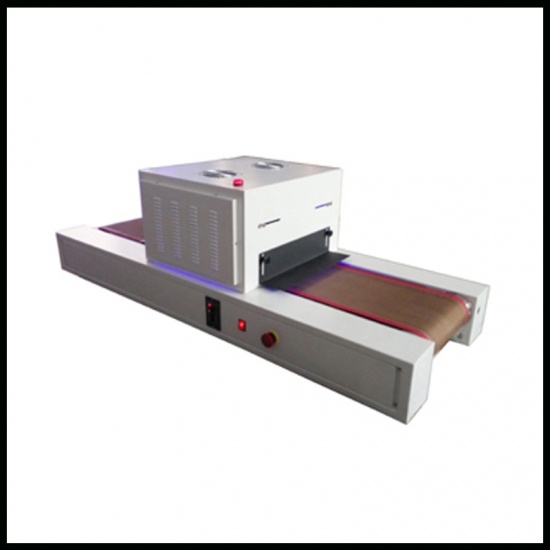

Details of 300*200mm Compact UV Conveyor Oven :

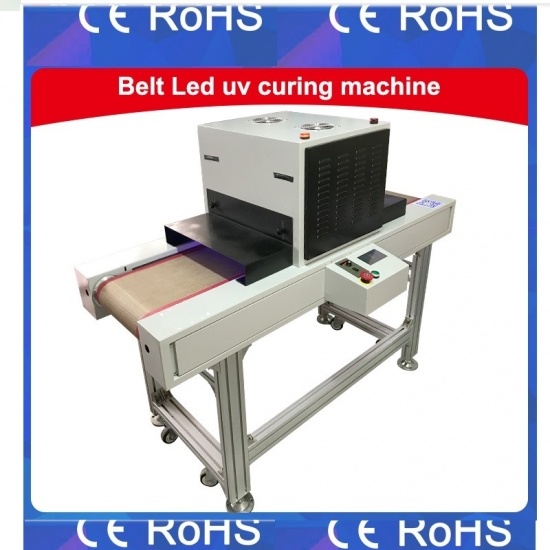

Conveyor Belt UV Curing System :
Wavelenght: 365nm, 385nm, 395nm, 405nm available
Irradiated area: 300*200mm
Peak irradiance: 1300mw/cm2; 2000mw/cm2 available
Irradiated distance: 10-60mm
Intensity range: 1% to 100%
Conveyor description of Desktop UV Conveyor :
Belt width: 300mm
Belt material: teflon mesh
Conveyor speed: 1-10m adjustable
UV light away from the conveyor belt can be adjusted from 10 to 300mm
Product feature of Desktop UV Conveyor Dryer : |
1. Instant ON/ OFF, NO preating required. |
2. Adjustable curing distance, UV output intensity and conveyor speed |
3. Energy saving and environmental protection |
4. infrared sensor to stop, protect your products |
Customized UV LED Dyrer UV Curing Machine with conveyor system.Chain conveyor belt can be adjustable width.Curing Area 300*200mm or other sizes available.
Desktop LED UV Dryer Machine for uv curing. PCB/PCBA Conformal Coating curing. SMT component protection and reinforcement. Medical instrument UV glue curing.
UV LED data line solder joint reinforcement curing machine, replacing traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption and high efficiency.
High Power UV Curing System 395nm is for fast curing. It is without preheating, out-of-the-box, easy to handle.
UV LED Curing Machine for Label Printing is 1000W, for offset printing. It most used for machine facilities.
UV LED+ mercury lamp integrated curing machine, built-in UVLED curing light source and low-power mercury lamp, perfect solution to dry surface problems, simple operation, energy saving.
