UVA LED UV Energy Meter Testing 365nm 385nm 395nm 405nm Ultraviolet Power Illuminometer

UVA LED UV Energy Meter Testing 365nm 385nm 395nm 405nm Ultraviolet Power Illuminometer

UVA LED UV Enerfy Meter series features a complete optical measuring system that measures and displays the total UV energy and UV radiation intensity in the UV curing system.

  • model no. :

    UVA UV Light Integrator
  • Brand:

    DSXUV
  • port of dispatch :

    Shenzhen
  • Payment :

    T/T 100% Before Shipment
  • original region :

    China
Product Details

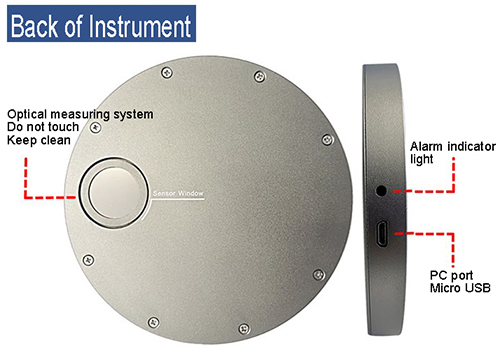

UVA LED UV Meter Measurement series features a complete optical measuring system that measures and displays the total UV energy and UV radiation intensity in the UV curing system.

The precision designed optical systems only measures the value of the wavelength associated with the UV process and converts it into a digital format for display on the OLED display.

The spectrum range of the UV meter LED is : UVA (340-420nm). Instrument readings contain the total UV energy and peak radiation intensity in the UV wavelength range.


UV Light Meter Testing 365nm 395nm LED

UV Measuring Meter Testing UVA LED


Parameters :

Appliance : LED Light Source (UV glue solidification, 3D printing, packing and printing curing, electronics component industry, screen printing industry)

Spectrum : UVA 340-420nm, 395nm UV Light Source as standard

Power measurement : 10mW/cm2 to 20000mW/cm2

Power resolution : 1mW/cm2

Power unit : mW/cm2 and W/cm2

Energy measurement : 0-999999mJ/cm2

Energy measurement accuracy : ± 10% , ± 5% typical

Temperature measurement : 0-75℃ internal temperature, allows a higher external temperature for a shorter period of time.

Sampling speed : 2048 times /s

Instrument power supply : 2 AAA alkaline dry batteries

Display : white digital black background, 256*64 OLED LCD screen

Enclosure material : national standard aluminum

Instrument size : diameter 117mm * thickness 13mm

Instrument weight : net weight 218g, including package 700g

Packing : handbag

Handbag material : high density sponge on the inside, nylon sheath on the outside

Handbag size : 220*145*110mm

UVA UV Energy Testers Supplier


PC Communication :

The instrument is equipped with a USB communication port, plug in the USB cable, open the special PC software, you can connect to the computer, read the data in the instrument. The software has the functions of parameter configuration, data reading, ultraviolet power graph table, printing and export PDF file report generation.

UVA LED UV Power Detector Testing 365nm 395nm 405nm

UVA LED UV Light Intensity Measurement
