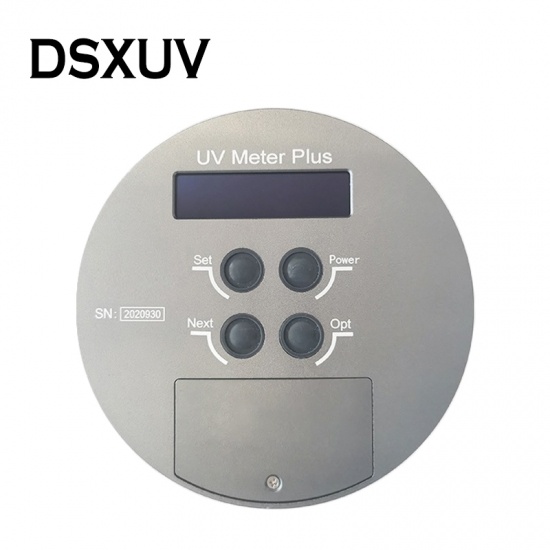

UV Meter Plus Single Band UV Energy Radiometer Testing Ultraviolet Mercury Lamp

UV Meter Energy Measurement series widely used in the UV industry. Available with a variety of UV wavelengths, reference mode UV radiation graphics, PC communications and other functions.It can be used on high and low speed conveyor belts, with measurements consistent with US EIT products, and is very easy to use, one-click operation.

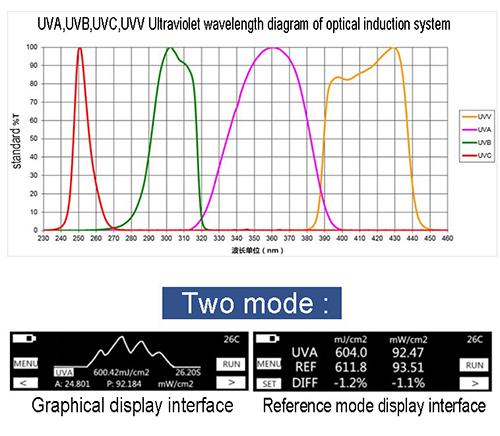

The default wavelength of UV Meter Plus is UVA (320-390nm). It also can be chosen UVB (280-320nm), UVC (250-260nm), UVV (395-445nm). UV Meter Plus allows you to select only one wavelength rang, UVA / UVB / UVC / UVV. Instrument readings contain the total UV energy and peak radiation intensity in the UV wavelength range.

Parameters :

Appliance : high pressure mercury lamp (electronic components industry, paint spraying industry, UV coating industry, screen printing industry)

Spectrum : UVA (320-390) default

UV Meter Plus is single band, you can choose any single band before purchase, UVA (320-390nm), UVB (280-320nm), UVC (250-260nm) or UVV (395-445nm).

Power measurement : UVA / UVB / UVV - 10mW/cm2 to 5000mW/cm2. UVC - 5mW/cm2 to 2000mW/cm2

Power resolution : 1mW/cm2

Power unit : mW/cm2 and W/cm2

Energy measurement : 0-999999mJ/cm2

Energy measurement accuracy : ± 10% , ± 5% typical

Temperature measurement : 0-75℃ internal temperature, allows a higher external temperature for a shorter period of time.

Sampling speed : 2048 times /s

Instrument power supply : 2 AAA alkaline dry batteries

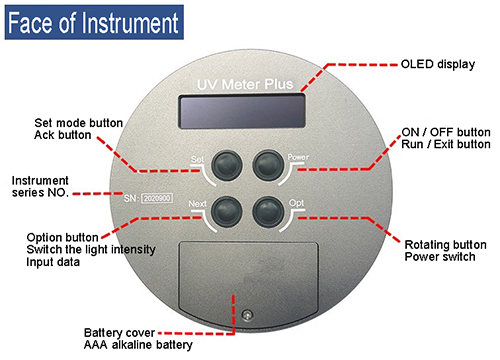

Display : white digital black background, 256*64 OLED LCD screen

Enclosure material : national standard aluminum

Instrument size : diameter 117mm * thickness 13mm

Instrument weight : net weight 218g, including package 700g

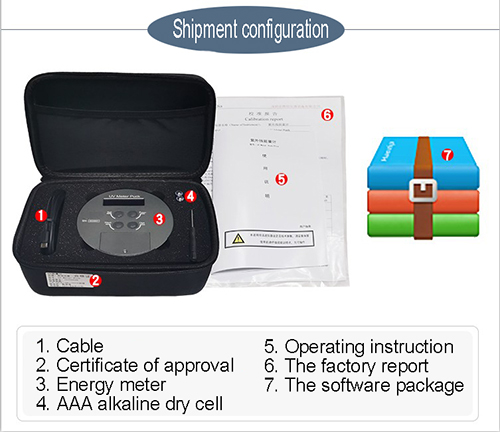

Packing : handbag

Handbag material : high density sponge on the inside, nylon sheath on the outside

Handbag size : 220*145*110mm

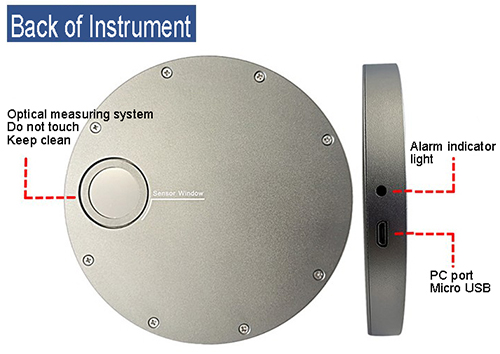

PC communication :

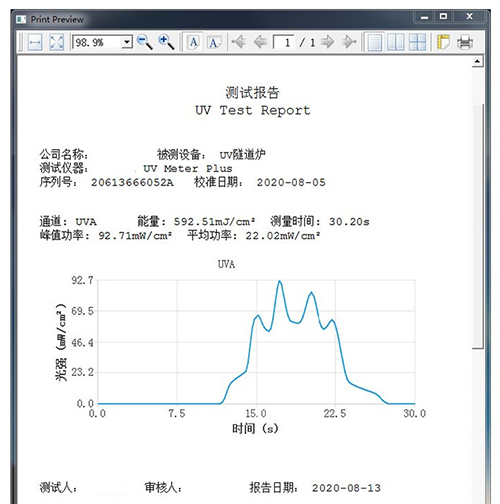

The instrument is equipped with a USB communication port, plug in the USB cable, open the special PC software, you can connect to the computer, read the data in the instrument. The software has the functions of parameters configuration, data reading, UV power graph table, printing and exporting PDF file report generation.
