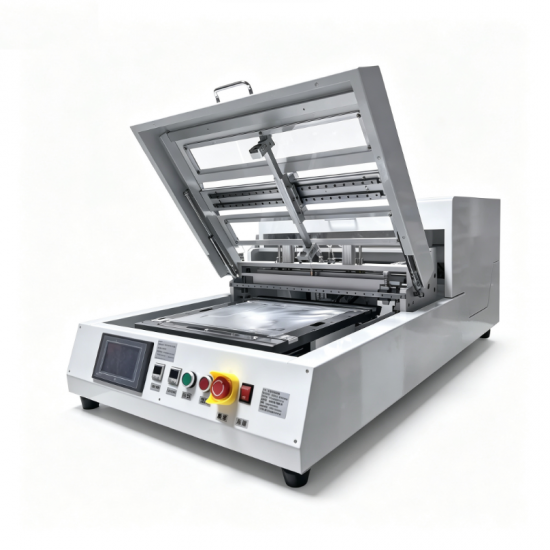

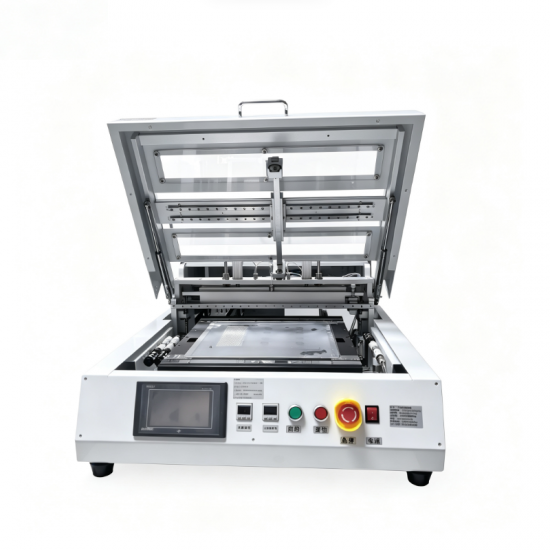

Ceramic Substrate Laminating Machine Square Frame Ring Semi-automatic Laminating Machine

Main Features of Wafer Mounter Machine:

The main body is made of stainless steel and aluminum alloy, with reliable quality and stable performance;

Support square iron ring film application;

Support simultaneous film application on multiple ceramic substrates;

Product positioning does not deviate;

Supports multiple thicknesses and adjustable heights;

High precision and stability of film application;

Easy to operate, easy to understand and master;

Beautiful appearance, sturdy and reliable, superior performance, and can greatly improve production efficiency.

Main Features of Square Laminating Machine:

The main body is made of stainless steel and aluminum alloy, with reliable quality and stable performance;

Support square iron ring film application;

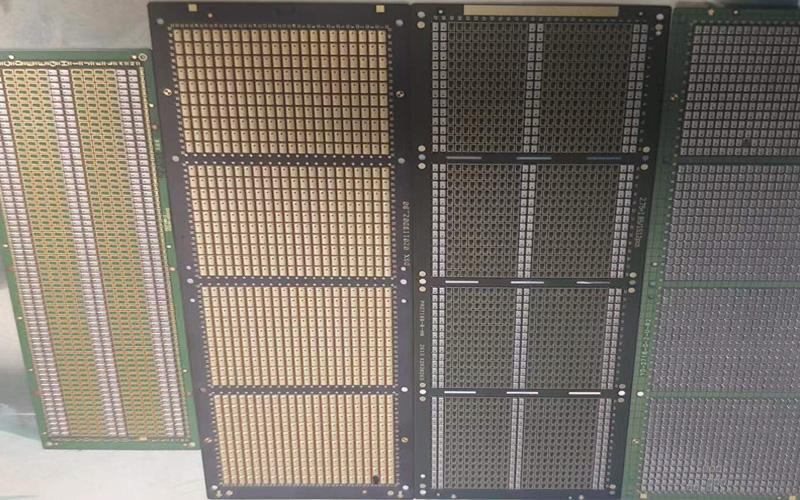

Support simultaneous film application on multiple ceramic substrates;

Product positioning does not deviate;

Supports multiple thicknesses and adjustable heights;

High precision and stability of film application;

Easy to operate, easy to understand and master;

Beautiful appearance, sturdy and reliable, superior performance, and can greatly improve production efficiency.

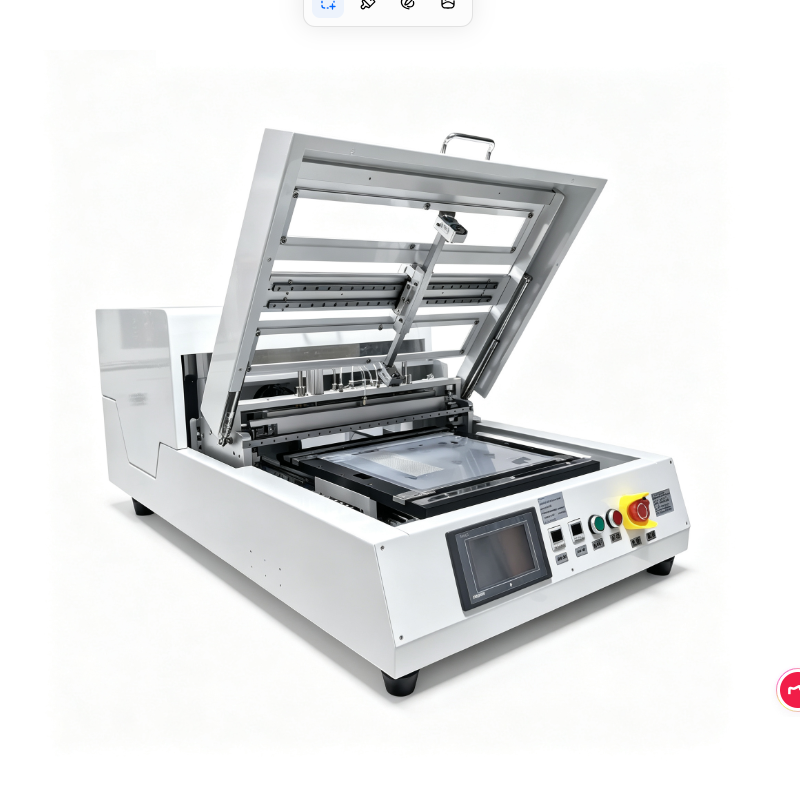

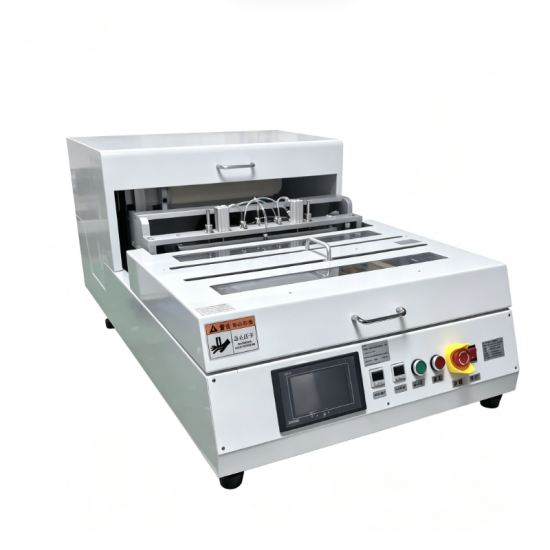

Ceramic Substrate Semi-automatic Laminating Machine:

1. Rated voltage AC-220V, supports customization of other 110-250V specifications

2 frequencies 50/60HZ

3 power<800W

4. Air pressure 0.5-0.6Mpa

5 machines weigh approximately 200kg

6 types of film: blue film/UV film

7. Film thickness: 0.05-0.2mm

Heating temperature of 8 plates: 0-70 ℃

9 automatic film application function

10 film cutting function manual rotary type

11 fragment rate of one in ten thousand

12. WPH>60PCS

13. The film should be free of particles, fragments, and any defects

Size 1358X 690 x483mm LX W H

14. Weight 170kg, with wooden box
