NICHIA NCSU276C 365nm UV LED is the similar with NCSU276A, but NCSU276C is with high intensity, more than 1059mW

model no. :
NCSU276C UV LED
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% before shipment
original region :
Japan

contact now Download

Product Details

SMD NCSU276C 365nm UV LED is pure UV light source, long service life, which is the similar with NCSU276A, but NCSU276C is with high intensity, more than 1059mW.

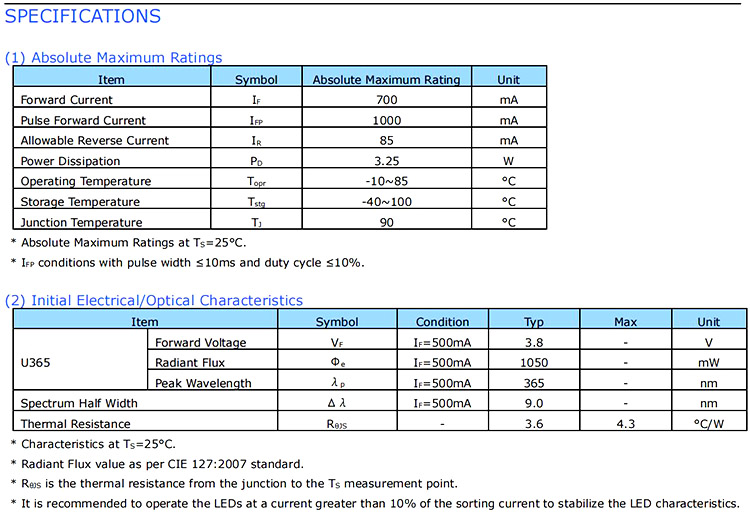

Parameters:

Brand: NICHIA

Place of origin: Japan

Type: NCSU276C

Peak wavelength: 365nm

Voltage: 3.8V

Current: 1000mA

Electric power: 3.25W

Lighting angle: 120 degrees

Lens material: silicone

Electrode material: gold

Package base: ceramic

Application:

Curing UV glue, bonding, fluorescence detection, etc..

NICHIA 365nm UV Lamp

NCSU276C UV LED Light Source

NCSU276C UV Light Emitting Diode
