LG 70mW 278nm UVC LED UV Disinfection Lamp LG 70mW 278nm UVC LED UV Disinfection Lamp

LG 70mW 278nm UVC LED UV Disinfection Lamp

High power 70mW UVC LED UV Disinfection Lamp for water treatment air purification, for laboratory test.

  • model no. :

    278nm UV LED

  • Brand:

    LG

  • port of dispatch :

    SHENZHEN

  • Payment :

    T/T 100% Before Shipment

  • original region :

    CHINA
contact now Download
Product Details

High power 70mW UVC LED UV Disinfection Lamp for water treatment air purification, for laboratory test.

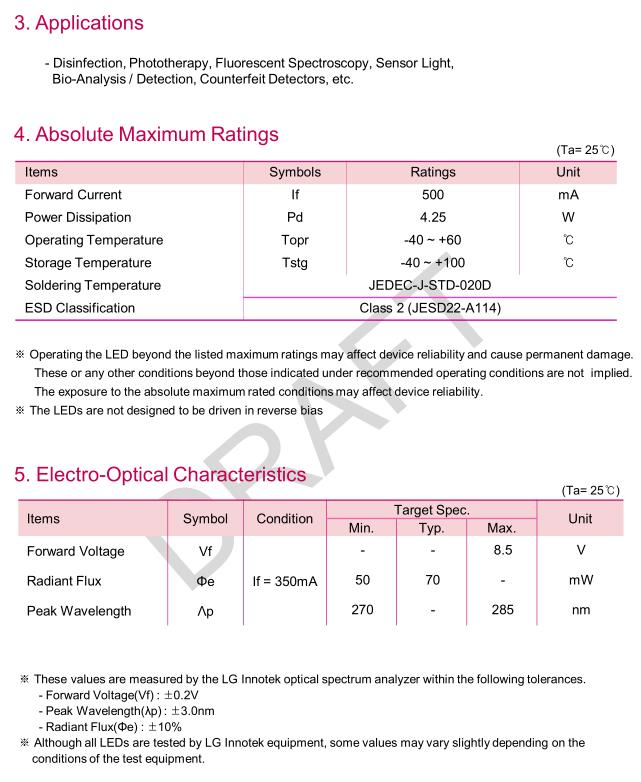

Parameters of LG UVC LED :

Model : LEUVA66H70HF00

Forward Current : 500mA

Forward Voltage : 8.5V

Radiant Flux : 70mW

Power Dissipation : 4.25W

Lighting Color(Peak Wavelength) : 270~285nm

Wavelength : 278nm

Lens : Quartz Glass Lens

Angle of Beam Spread : 120°

Soldering Methods : Pb-Free IR- Nitrogen Reflow Soldering

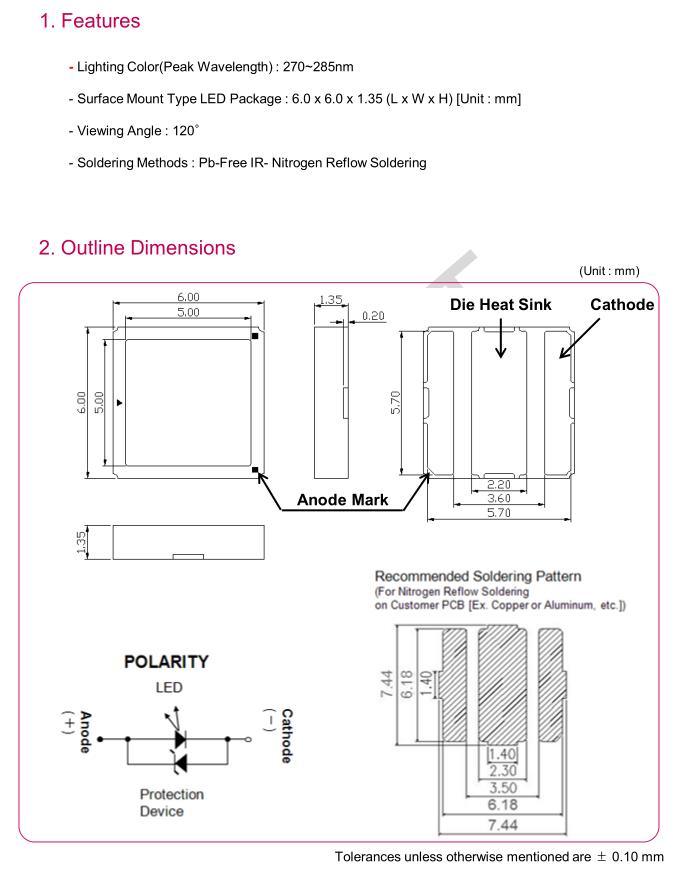

Surface Mount Type LED Package : 6.0 x 6.0 x 1.35 (L x W x H) [Unit : mm]


The applications of Low Power Consumption UVC LED :

1. Sterilization

2. Ozone Detection

3. Surface or water contamination Treatment

4. Protein Analysis

5. DNA Identification

6. Drug development

7. Optical sensing

8. Fluorescence Excitation


More details about UVC LED, please contact us : uvcure@uvspacelight.com (Jennifer)

Or Download


Quartz Glass Lens UVC LED Light Supplier


High Power UV Disinfection Lamp UV Light Beads


Specification of 278nm UVC LED :

70mW LG UVC LED

Deep UVC LED UV Disinfection

Deep UVC UV Disinfection

278nm UV Disinfection Lamp

High Reliability UVC LED Lighting

Quartz Glass Lens UVC Light Supplier

Related Tags : LG UVC LED Supplier Deep UVC LED UV Disinfection High Power UV Disinfection Lamp Quartz Glass Lens UVC LED Light
