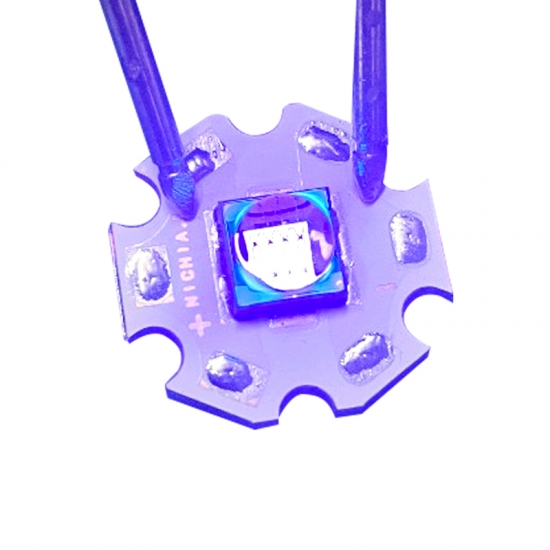

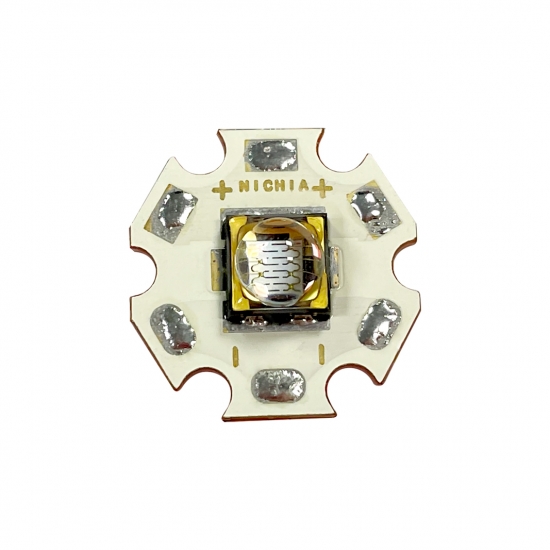

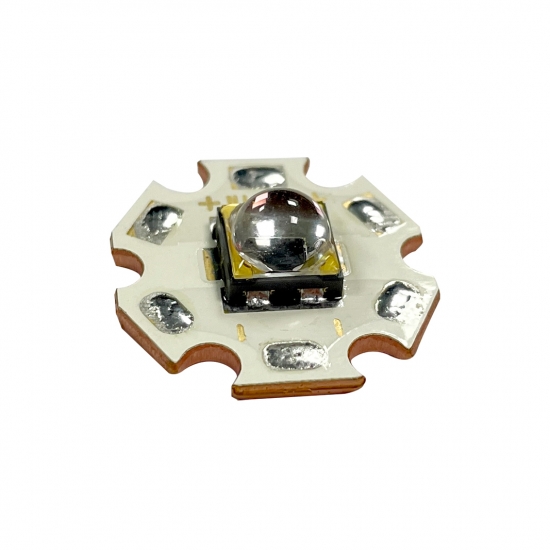

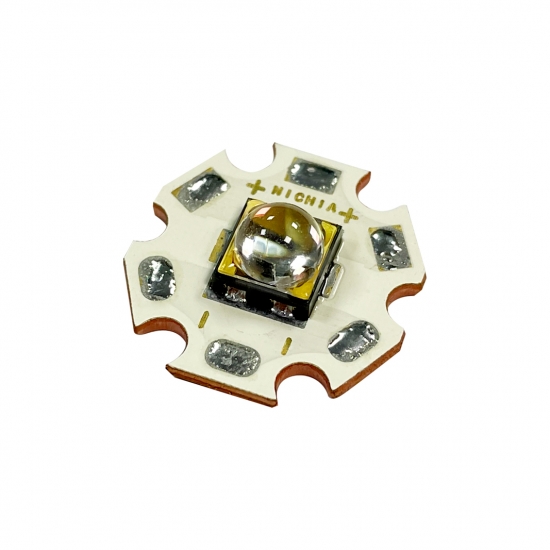

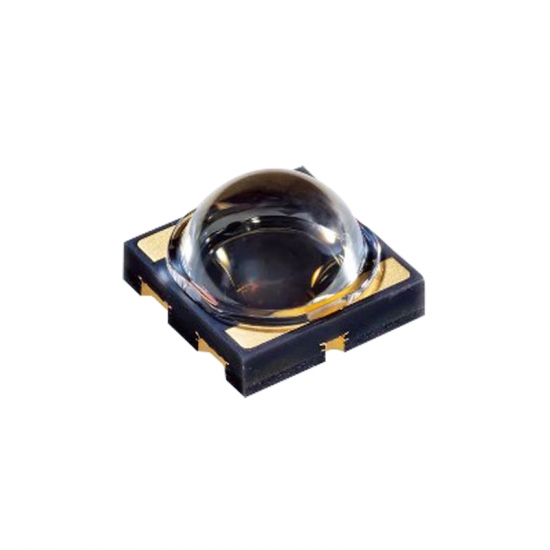

NICHIA 367nm UV Lamp Bead, naked LED power is 19.6W, is with spherical surface quartz glass lens
model no. :
NWSU333B-D4Brand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :

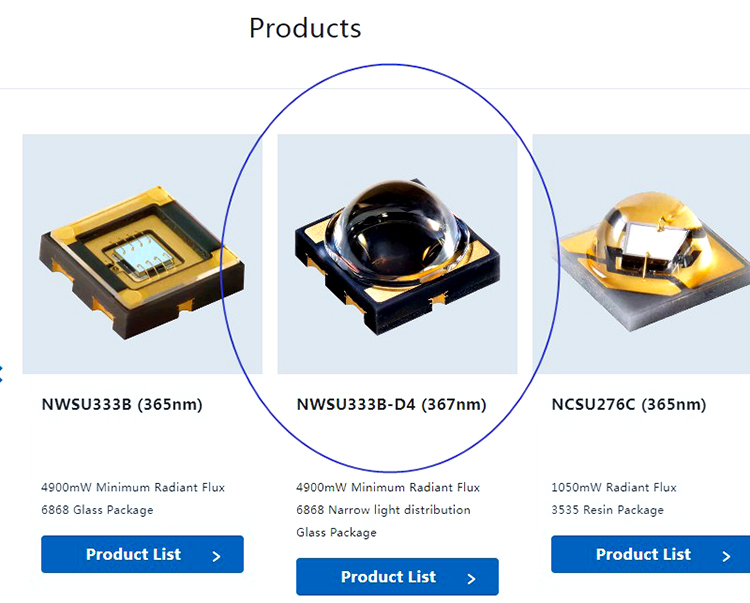

JapanOriginal imported NICHIA 367nm NWSU333B-D4 UV LED Light, naked LED power is 19.6W, is with spherical surface quartz glass lens.
Original imported NICHIA 365nm NWSU333B UV LED Lamp, is without spherical surface quartz glass lens.

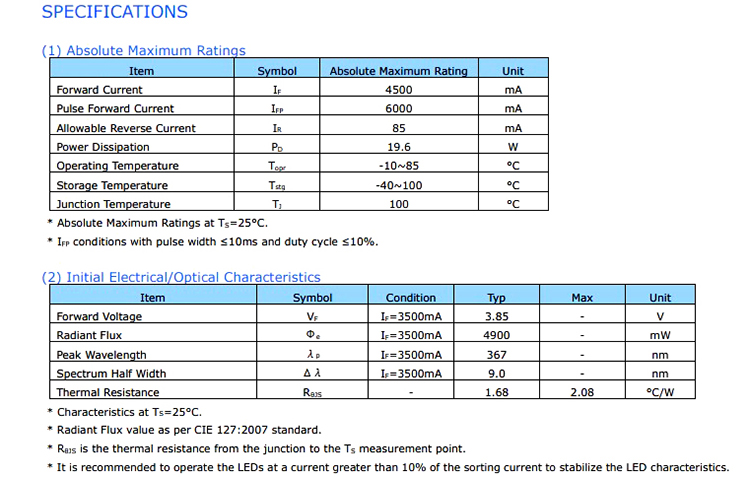

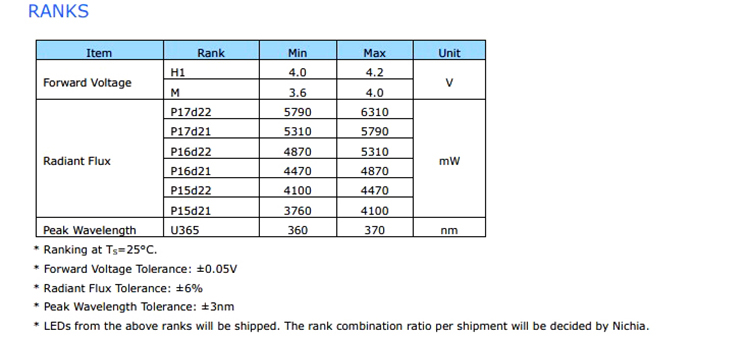

Parameters:
Brand: NICHIA
Type: NWSU333B-D4
Wavelength: 367nm
Power: 19.6W
Illuminance: 3500mA, 4900mW
Forward current: 4500mA
Voltage: mid M position 3.6-4V

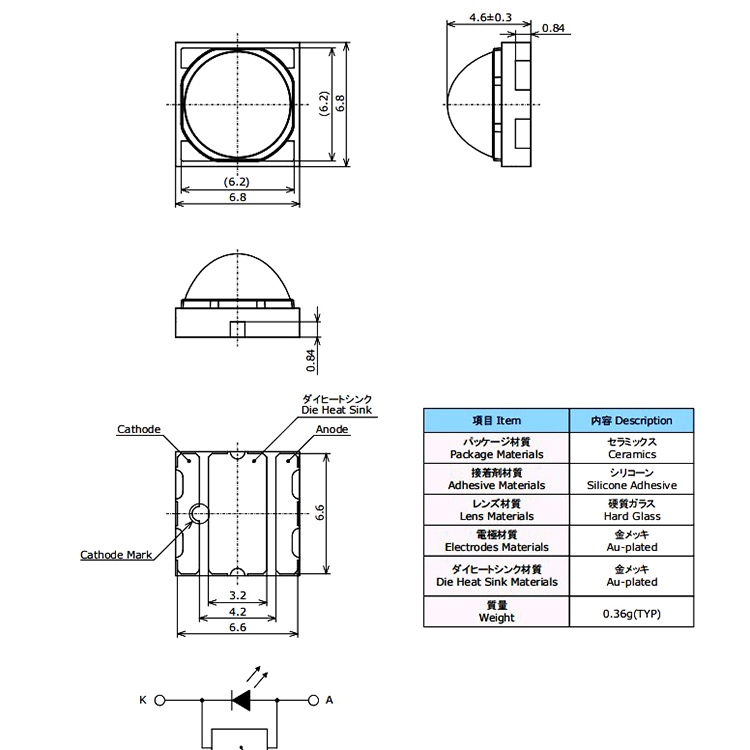

Size: 6.8*6.8*4.6mm
Lens material: quartz

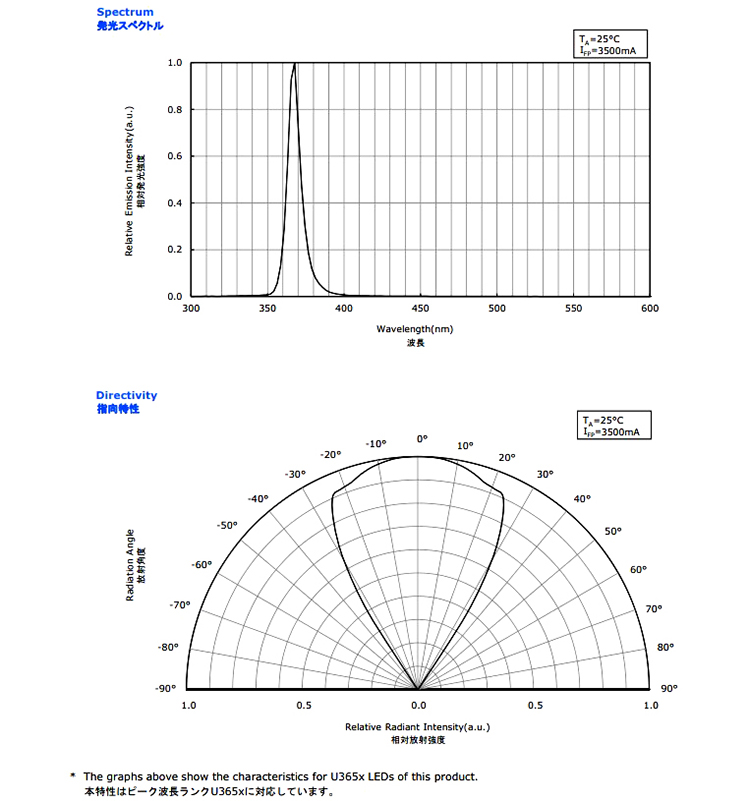

Lens angle: 60 degree
Application: curing, bonding, detection, fluorescence excitation, etc.
High Power 365nm UV LED Light Beads is used for UV curing, fluorescent spectroscopy, sensors and monitors, phototherapy, printing, coating, etc..
High Power 12W NICHIA UV Light Beads curing UV ink, UV glue, etc.
High power 70mW UVC LED UV Disinfection Lamp for water treatment air purification, for laboratory test.
NWSU333B LED UV Lamp Source is widely used in UV LED Curing Machine, because of its stable output, high uniformity, and save 80% electrical energy than mercury lamp and low energy consumption.
Deep Ultraviolet UVA+UVC lamp belt application field : pet environment, medical equipment, house disinfection, pharmaceutical manufacturing, laboratory
365nm 6868 4in1 LED UV Ink Curing Light Chips is used in UV curing, UV ink curing, photo-catalyst, sensor light, etc.
