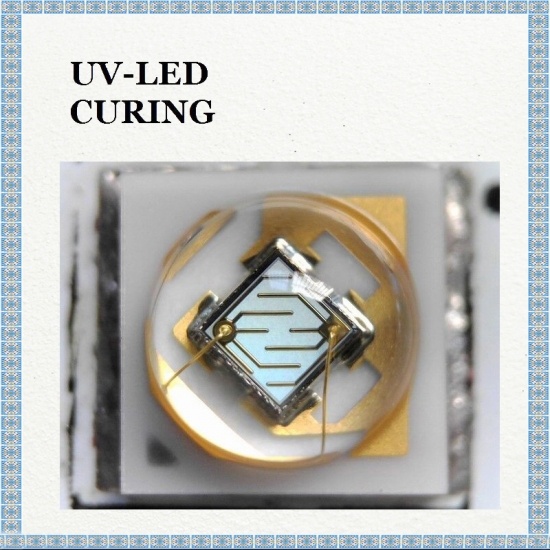

High Power NICHIA UV LED NCSU276A U365nm for UV Curing High Power NICHIA UV LED NCSU276A U365nm for UV Curing High Power NICHIA UV LED NCSU276A U365nm for UV Curing

High Power NICHIA UV LED NCSU276A U365nm for UV Curing

NICHIA UV LED NCSU276A U365nm requires unique and delicate production process. NICHIA places strict controls from wafer manufacturing to final inspection.

  • model no. :

    NCSU276A UV LED
  • Brand:

    DSXUV
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
  • Lead Time :

    The Same Day
Product Details

NICHIA UV LED NCSU276A U365nm plays a significant role in fluorescence penetrant flaw detection, air-conditioner refrigerant leak detection, engine lubricating oil leak detection, mineral UV observation, oil stain cleaning observation, etc..

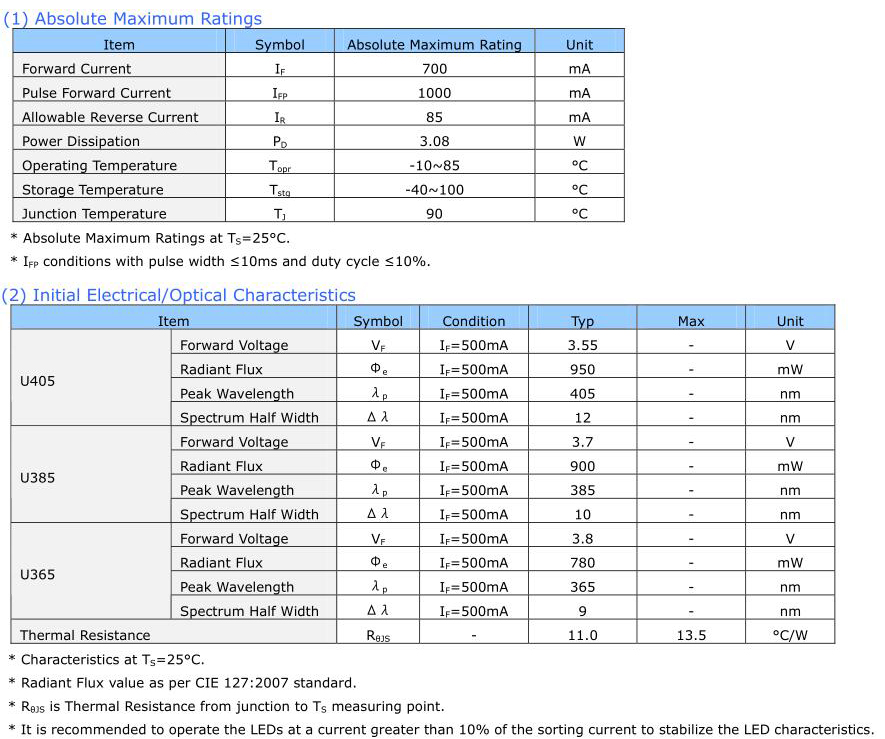

SPECIFICATIONS

NCSU276A

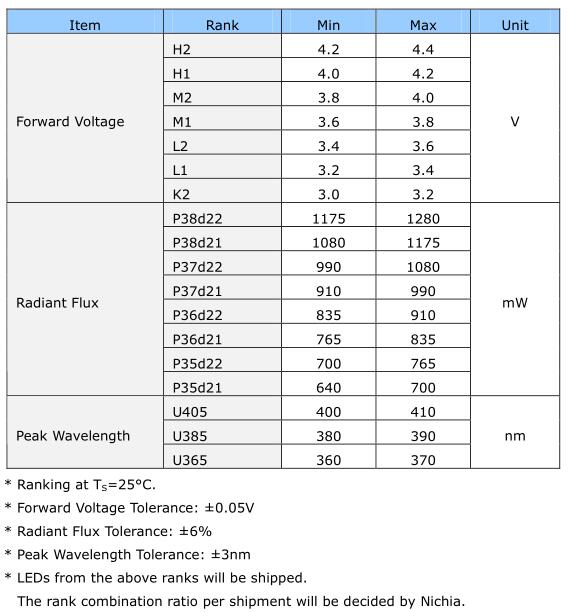

RANKS

NICHIA

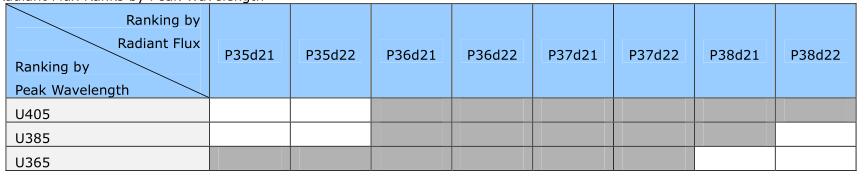

Radiant Flux Ranks by Peak Wavelength
NCSU276A U365nm

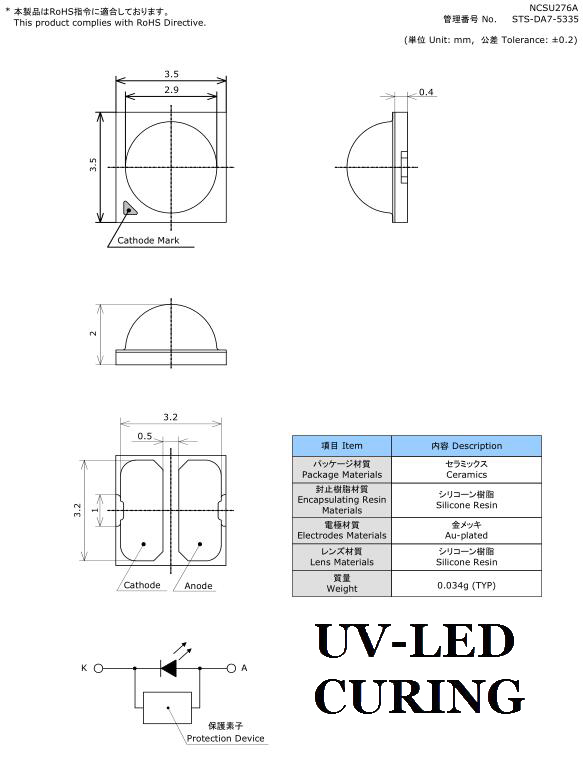

OUTLINE DIMENSIONS

UV LED NCSU276A

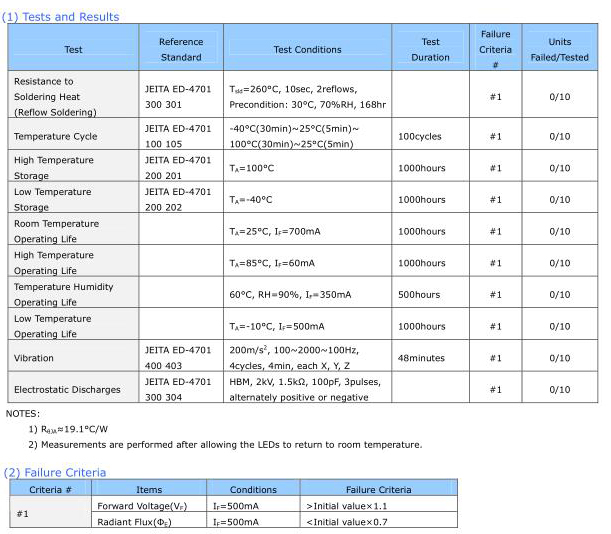

RELIABILITY

UV 365nm

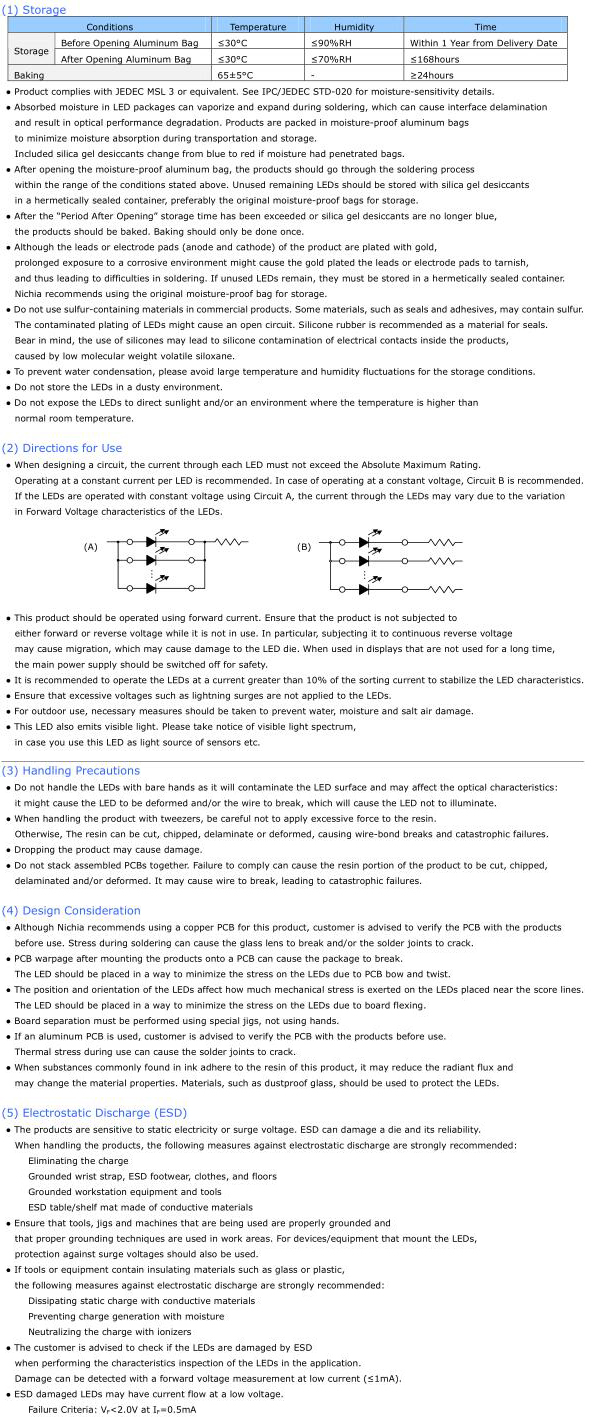

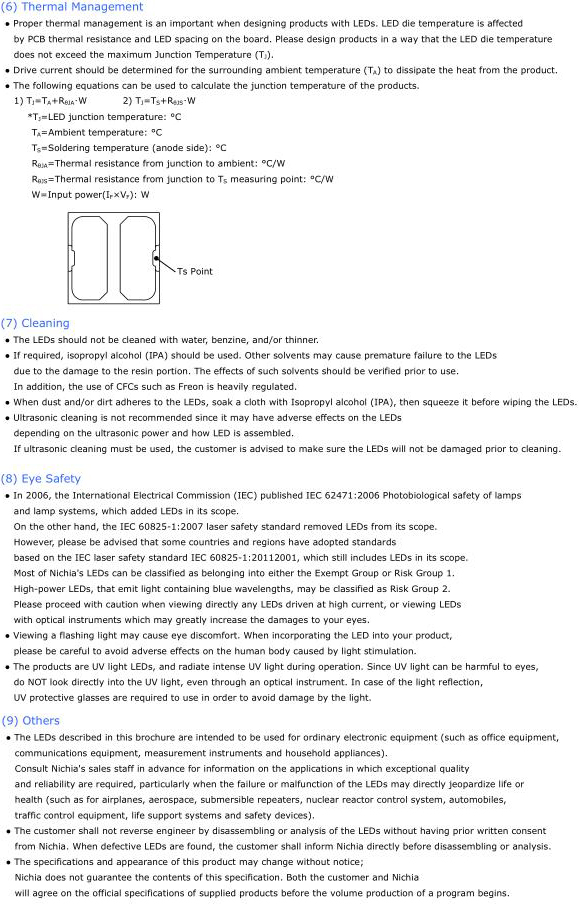

CAUTIONS

NICHIA 365nm


NICHIA NCSU276A

GET STARTED

You can contact us any way that is convenient for you. We are available 24/7 via, email or telephone.
