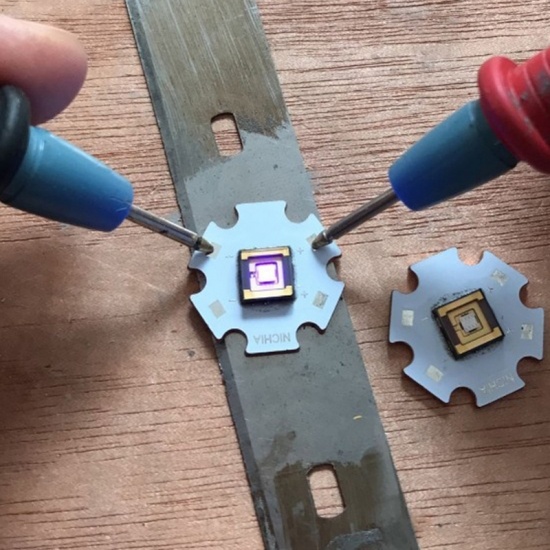

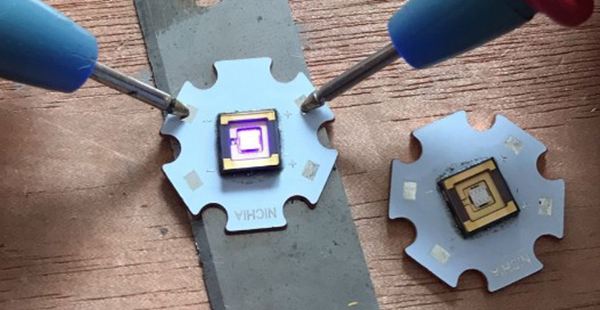

NICHIA NWSU333B 365nm UV LED Lamp Beads Curing Light Source

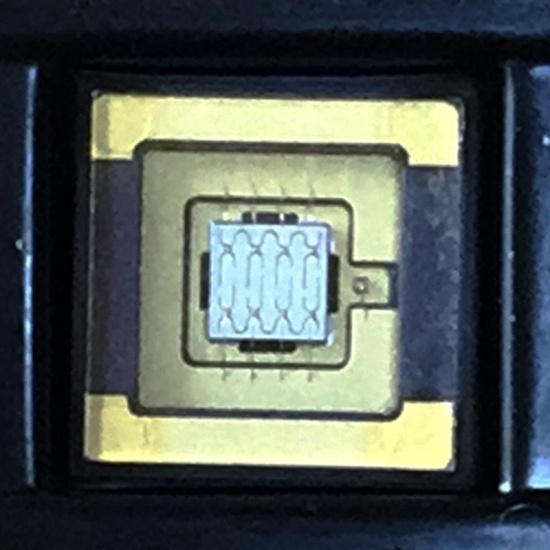

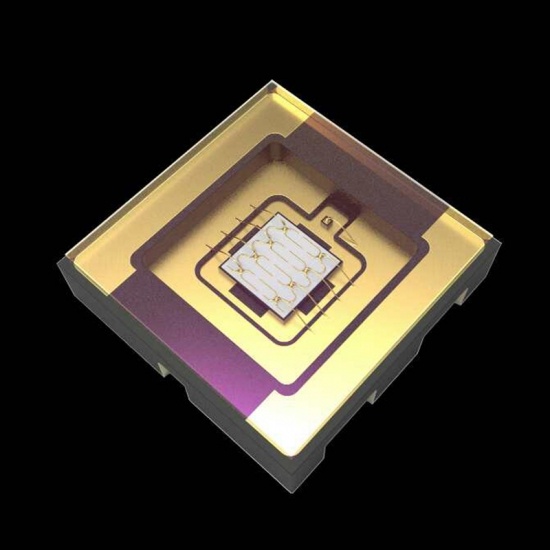

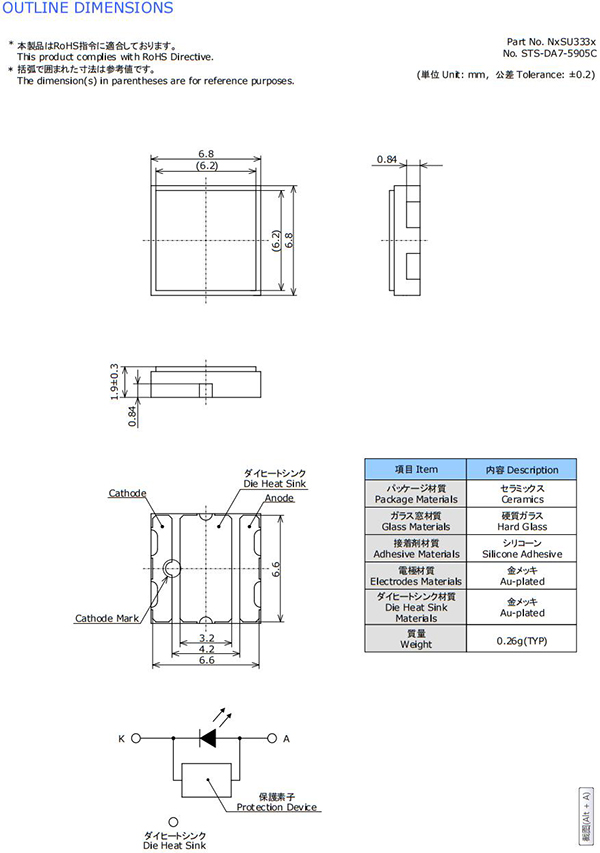

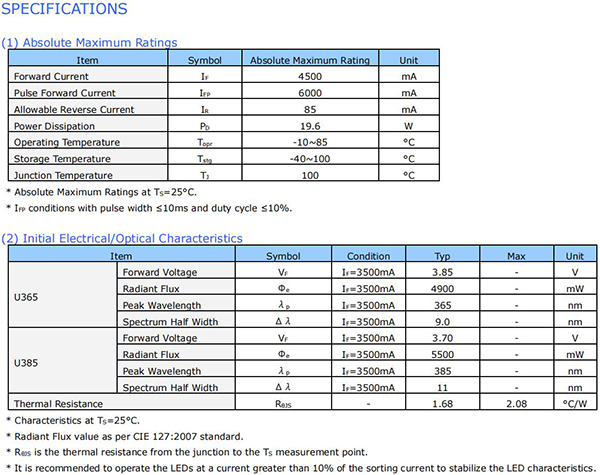

6868 dimension (suitable mounted on 20*1.6mm copper substrate PCB), 4500mA forward current, 3.8V forward voltage, NICHIA NWSU333B 365nm UV LED Light Chips is no mercury, no ozone and eco-friendly. Generally used in high power UV LED Solidification light source, UV LED Spot light Source, because of its low pollution, long life, and pure purple light.

UV 365nm Curing Application :

App 1 : fast curing UV adhesive for bonding glass and metal

App 2 : quick curing UV three-resistant paint on the circuit board

App 3 : fast curing UV ink printed on the shirt

App 4 : instantly curing UV glue for bonding disposable medical catheters, containers or other medical equipment

App 5 : instantly solidify the colored UV ink on the plastic mobile phone case

App 6 : instant curing bonding between the electronic paper book display surface and the protective film UV water glue

App 7 : instant solidify and bond all kinds of crystal, glass and other handicrafts, commemorative plaque, key chain UV glue, as well as UV varnish on wood surface

App 8 : instant curing UV adhesive for bonding all kinds of LCD glass and its gold pins, as well as curing UV sealant for the end of LCD

App 9 : instant uniform curing UV adhesive bonding all kinds of touch screen and screen protective film
