the mid-power NCSU434A UVC LED emitter produces a lower radiant output of 17.5mW at a drive current of 100mA and a forward voltage of 5.3V
model no. :
NCSU434ABrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :

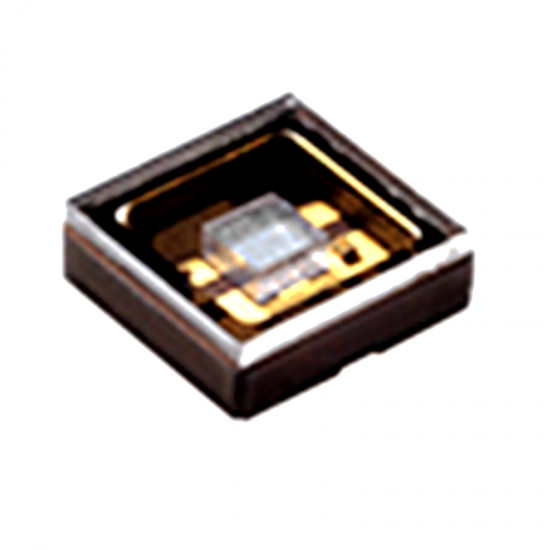

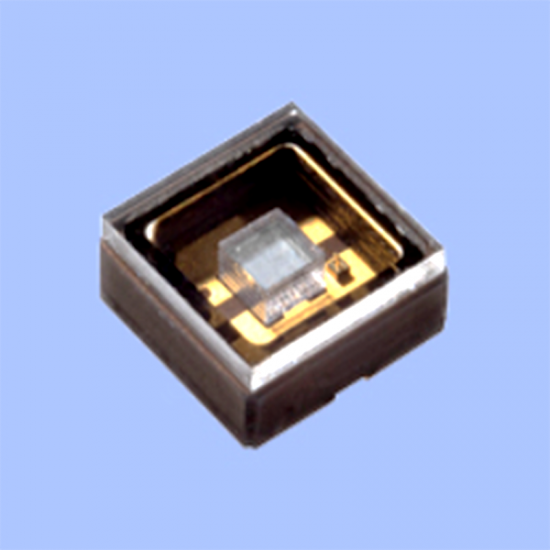

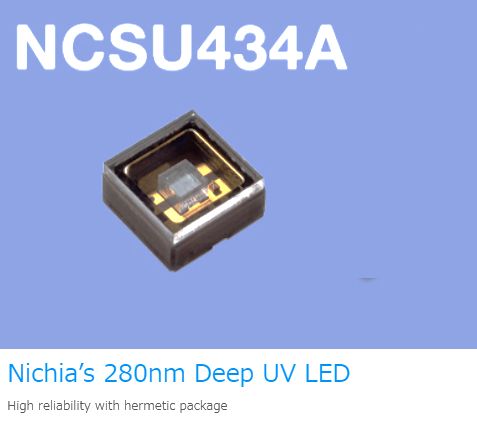

ChinaNICHIA has also launched the mid-power NCSU434A UVC LED emitter, which produces a lower radiant output of 17.5mW at a drive current of 100mA and a forward voltage of 5.3V. Smaller than the NCSU334B, the NCSU434A is supplied in a package which measures 3.5mm x 3.5mm x 1.7mm.
Applications of 280nm NCSU434A UVC UV LED Light Bead:
Industrial equipment
Water purifiers
HVAC systems
Features of NICHIA Deep UVC Ultraviolet LED:
10nm spectrum half-width
110°C maximum junction temperature
Package specifications:

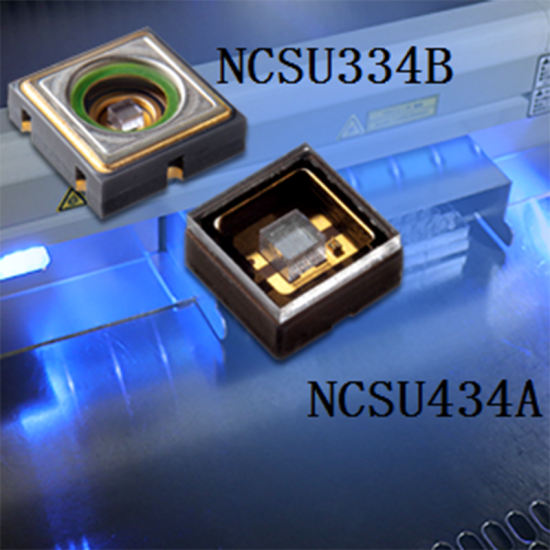

NCSU334B: 6.8mm x 6.8mm x 2.1mm surface-mount package

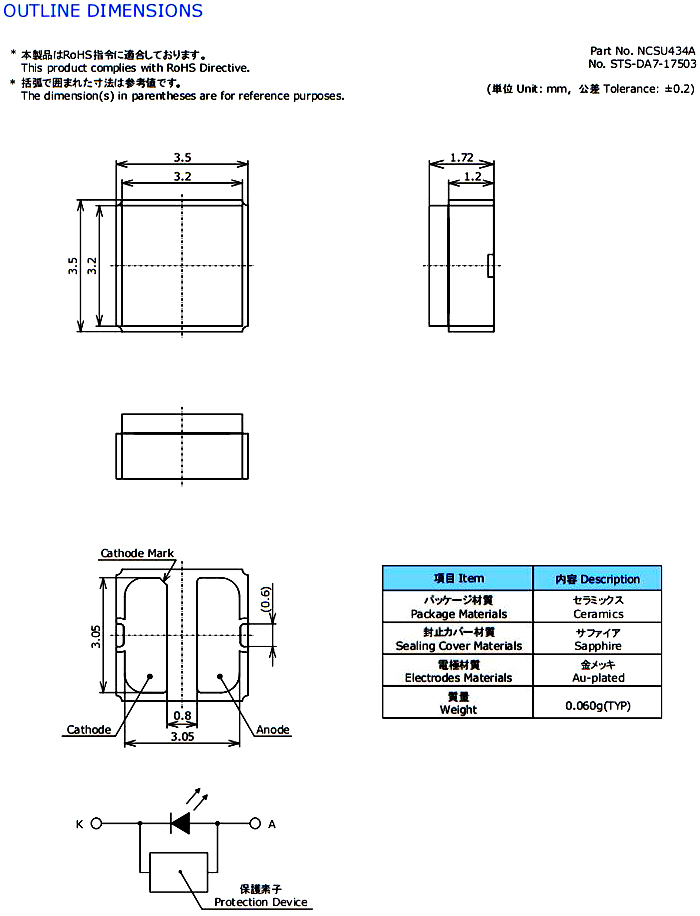

NCSU434A: 3.5mm x 3.5mm x 1.7mm surface-mount package
NICHIA NCSU434A UV LED Disinfection:
Ultraviolet light technology is a hot topic in the lighting industry today, as UV light is capable of disinfecting and killing biological impurities. In particular, UV-C LEDs are said to revolutionize sterilization and disinfection, improving the safety of health facilities specifically, which is a much needed development in the current pandemic situation.

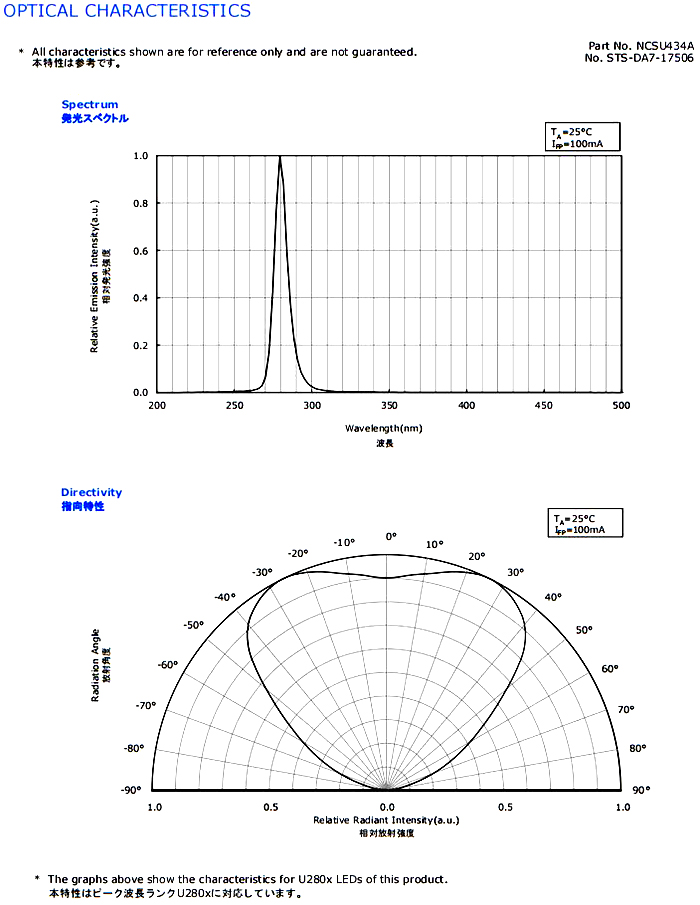

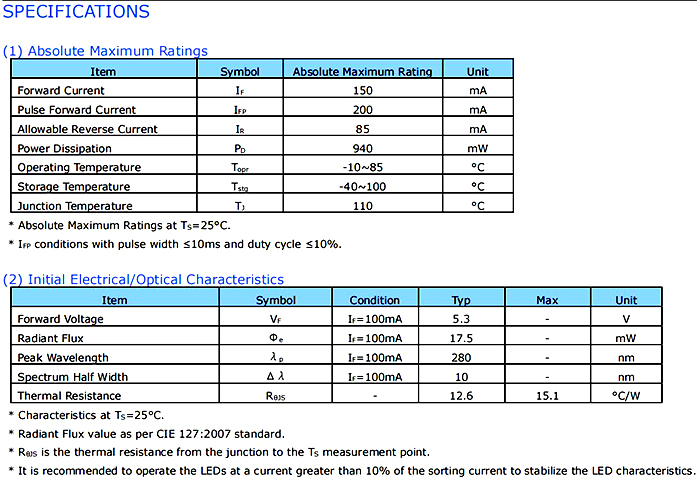

Peak Wavelength λp |
Typ.(nm) |
280 |
|
Radiant Flux ΦE |
Typ.(mW) |
62 |
17.5 |

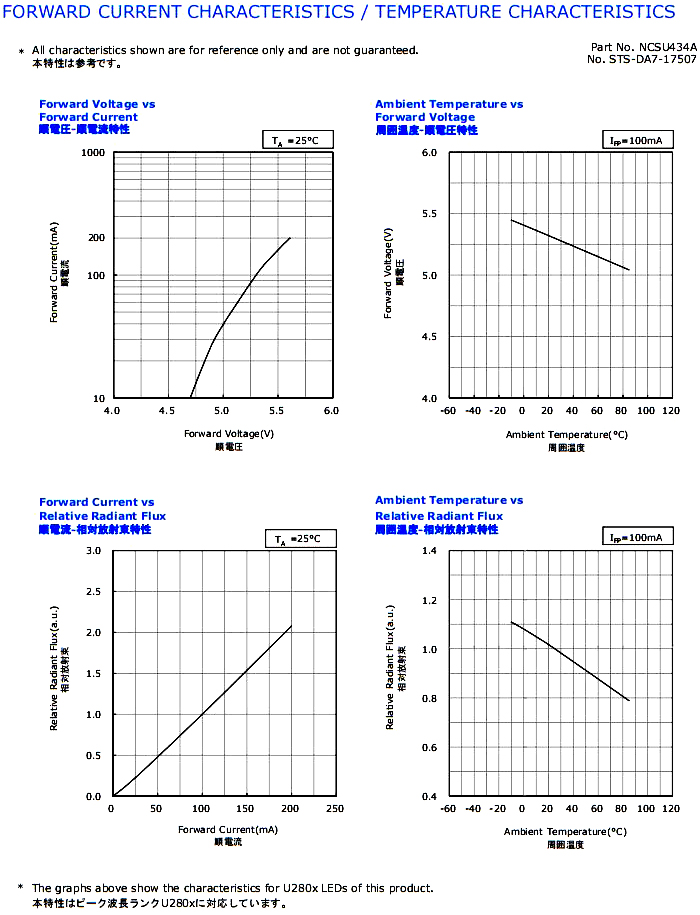

Forward Voltage VF |
Typ.(V) |
5.7 |
5.3 |
Max.(V) |
6.5 |
6.0 |
|
Directivity 2θ ½ |
Typ.(degree) |
110 |
|
IF |
(mA) |
350 |
100 |
Size |
LxWxH (mm) |
3.5x3.5x1.72 |
