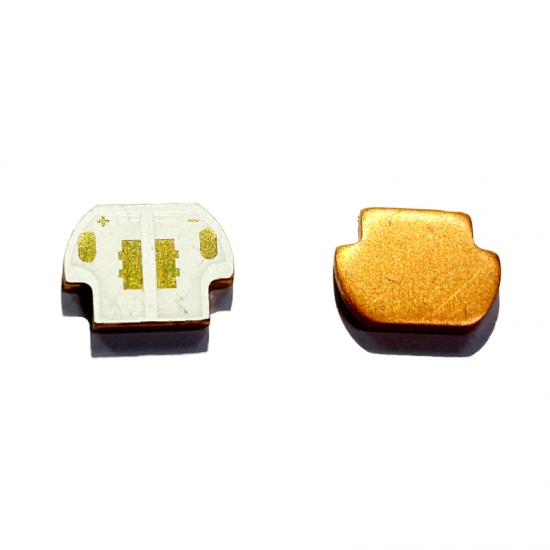

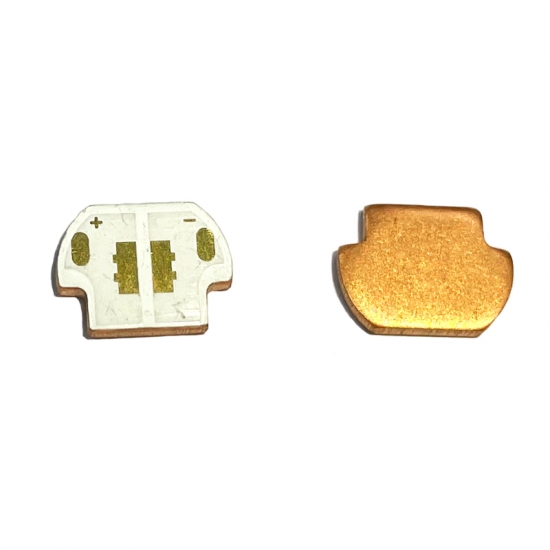

NICHIA 3535 LED Copper Base Plate Two Pins Copper Substrate

NICHIA 3535 LED Copper Base Plate Two Pins Copper Substrate

NICHIA 3535 LED Copper Base Plate Two Pins Copper Substrate

3535 size two pieces of LED special copper substrate, like NVSU233B, NVSU233B-D4, etc.

model no. :
NICHIA LED Substrate
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% before shipment
original region :
China

contact now

Product Details

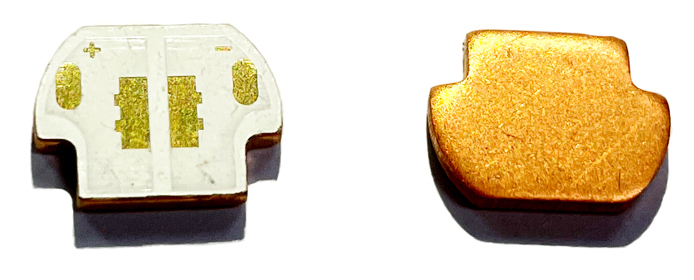

3535 size two pieces of LED special copper substrate, NICHIA 3535 LED Copper Base Plate, copper material for LED to provide good heat dissipation effect.

Parameters:

Base material: copper substrate

Thickness: 1.5mm (±0.1)

Surface treatment: zedoary / immersion Au

Copper foil: 10Z

Ink: white oil

Dimension: L10*W7.5mm

Name: NICHIA 3535 LED Light Source Copper Base Plate

NICHIA LED Copper Base Plate
