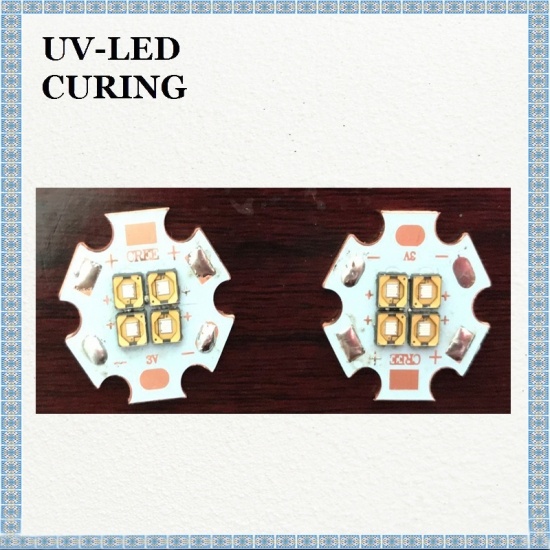

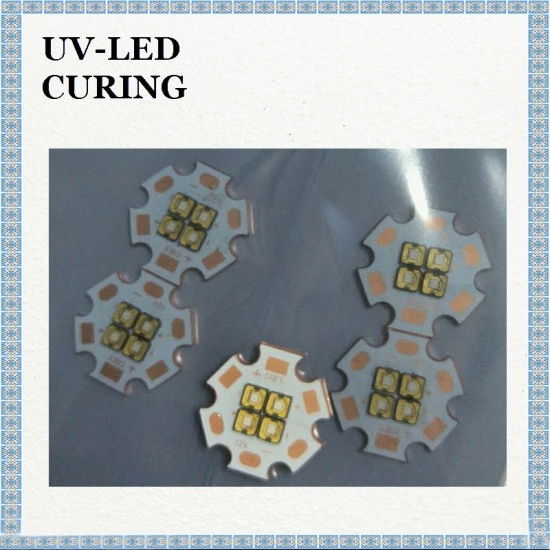

CUN6GF1A 365nm 4 series 12V copper specifications: 20mm *1.5mm High brightness curing.
model no. :
CUN6GF1A 365nm Copper SbustrateBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINAHigh power UV LED series are designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CUN6GF1A(CA3535) NUV LED is ideal UV light source for curing, printing, and detecting applications.
Features:
Super high power output
Designed for high
current operation
Low thermal resistance
SMT solderable
Lead Free product
RoHS compliant
Applications:
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection/Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil leak Detection
Parameters
Brand : SVC
Model:CUN6GF1A
Origin: Korea imported
Package size: 3.5*3.5mm
Peak wavelength: 365nm
Radiated power: greater than 1150mW
Power consumption: 5W
Voltage: 3.7V
Current: 1400mA
Light output angle: 115 degrees
Package material: quartz glass flat angle window

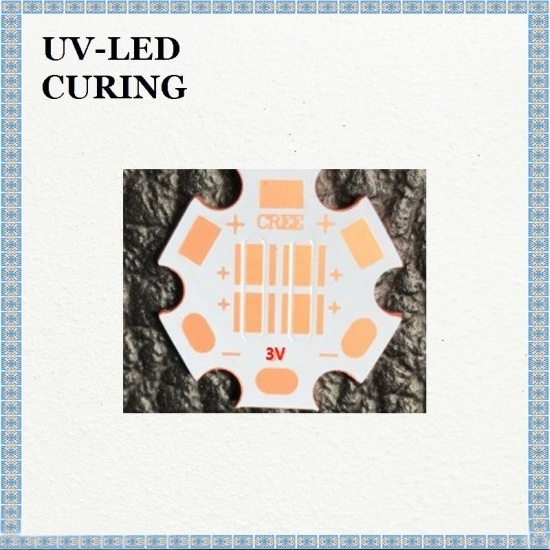

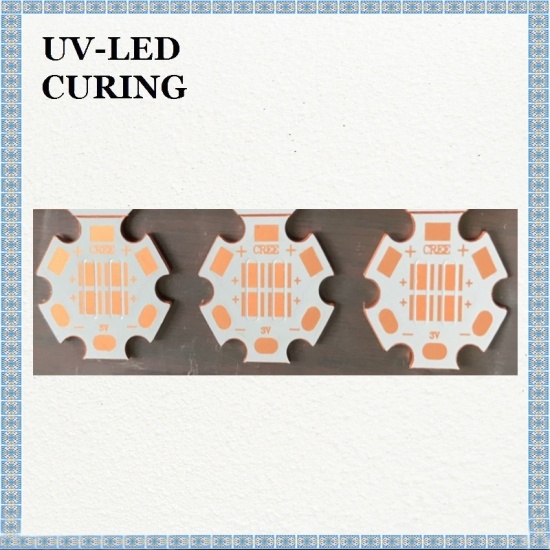

Copper specifications: 20mm diameter * 1.5mm thick ------ Click to view other copper specifications
This type of 16mm Printed Circuit Board is suitable for 2835 LED light beads.
This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.
NICHIA's two new lamp beads NCSU276A and NVSU233A can be equipped with a dedicated copper substrate. Nissan 3535 is tailor-made for copper substrates, for flshlight,laboratory,etc..
The NCSU033B Thermoelectric Separation Copper Substrate is a dedicated substrate for the UV LED spot light irradiation head.
NICHIA dedicated copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm.
Thermoelectric separation of copper substrate, diameter 16mm, thickness 1.6mm, suitable for UV Flashlight of SVC and LG3535 Light. Attention: not suitable for NICHIA.
