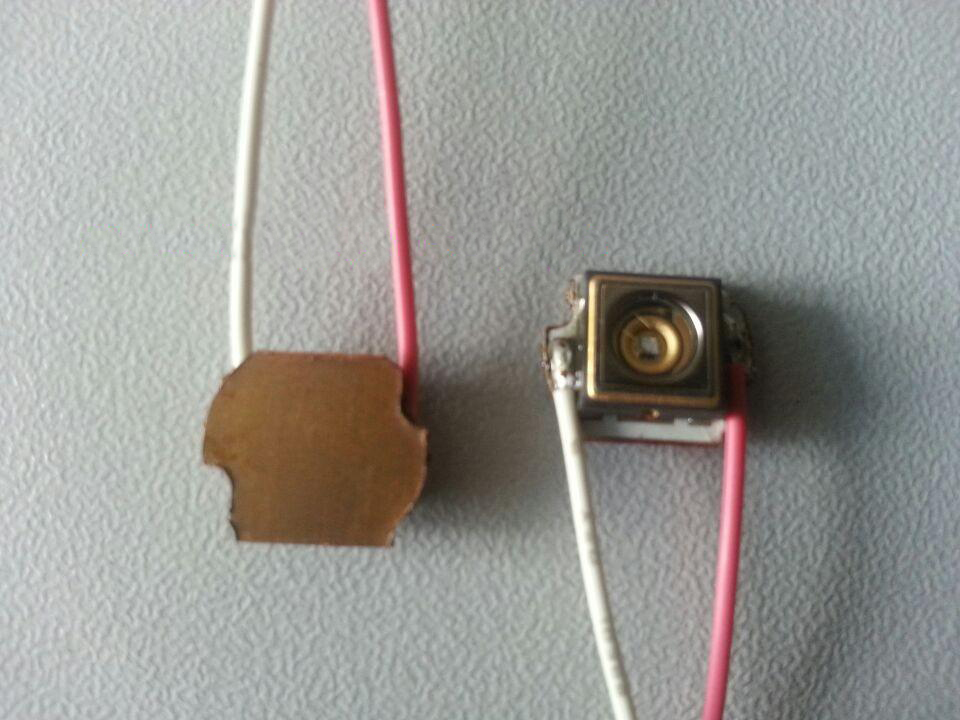

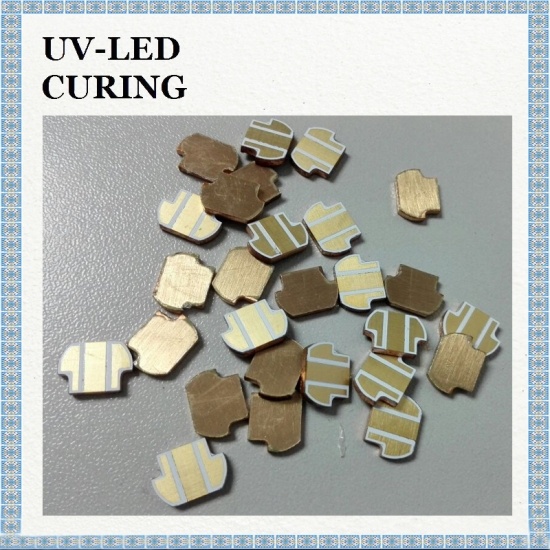

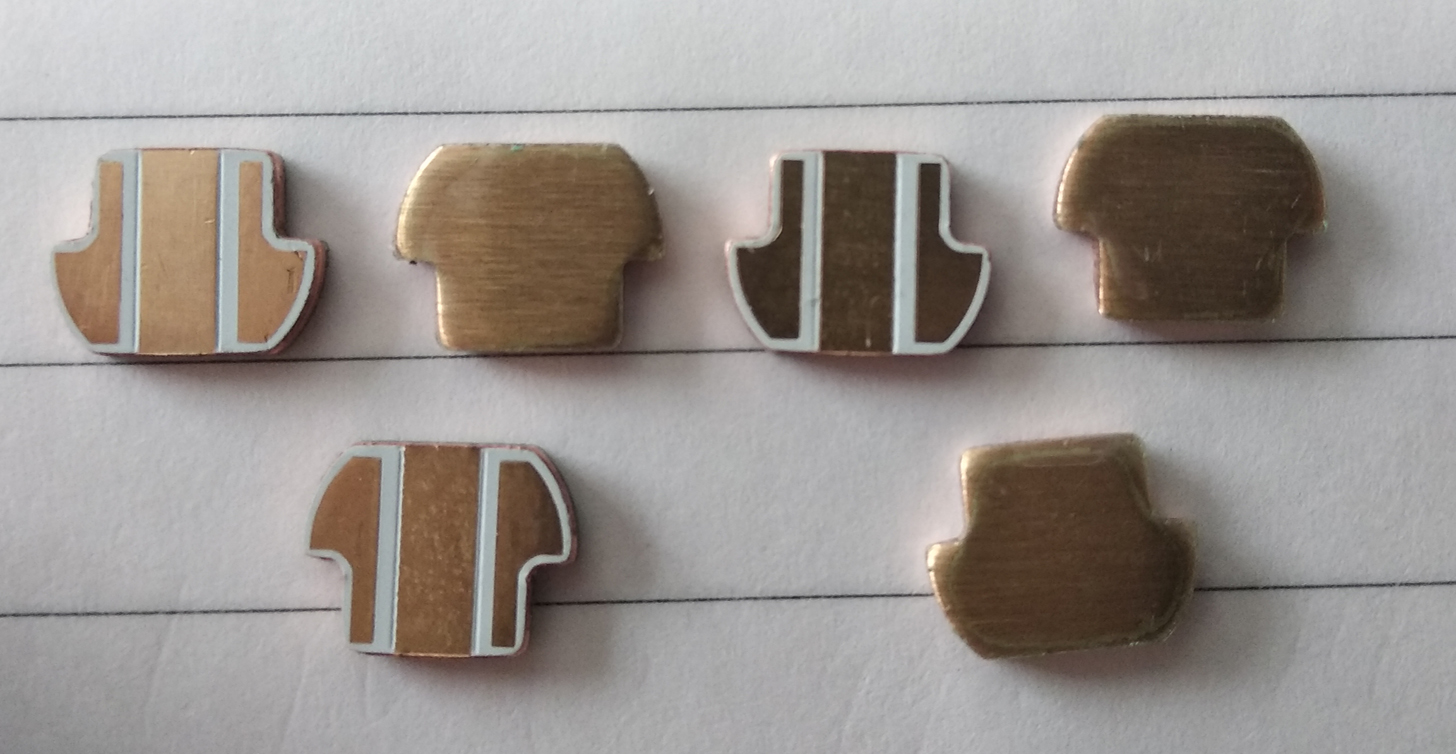

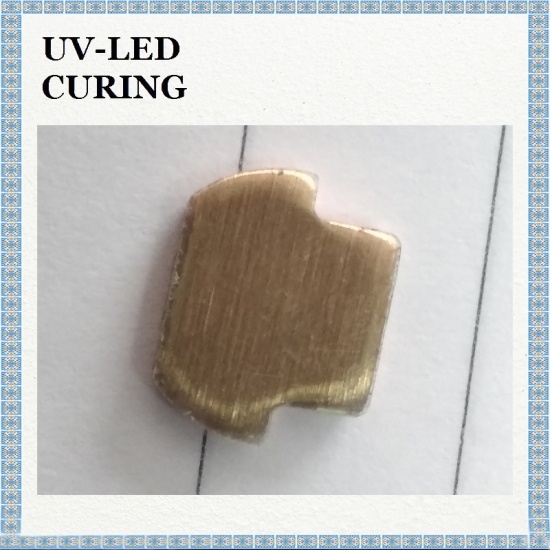

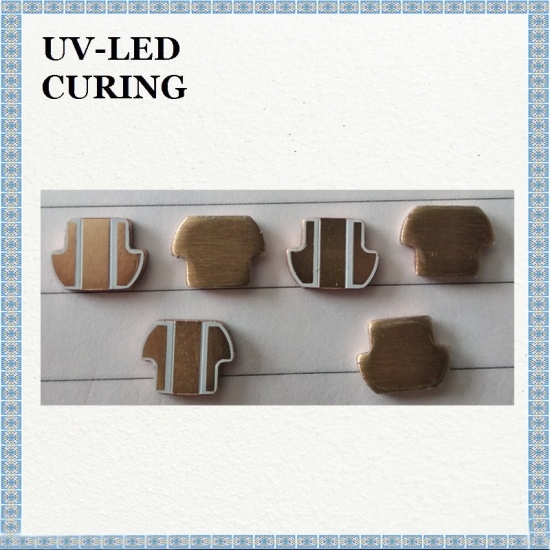

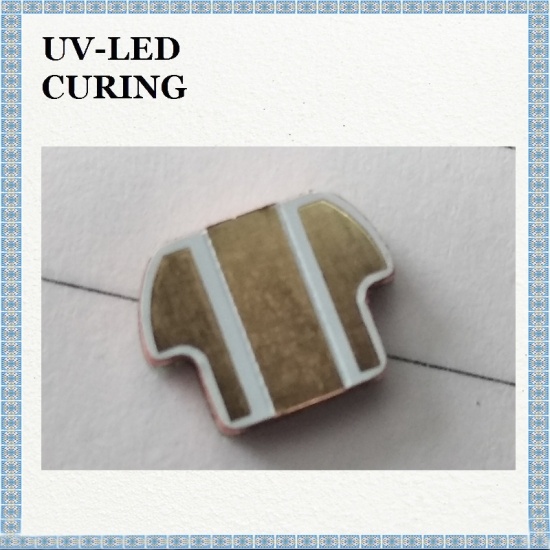

The NCSU033B Thermoelectric Separation Copper Substrate is a dedicated substrate for the UV LED spot light irradiation head.
model no. :
NCSU033B Copper SubstrateBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINANCSU033B Copper Substrate also is called Japan NICHIA UV 365nm high power UV LED copper substrate.
Parameters
Custom processing: Yes
Category: LED
Model Number: NCSU033B
Brand: Japan NICHIA
Package: SMD
Gold wire material: gold wire
Chip Brand: Japan NICHIA
Colloid brand: Japan Nichia
Color: Purple
Shape: square piece
Rated voltage: 4(V)
Rated current: 700 (mA)
Single chip power: 540 (W)
Warranty time: 3 years
Whether to provide test report: Yes
Whether to provide technical support: Yes
Whether passed ISO certification: Yes
Whether to pass ROHS certification: Yes
Whether the stock in stock: Yes
Size of Light Beads: 6.8*6.8mm
This type of 16mm Printed Circuit Board is suitable for 2835 LED light beads.
This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.
NICHIA's two new lamp beads NCSU276A and NVSU233A can be equipped with a dedicated copper substrate. Nissan 3535 is tailor-made for copper substrates, for flshlight,laboratory,etc..
CUN6GF1A 365nm 4 series 12V copper specifications: 20mm *1.5mm High brightness curing.
NICHIA dedicated copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm.
Thermoelectric separation of copper substrate, diameter 16mm, thickness 1.6mm, suitable for UV Flashlight of SVC and LG3535 Light. Attention: not suitable for NICHIA.
