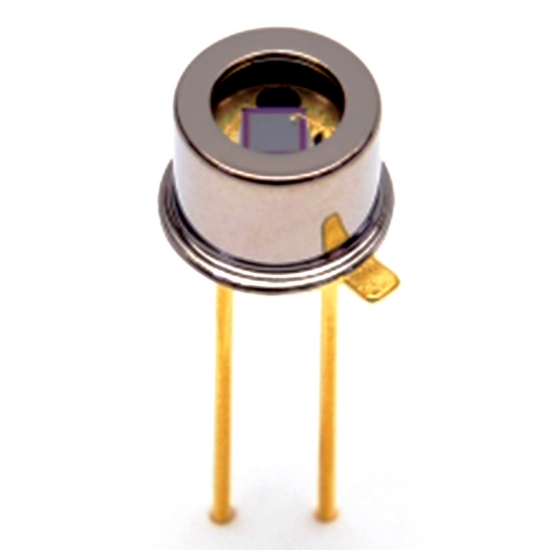

HAMAMATSU Silicon Light Diode S1226-18BU is Si photodiodes encapsulated in a TO-18 package with a UV glass window.
model no. :
Si Photo-Diode S1226-18BUBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :
JapanHAMAMATSU S1226-18BU and S1336-18BU are Si photodiodes encapsulated in a TO-18 package with a UV glass window. These photodiodes have high sensitivity from the UV to near infrared range and operate reliably when detecting high power UV radiation (such as from mercury lamps)
Features of S1226-18BU Silicon Photodiode :
- High UV sensitivity from the UV to near infrared range
- TO-18 package with UV glass window
- Suppressed near IR sensitivity
- Low dark current
- High reliability versus high power UV radiation
Applications of HAMAMATSU Si Photodiodes :
- Mercury lamp (λ=254nm) monitor
- Excimer laser (KrF: λ=248nm) monitor
- Other UV detection

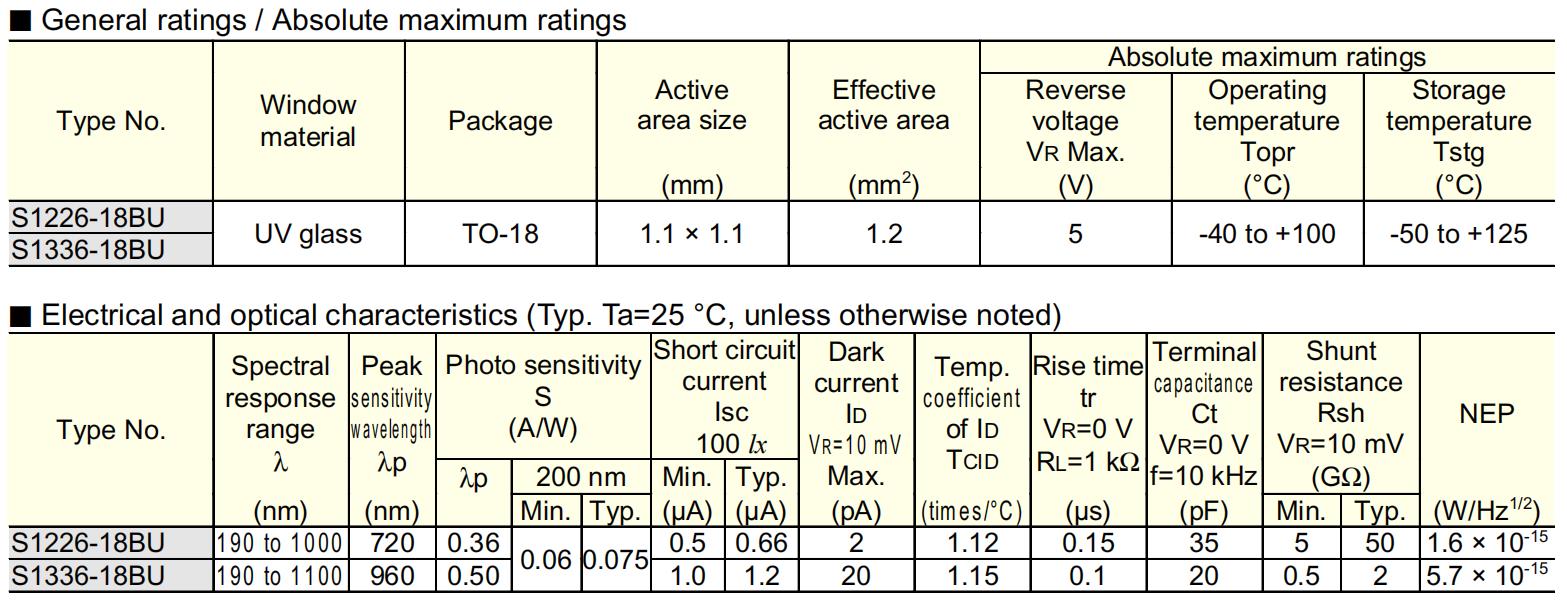

Specifications of S1226-18BU UV Sensitive Photodiode :
Photosensitive Area |
1.1*1.1 mm |
Number of Elements |
1 |
Package |
Metal |
Package Category |

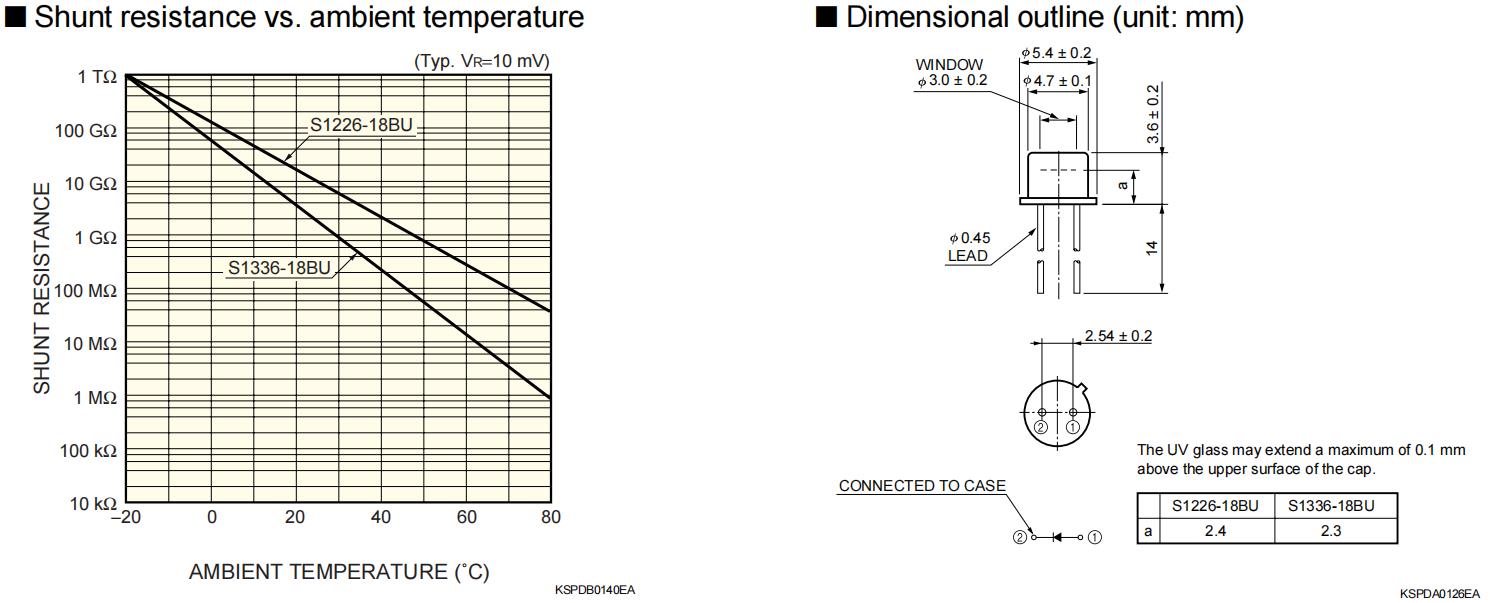

TO-18 |
Cooling |
Non-cooled |
Reverse Voltage (max.) |
5V |

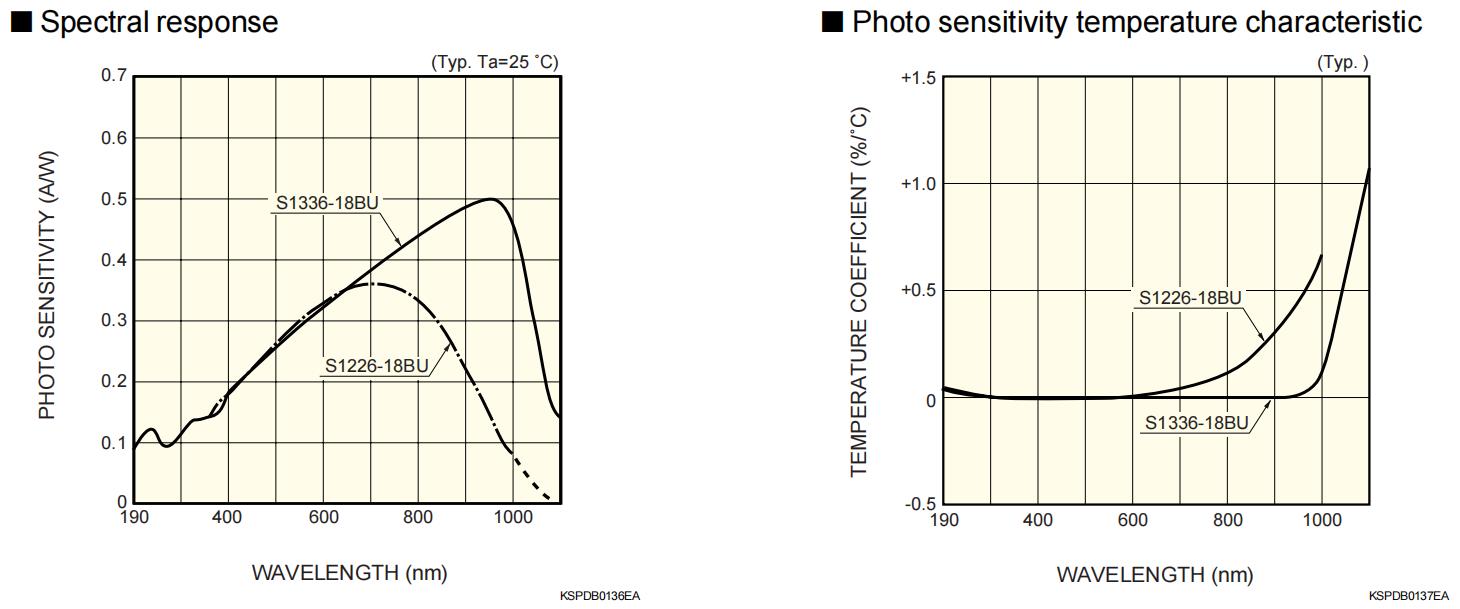

Spectral Response Range |
190 to 1000 nm |

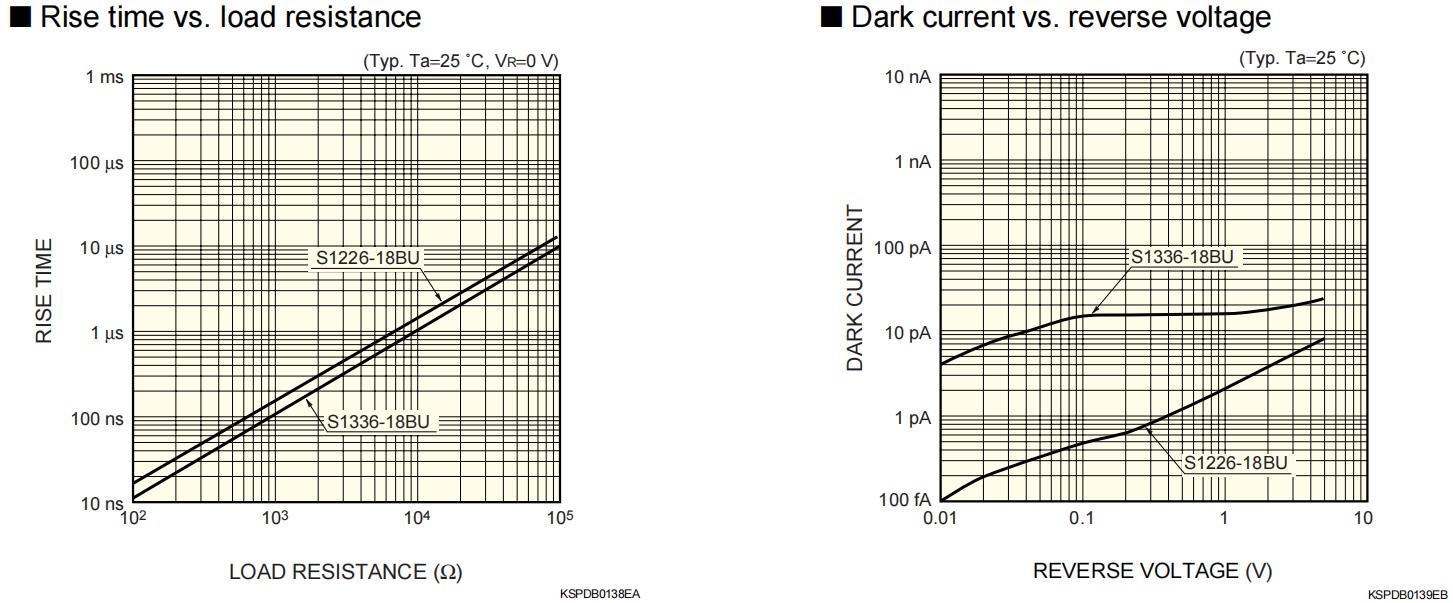

Rise Time (typ.) |
0.15 μs |
Photo-Sensitivity (typ.) |
0.36 A/W |
Dark Current (max.) |
2 pA |
Peak Sensitivity Wavelength (typ.) |
720nm |
Noise Equivalent Power (typ.) |
1.6*10-15W/Hz 1/2 |
Terminal Capacitance (typ.) |
35 pF |
Measurement Condition |
Ta=25℃, Typ., Photosensitivity: λ=720nm, Dark current: VR=10mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
