NICHIA dedicated copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm.
model no. :
NICHIA Dedicated Copper SubstrateBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :

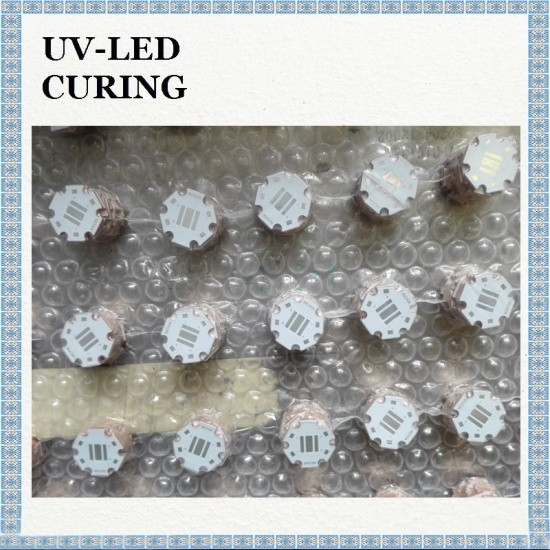

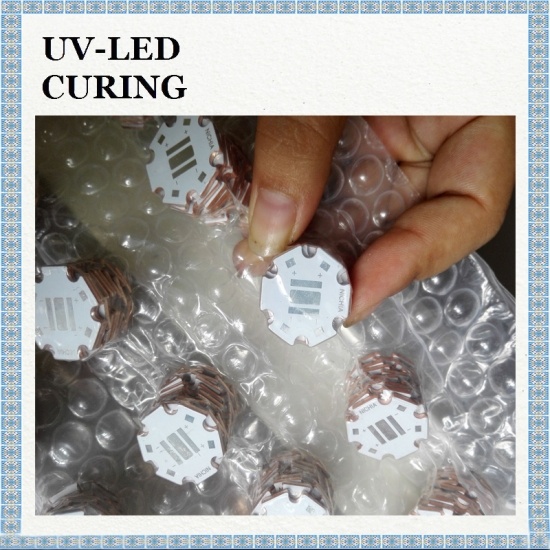

CHINAMany customers asked me to use NICHIA's dedicated copper substrate. Because it was replaced with other baseboards, and the result was that it was easy to cold solder joint in the past. Now you do not worry about the problem of cold soldering, it is available on NICHIA's dedicated copper substrate and there are a lot of inventory in themarket. NICHIANCSU033B\NC4U133B\NVSU333A models, domestic spot stock.
Nichia NICHIA special copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm

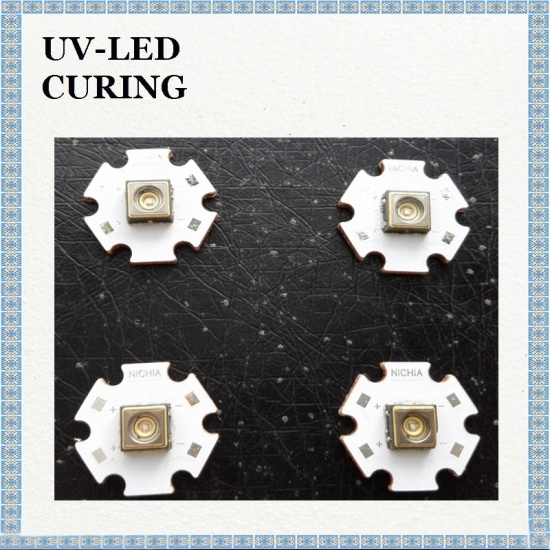

This model of copper base plate is suitable for: NICHIA Japan NCSU033B, NC4U133A, NC4U133B, NVSU333A.
This copper substrate can be used for laboratory testing, lighting a single lamp beads test.
UV LED flashlight applications:
Fluorescent penetrant inspection,
Fluorescent magnetic particle inspection,
Fluorescence leak detection,
Criminal investigation,
UV curing,
Archaeological research,
Mineral testing,
Jewelry appraisal and so on.
This type of 16mm Printed Circuit Board is suitable for 2835 LED light beads.
This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.
NICHIA's two new lamp beads NCSU276A and NVSU233A can be equipped with a dedicated copper substrate. Nissan 3535 is tailor-made for copper substrates, for flshlight,laboratory,etc..

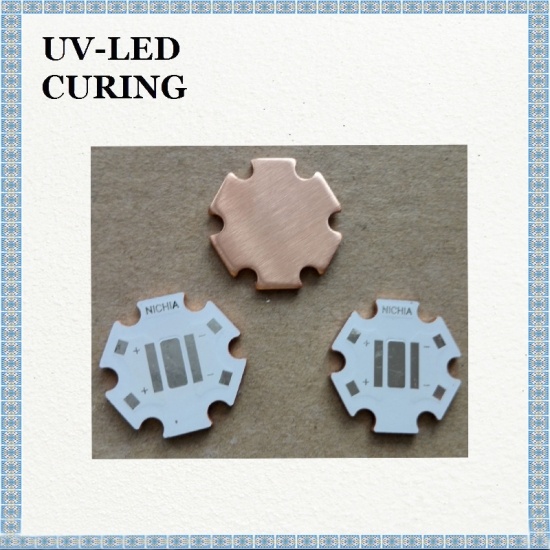

The NCSU033B Thermoelectric Separation Copper Substrate is a dedicated substrate for the UV LED spot light irradiation head.
CUN6GF1A 365nm 4 series 12V copper specifications: 20mm *1.5mm High brightness curing.
Thermoelectric separation of copper substrate, diameter 16mm, thickness 1.6mm, suitable for UV Flashlight of SVC and LG3535 Light. Attention: not suitable for NICHIA.
