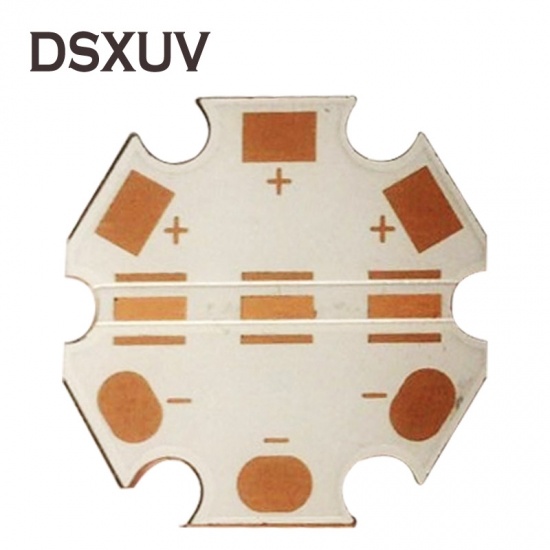

Three LEDs in Parallel 20mm PCB Printed Circuit Board Matched with 3535 Lights

Three LEDs in Parallel 20mm PCB Printed Circuit Board Matched with 3535 Lights

Three LEDs in Parallel 20mm PCB Printed Circuit Board Matched with 3535 Lights

Three LEDs in Parallel 20mm PCB Printed Circuit Board Matched with 3535 Lights

This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.

model no. :
3535 LED Copper Placode
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% Before Shipment
original region :
China

contact now

Product Details

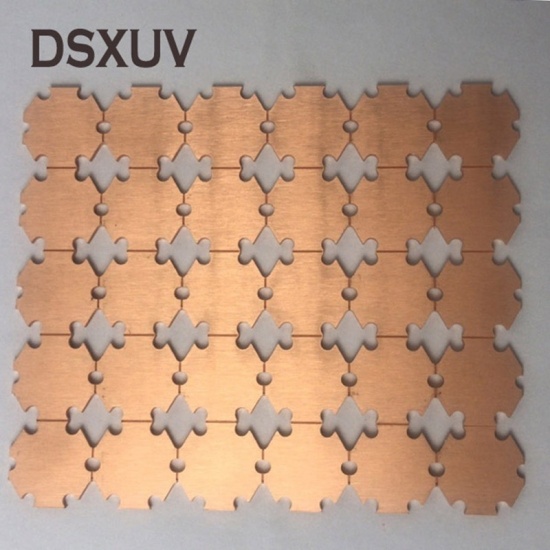

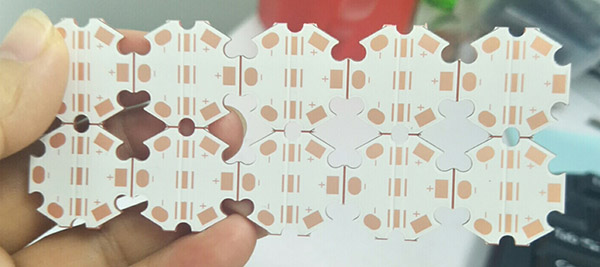

This is the type for welding three 3535 LEDs in parallel 20mm Copper Thermoelectric Separation Copper Substrate, which is appropriate for all 3535 LED light beads. If you need other size of base plate, please do not hesitate to contact us. Welcome to consult at any time!

Parameters :

Suitable LED : 3 Pin 3535 LED

Circuit : in parallel

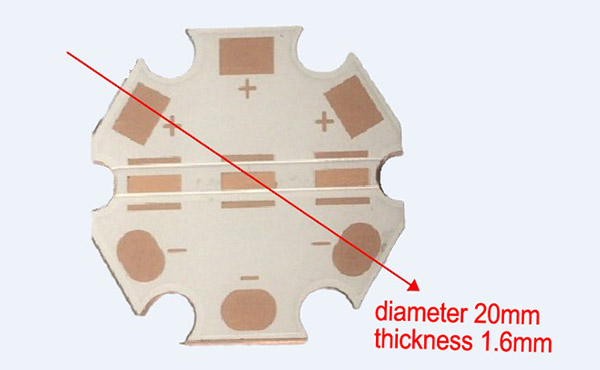

Dimension : diameter 20mm, thickness 1.6mm

Material : copper, welding plate is gold plated

Process : thermoelectric separation

Suitable for UVC LED 3535 LED Lamps Copper Printed Circuit Board

Customized 20mm Copper Base Board for 3535 LED Manufacturer

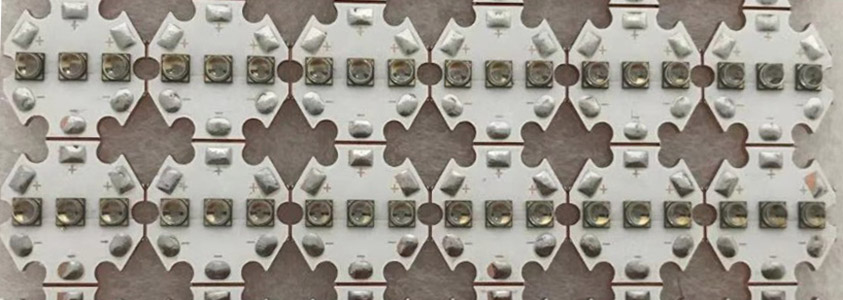

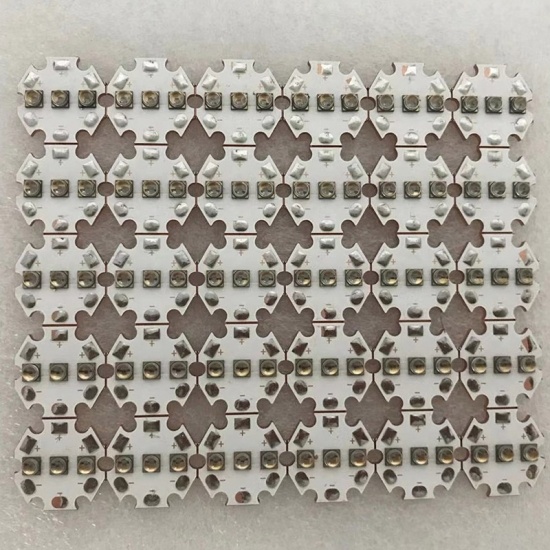

Soldering on the Lamp :

Thermoelectric Separation 20mm Copper Substrate 3535 Lamps Suppliers

Related Tags : UVC LED Copper Printed Circuit Board UVC LED Copper Basal Plate 20mm Copper Base Board for 3535 LED Customized 20mm Copper Substrate 3535 Lamps 20mm Thermoelectric Separation Copper Substrate
