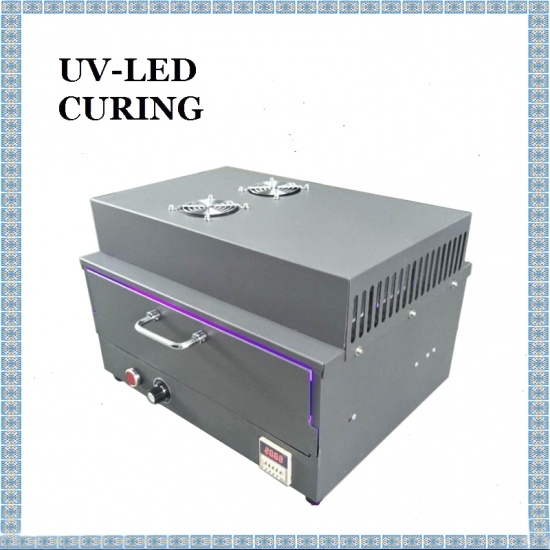

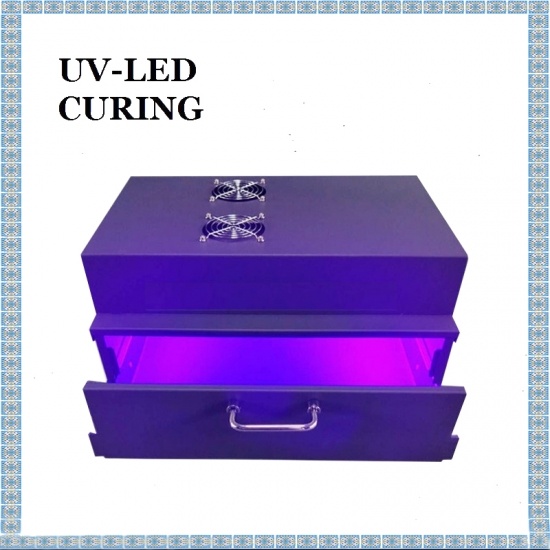

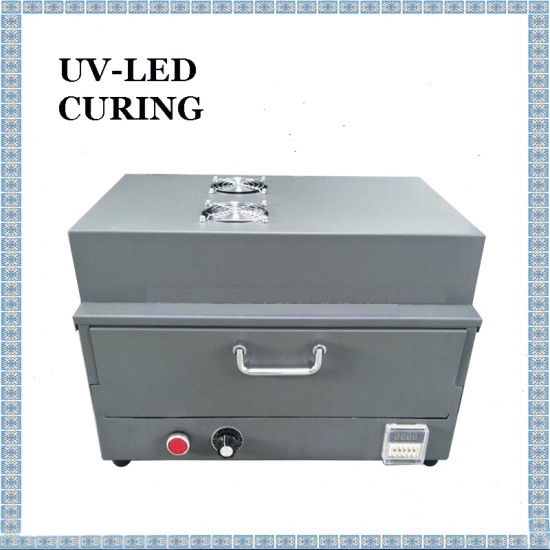

UV LED curing box for micro-speakers, motors, cameras, lenses, displays, PCBA; medical equipment, research institutes, 3D printing resin curing UV glue curing
model no. :
LED UV Curing OvenBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaLight Blocking LED UV Curing Oven UV Glue UV Curing Box Mobile Phone Screen Repair 395nm
UVLED curing box for micro-speakers, motors, cameras, lenses, displays, PCBA; medical equipment, research institutes, 3D printing resin curing UV glue curing
As we all know, UVLED curing equipment will emit glare ultraviolet light during the curing process, and the laboratory basically has no way to block light, which causes great pollution to the environment. At this time, the UVLED curing box can protect it well. effect. Guangdong SpaceLight Technology Co., Ltd specializes in the production of UVLED curing box for UVLED curing light source. Its operation is simple, convenient, small in size and powerful in function. It is suitable for laboratory, research and research, colleges and other occasions.
Trustworthy UVLED curing equipment manufacturers
For many years, Guangdong SpaceLight Technology Co., Ltd has been focusing on the development and production of UVLED curing equipment. The experienced technical team and service team will provide customers with better and more comprehensive services regardless of pre-sales and after-sales.
Parameters :
Brand |
DSX |
Input Voltage |
AC220V |
Name |
Drawer UV LED Curing Box |
Intensity |
Touch Screen Adjustable |
Material of Light Head |
Superconducting hot aluminum |
Outside Dimension |
460*360*260mm |
UV LED Chip |
Korea LG UV LED Chip |
Cooling Method |
Air Cooling |
Irradiance Area |
200*200mm |
Control Method |
I/O |
Irradiance Distance |
3-30mm (best effect) |
Inside Dimension |
420*320*80mm |
Power of Light |
500W |
Intensity of Adjusting |
Knob to adjust (0-100%) |
Wavelength |
395nm (can be customized 365nm-420nm) |
Quality Guarantee |
One year |
Advantages :
1.Energy saving : 80% less than mercury vapor lamps
2.High efficiency : high light intensity, fast curing speed, ink does not stick to the board, good calendering effect.
3.Mercury vapor lamp will produce carbon monoxide harmful gas, and UV LED is a long wave, a single wavelength, will not produce gas, harmless to human body, the working environment is clean and tidy, in line with the national policy of energy conservation and environmental protection, do not have to worry about environmental protection assessment.
Applications :
1. UV curing screen printing polish
2. UV plastic glazing oil (hot stamping)
3. Optical disc protects UV varnish
4. UV curing adhesive
5.UV curing soft adhesive
6.UV marble coating
7. The UV shadowless glue
8. UV LED line light source in smart-phone
9. Microelectronic industry -UV photocurable
10. PCB industry UV LED photocuring
11. Medical device UVLED photocuring
12. Optical industry -ST-UVLED curing
13. UVLED curing application in optical communication industry
14. Scientific research and institution ST UV LED photocuring
New Design box-style portable UV Curing Box furnace instead of traditional mercury lamp UV dryer.
Enclosed 100x100mm UV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating.
UV LED Masking System can be used for electronics, PCB board and chip, optical lens fixed layer, speakers, DVD bald, computer wire connector, medical industrial and other application fields.
UV Masking Exposure System for Wafer Samples is a Very compact table-top system, perfectly monochromatic at 365nm, hard and soft contact up to 4 inches wafer.
LED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
Drawer Type MINI Curing Oven UV Curing Chamber is a miniature ultraviolet curing machine, can cure micro motor, LCD, LCM, camera module, atc..
