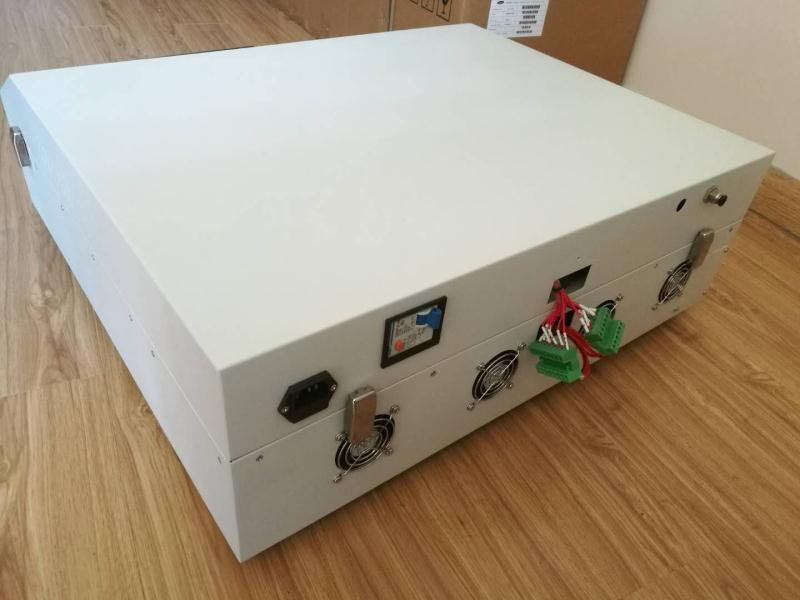

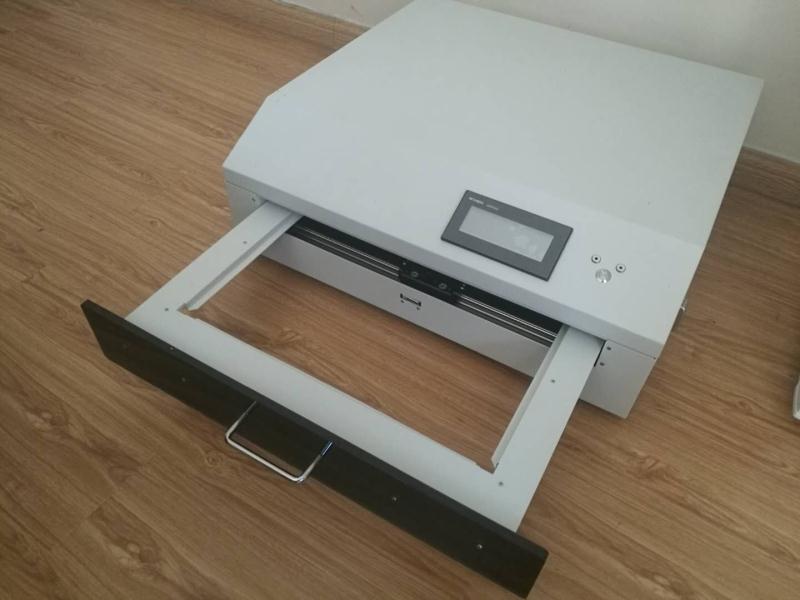

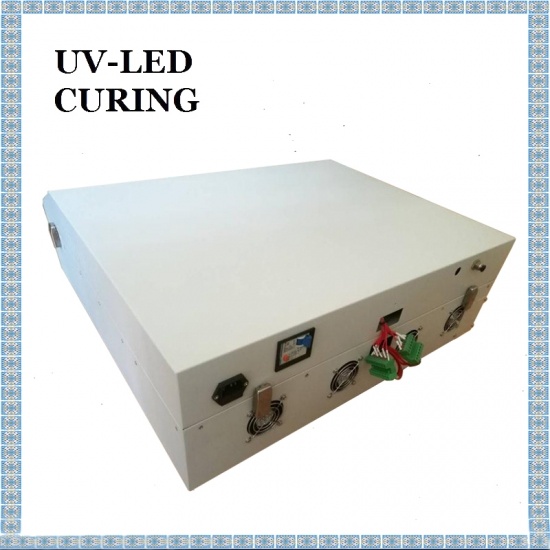

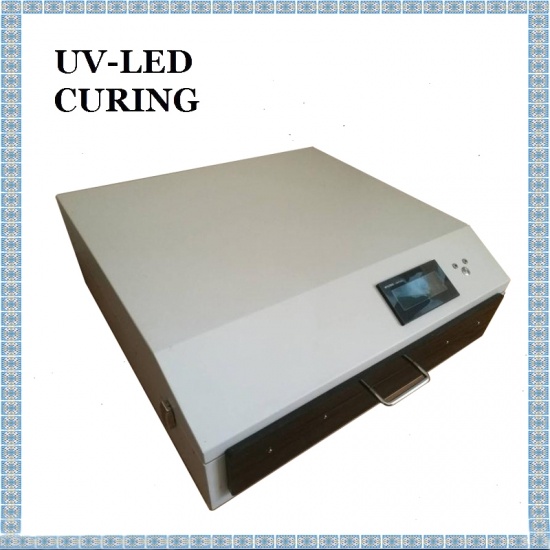

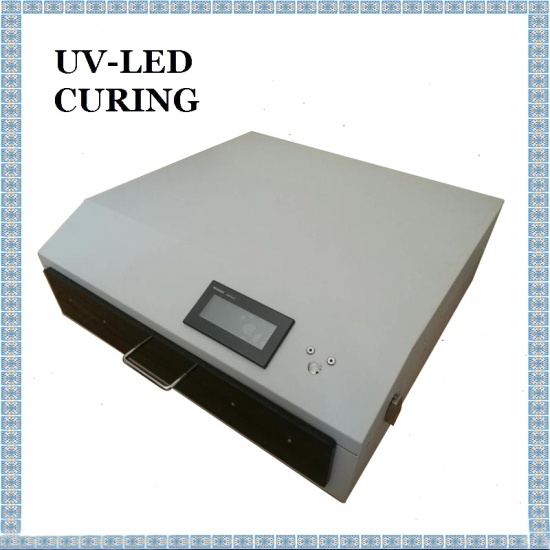

UV Masking Exposure System for Wafer Samples is a Very compact table-top system, perfectly monochromatic at 365nm, hard and soft contact up to 4 inches wafer.
model no. :
UV Masking Exposure SystemBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINA3D Fast Cure Simple UV Curing Systems Sell Offers for 3D Resin Prints is a Very compact table-top system, perfectly monochromatic at 365nm, hard and soft contact up to 4 inches wafer.
UV Masking Exposure System for Wafer Samples :
1. Very compact table-top system
2. Perfectly monochromatic at 365nm
3. Hard and soft contact up to wafer
4. Compatible with photoresists
1.Main Specifications
1.1 Size of Frame:6,8,12 inches
1.2 Kinds of Film:UV Film
1.3 Wafer Specification: 12 inches or lower
1.4 Irradiation Light Source:LED Ultraviolet Light Source Cold Light Source Wavelength : 365nm。
1.5 Irradiation Intensity:600-1000mW/cm2
1.6 Place Fixture:6,8,12 inches, can switch to one another
1.7 Handling Mode:Manual Take Put
1.8 Product Positioning:a fixture position does not allow it to move
1.9 Electric Power Supply:220V 350W 8A
1.10 Volume(W*L*H):645mm*620mm*195mm
1.11 Net Weight:40kg
2. Equipment Characteristics
2.1 PLC +Touch Screen Software Control。
2.2 Irradiation Time Setting 1-999S。
2.3 Temperature monitoring, over set protection temperature, alarm
2.4 Production Capacity : about 200 pieces per hour
2.5 Pre-Nitrogen Flushing
3. Application :
New Design box-style portable UV Curing Box furnace instead of traditional mercury lamp UV dryer.
Enclosed 100x100mm UV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating.
UV LED Masking System can be used for electronics, PCB board and chip, optical lens fixed layer, speakers, DVD bald, computer wire connector, medical industrial and other application fields.
LED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
Drawer Type MINI Curing Oven UV Curing Chamber is a miniature ultraviolet curing machine, can cure micro motor, LCD, LCM, camera module, atc..
Portable UV Glue Curing Oven can cure mobile phone case, UV curing glue, touch screen water gel (LOCA), LCD bonding, and is small, lightweight, ultra-cheap, also easy to handle.
