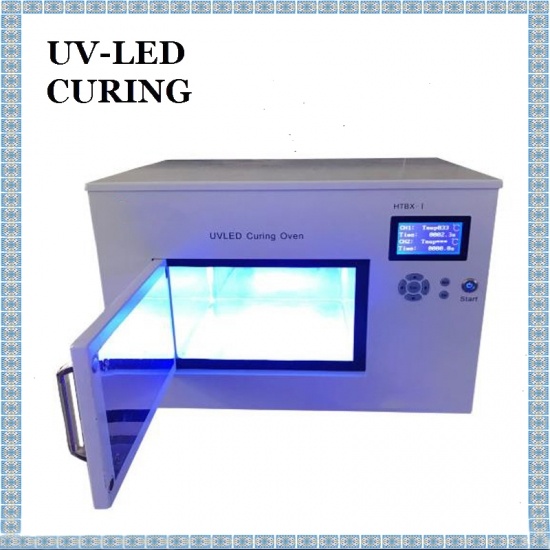

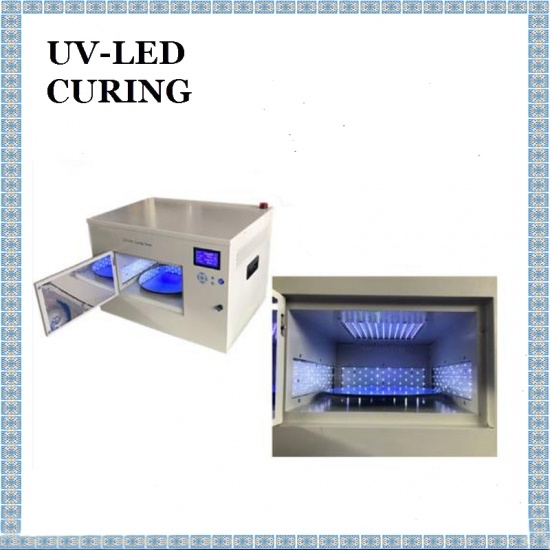

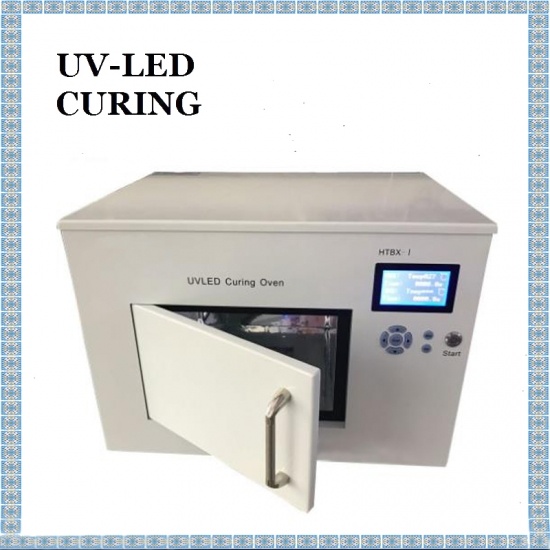

LED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
model no. :
UV Ink Curing OvenBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/T 100% Before Shipmentoriginal region :
CHINALED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
Quick Details of Fast Cure 3D Printed Simple 365nm UV Curing Systems Sell Offers for UV Curing Resin:
Type: UV LED, Electronic Component
Model Number: UV-LED CURING-II
Chip Material: AlGaInP
Emitting Color: Blue
Luminous Intensity: Max. 20W/cm^2
Luminous Flux(lm): 30-40lm
Optical Attenuation(%): 10
Power: 0.1W
Power Dissipation: 420
Viewing Angle(°): 120
Color Rendering Index(Ra): 100
Color Temperature: Ultraviolet
Operating Temperature(℃): -10 - 50
Storage Temperature(℃): -10 - 50
Place of Origin: Guangdong, China (Mainland)
Brand Name: UV-LED CURING
Certification: CE, RoHS
Condition: 100% Original
Product name: Hmi
Warranty: 1 Year
Quality: 100%Brand
Application: Electronic Equipment
Name: Original A-B 20-HIM-A6 PANEL
Packaging & Delivery of High Power UV Curing Systems 365nm:
Packaging Details : Standard export carton and processed wood packing
Delivery Time : 15 days after payment
Factory Price LED Curing Box UV Ink Curing Oven UV Chamber
Controller technical specifications |
|||
Type |
UV-LED CURING-II |
||
Channel |
1 |
||
The size of controller |
L384*W284*H90mm |
||
Terminal I/O |
Input |
Pedal switch & serial RS-232 |
|
Output |
serial RS-232 communication signals |
||
Cooling method of controller |
Air cooling |
||
Power supply voltage |
AC100~240V±10%(50/60HZ) |
||
Operation mode |
Touch Panel |
||
Ambient temperature and humidity |
Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH |
||
Dimming/Exposure control |
Digital Debugging,Manual exposure control, Foot control or timing control (0.1~9999S) |
||
Setting operation |
Using the operating switch is set, Power key parameter switch,RS-232 |
||
External Control |
External input |
Enter irradiation alone |
|
External output |
READY signal,Error output(Various skinhead), +5VOutput (indicator used) |
||
UV LED Irradiation Head Specifications |
||
type |
UV-LED CURING-II |
|
Electric power |
768W |
|
Cooling method |
Air cooling |
|
Curing area |
220x230x60mm |
|
Irradiate distance |
10~100mm |
|
UV LED curing head |
wavelength |
365-405nm or customized |
Peak irradiance |
1000~2000mW/CM2 |
New Design box-style portable UV Curing Box furnace instead of traditional mercury lamp UV dryer.
Enclosed 100x100mm UV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating.
UV LED Masking System can be used for electronics, PCB board and chip, optical lens fixed layer, speakers, DVD bald, computer wire connector, medical industrial and other application fields.
UV Masking Exposure System for Wafer Samples is a Very compact table-top system, perfectly monochromatic at 365nm, hard and soft contact up to 4 inches wafer.

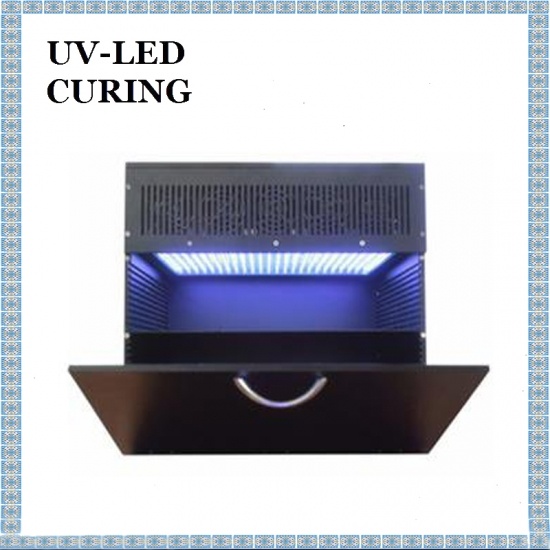

Drawer Type MINI Curing Oven UV Curing Chamber is a miniature ultraviolet curing machine, can cure micro motor, LCD, LCM, camera module, atc..
Portable UV Glue Curing Oven can cure mobile phone case, UV curing glue, touch screen water gel (LOCA), LCD bonding, and is small, lightweight, ultra-cheap, also easy to handle.
