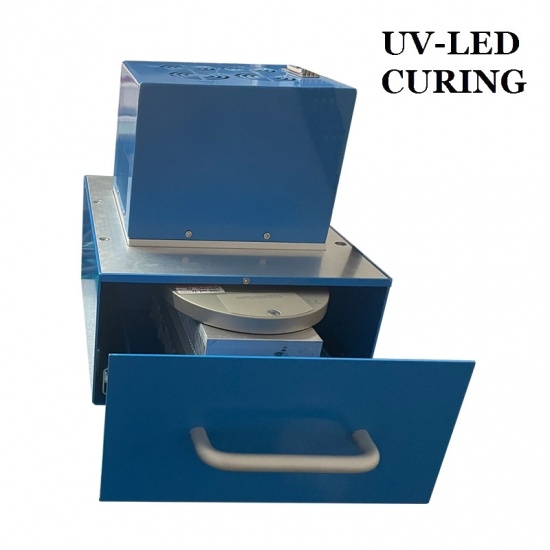

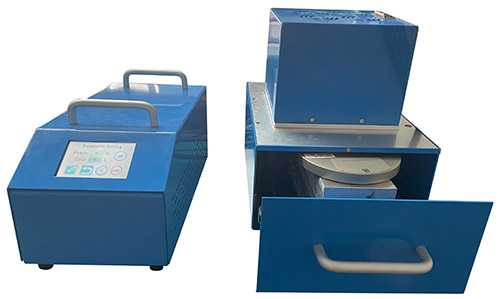

Enclosed 100x100mm UV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating.
model no. :
395nm UV Curing OvenBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
CHINAUV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating. Not only can be applied to the electronic industry, but also it can be used in the instrument industry. The DSX-100-Oven UV Curing Device is small in size, light in weight, well-made, easy to move and suitable for desktop placement.
Application :
1.All kinds of UV coatings, IMD injection products ink curing
2.Used for solidifying electronic components, liquid crystal, terminal sealing, mobile phone assembly bonding, plastic assembly bonding and LCD, etc.
Parameter of UV Curing Irradiation Head :
Light size |
100 * 100mm |
power |
< 3000W |
Dimensions |
L 130*W130*H112.8 mm |
Recommended height |
1 cm |
Cooling |
Air cooled |
wavelength |
395 nm |
Material / weight |
Sheet metal / 15kg |
Luminous power (mW/cm 2 ) |
4000mW by EIT |
Prediction of service life |
20000 H |
||
Monitoring method |
temperature check |
Cable length |
2 m |

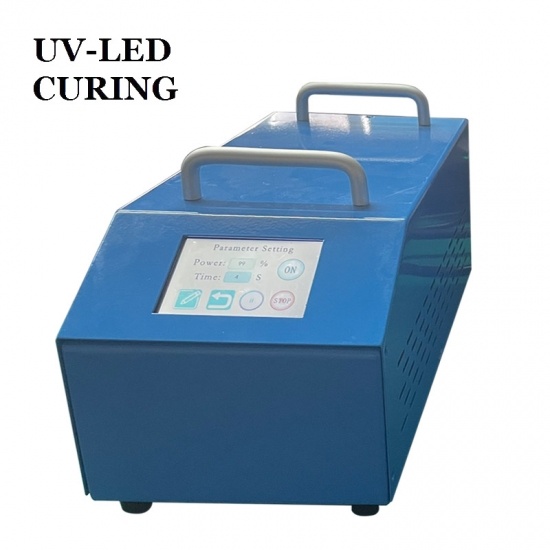

Parameter of UV Curing Machine Controller :
Dimension |
L320*W160*H130.4mm |
Power dissipation |
50W |
Cool method |
Air cooled |
Input power |
100-240V AC 50-60 HZ |
Material / weight |
Blue paint / 5kg |
Number of driving heads |
One or more, independent control |
RS232 serial communication |
Can query and adjust intensity, time, mode |
Display and operation |
Touch screen for adjustable time and intensity |
LED time accumulation |
Active record cumulative usage time |
External terminal block |
Can be connected with single-chip, PLC and other equipment for control and working status feedback |
Characteristics :
1.The lamp holder can be taken out and used for other purposes.
2.The light output power of this UV curing oven is up to 5000mW/cm2.
