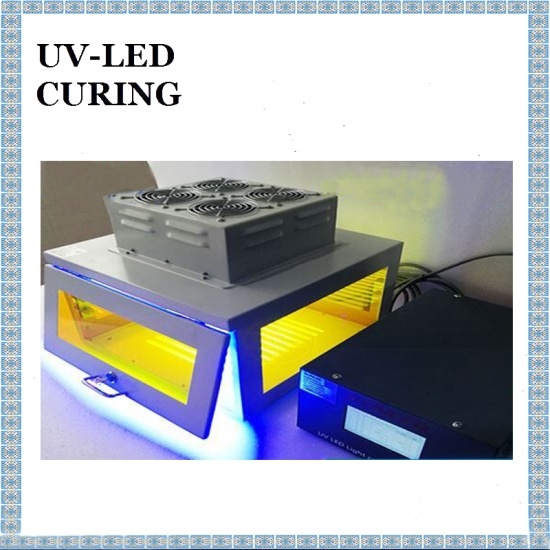

UV LED Masking System can be used for electronics, PCB board and chip, optical lens fixed layer, speakers, DVD bald, computer wire connector, medical industrial and other application fields.
model no. :
UV LED Masking OvenBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINAUV LED Masking System can be used for electronics, PCB board and chip, optical lens fixed layer, speakers, DVD bald, computer wire connector, medical industrial and other application fields.
Characteristics of More Effective Simple UV Light Box 365nm :
1. LED Oven is cold light source with no thermal radiation, and the temperature of the exposure products is almost constant.
2. The chassis is made of the U.S. imported transparent anti-septal material.
3. No toxic substances, no mercury, no ozone, is a safer and more environmentally friendly alternative to traditional light source.
Parameters of International Compact UV LED Exposure Box :
Brand : UV-RLHX
Driving Pattern : manual, automatic, step, pulse
Supply Voltage : 110/220VAC
Power Consumption : <500W
Light Intensity Power Range : 0-100%
Light Intensity : 3000mW / cm2
Wavelength : 365nm 385nm 395nm 405nm
UV LED Irradiation Area : 100*200 (mm), 100*300 (mm), 200*200 (mm)
Cooling Method : air cooling
Environment Temperature : +5~+40℃ Storage : -15~+65℃
Environment Humidity : 20-85%
Service Life : 25000~40000 hours
Other size can be customized.
New Design box-style portable UV Curing Box furnace instead of traditional mercury lamp UV dryer.
Enclosed 100x100mm UV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating.
UV Masking Exposure System for Wafer Samples is a Very compact table-top system, perfectly monochromatic at 365nm, hard and soft contact up to 4 inches wafer.
LED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
Drawer Type MINI Curing Oven UV Curing Chamber is a miniature ultraviolet curing machine, can cure micro motor, LCD, LCM, camera module, atc..
Portable UV Glue Curing Oven can cure mobile phone case, UV curing glue, touch screen water gel (LOCA), LCD bonding, and is small, lightweight, ultra-cheap, also easy to handle.
