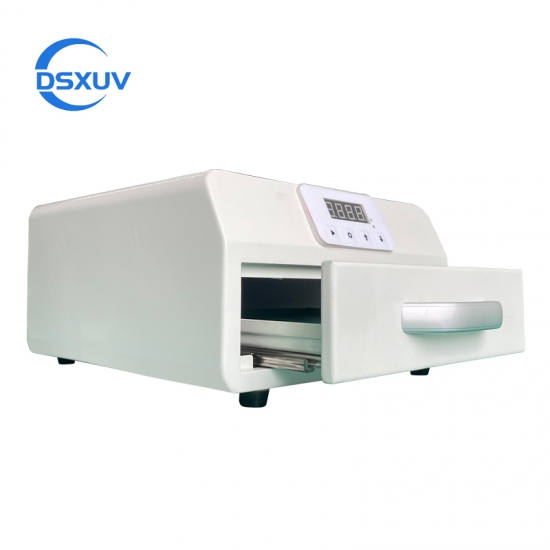

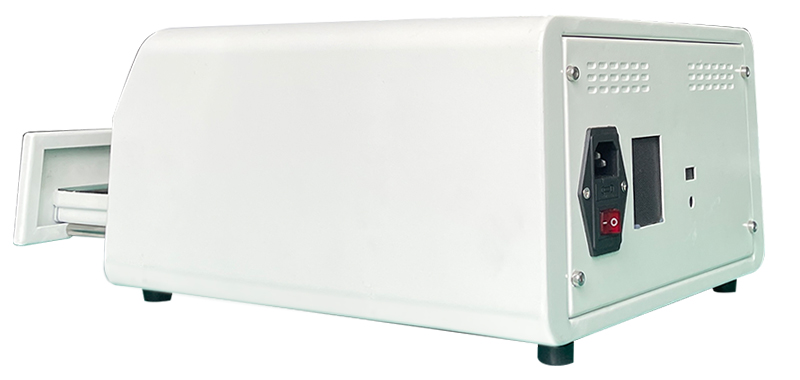

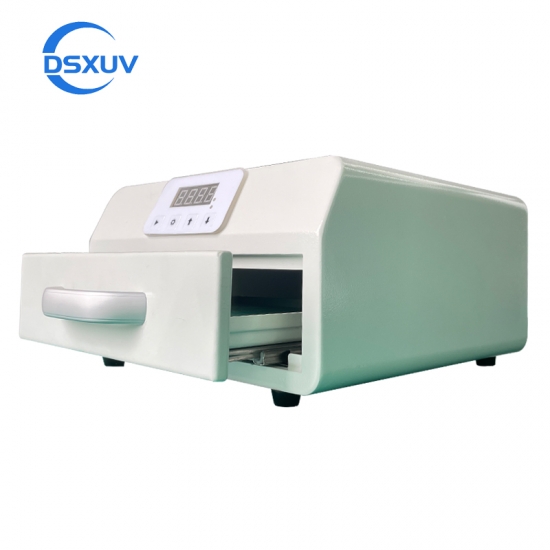

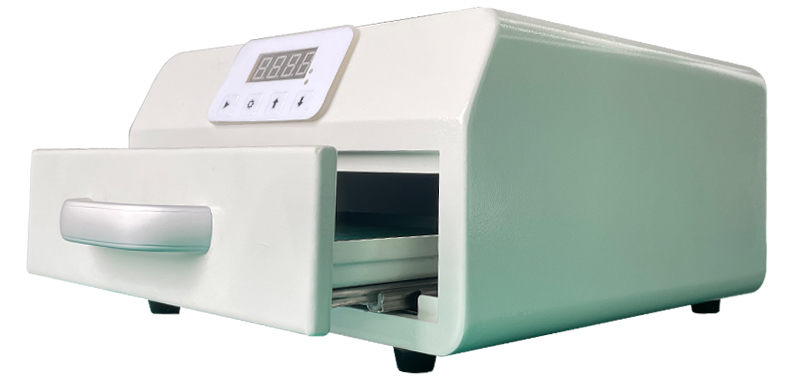

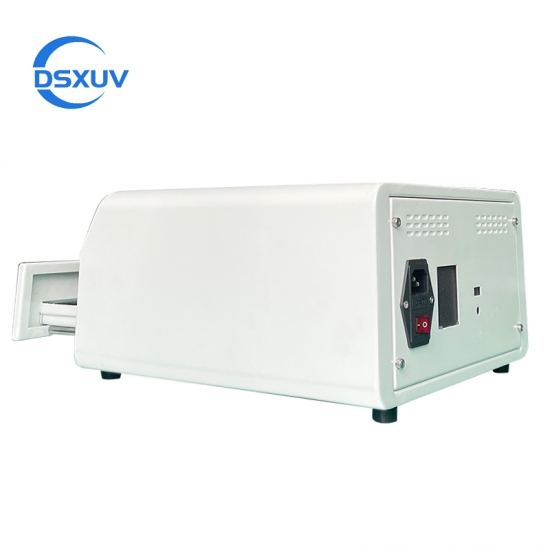

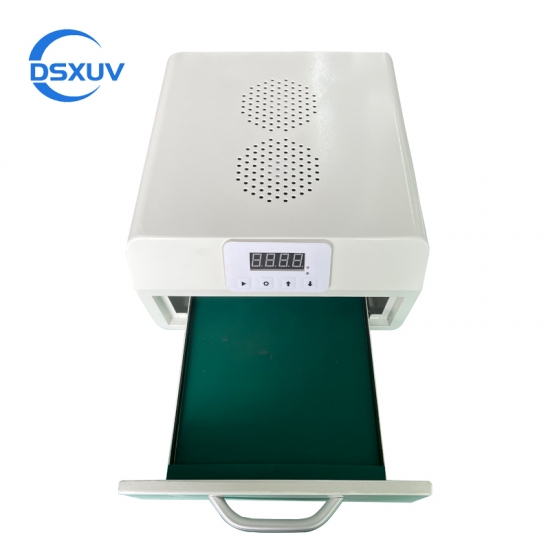

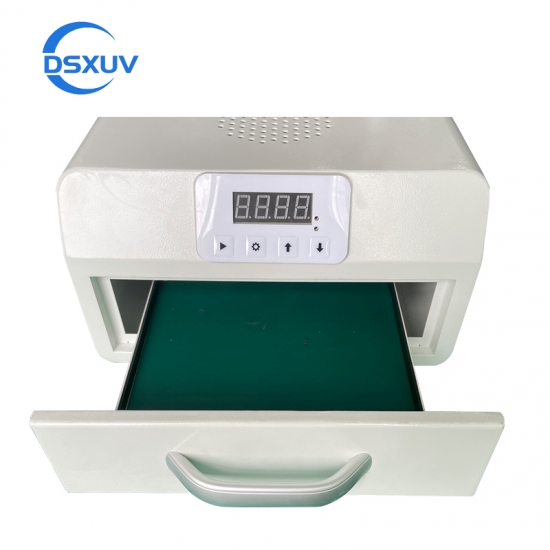

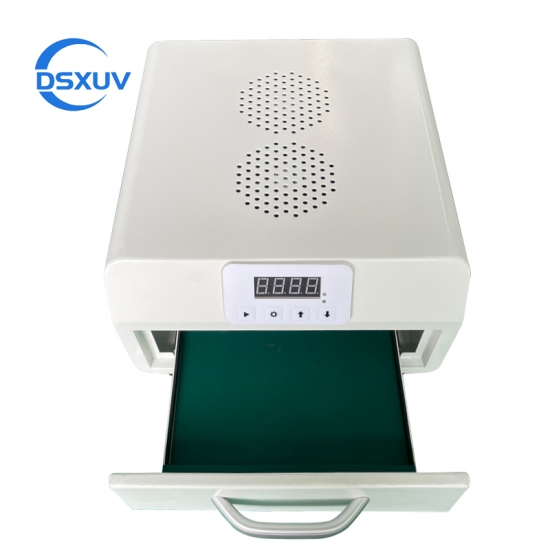

Light-Shielding LED UV Curing Box can be used to cure different materials, such as UV glue, ink, varnish, and paint, at the most efficient level possible.
model no. :
LED UV Curing OvenBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :
ChinaUVA LED UV Drying Chamber is a very convenient process, it greatly cuts down the drying time. However, certain materials which need to be UV cured are heat sensitive. This issue can make it difficult to take advantage of the fast curing speed of these materials with regular UV mercury lights. The LED UV curing chamber is the solution to that problem.
LED ovens have no warm-up time, which means you can start using the highest intensity available on the unit immediately.
The LED UV Curing Device can be offerred several options for your different power needs. The right size, power, wavelength can be customized. Welcome to consult.
Specifications of LED UV Curing Light Oven :
In-put Voltage |
100~240V,50~60Hz |
Peak Power |
100W |
Outside Dimensions |
L300* W280* H150mm |
Capacity of the Drawer |
L195* W195* H20mm |
Naked Weight of Machine |
8KG |
Light Source |
365nm |
Average Irradiation Power |
80~300mW/cm² |
Display Panel |
Four-digit |
Heat Sink |
Two Fan |
Protector |

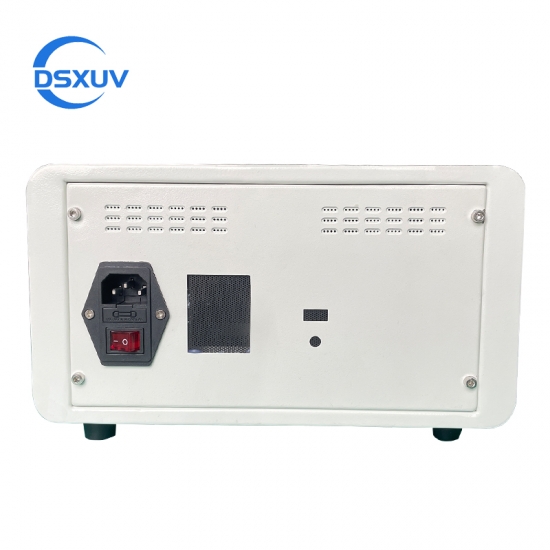

Switch-Fuse, circuit breaker, grounding connection |
Applications of UVA LED UV Curing Chamber :
This equipment is suitable for mobile phone case, CD, UV coating, touch screen, LCD screen, dry glue (LOCA), water glue, LCD bonding, mobile phone screen OCA, optical lens, audio UV shadow glue curing and other fields.
Characteristics of Light-Shielding LED UV Curing Box :

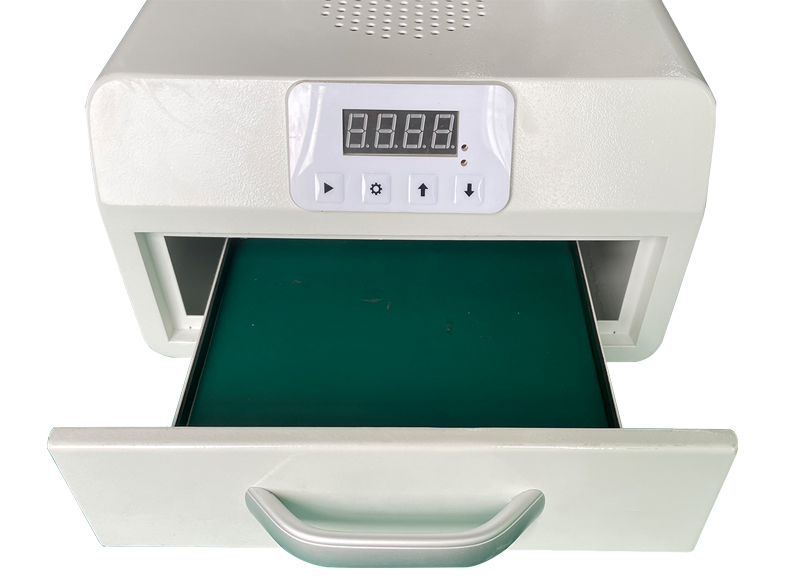

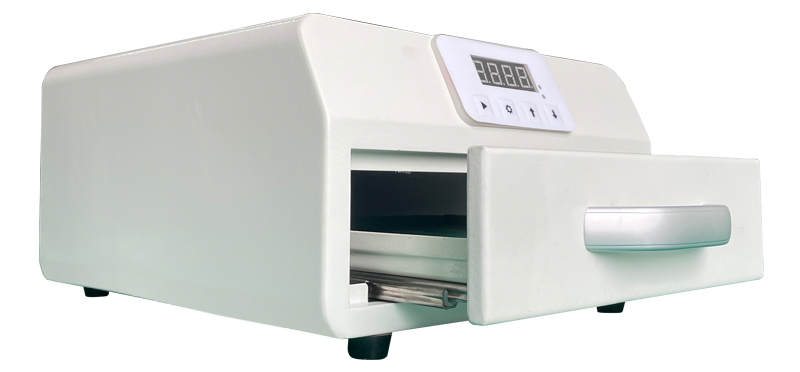

Drawer type sealing operation, the use of more safe, no need to preheat that is out of box, free setting curing time, drawer closed will automatically start, drawer open will automatically turn off the light, brightness adjustable, high light effect curing, fast speed.

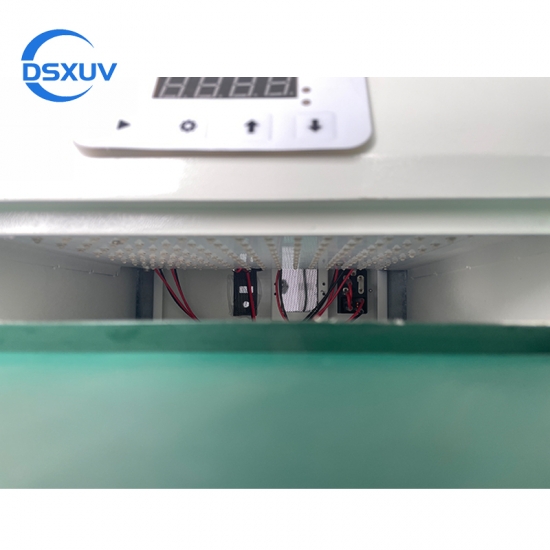

1. UV LED curing light source, which is uniform, stable, strong light, shorten the curing time of products, improve production efficiency.
2. Low thermal radiation, it is suitable for liquid crystal edge sealing, plastic substrate, film printing, medical equipment, optical lens and other occasions with temperature requirements.
3. Low power consumption, which is 10% of traditional mercury lamp curing machine, it can save 90% power.
4. Long service life, LED service life can reach 10000-20000 hours, saving the cost of consumables.
5. No preheating, ready to use, instant light intensity
6. Safe and environmentally friendly, mercury free and ozone free
7. UV LED surface light source can be customized according to customer’s actual application
