model no. :

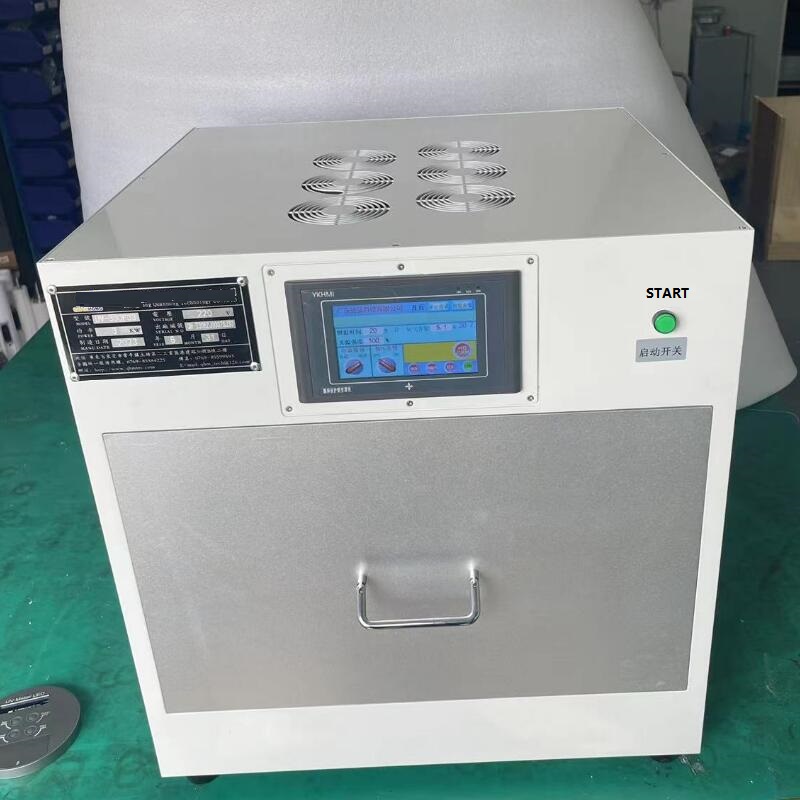

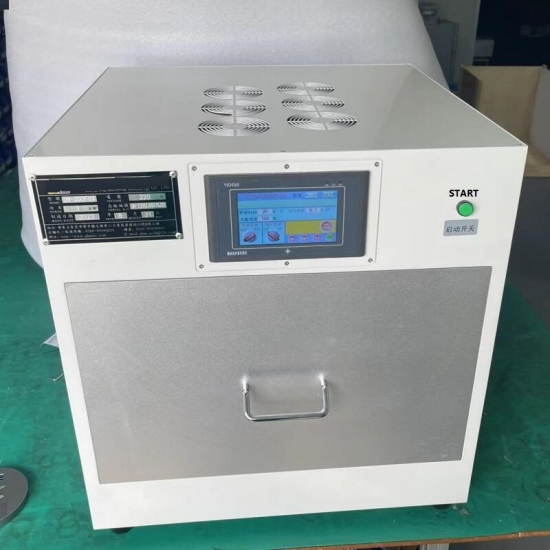

Nitrogen-assisted UV curing boxBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :
CN
No. |
Accessory |
Process |
Technical Requirements |
1 |
|
Voltage |
220V |
2 |
Control |
Touch screen / witch / PLC |
|
3 |
Irradiation Power |
10%-100% adjustable |
|
4 |
Irradiation |
Manual: steady on after startup |
|
5 |
Auto: set irradiation countdown time (0.1-999.9) S |
||
6 |
Communication Control |
It can realize data reading and writing, LED switching and parameter control |
|
7 |
I/O interface: LED switch control and running status output |
||
8 |
N2 Filling |
Nitrogen filling time and curing time can be set separately |
|
10 |
|
Cooling |
Fan cooling |
11 |
Temperature |
<50 degree |
|
12 |
Wavelength |
365nm+-5nm |
|
13 |
Lighting Area |
300X300mm |
|
14 |
Lighting Distance |
200mm |
|
15 |
Intensity |
>=200mW/cm2 |
|
16 |
Direction |
From top to bottom |
|
17 |
Curing |
Light Leak |
No |
18 |
Product Size |
>=350X350mm |
|
19 |
Volume |
Including wooden box |
L653mm * W618mm * H610mm |
20 |
Weight |
Including wooden box |
100kg |
21 |
Require 1 |
Intensity |
The peak irradiation intensity, irradiation distance of 200mm after 5min irradiation, the energy measured by the energy meter reaches 60000mJ/cm2 |
22 |
Require 2 |
Uniformity |
Within the irradiation range of lighting area, the deviation between the strongest energy and the weakest energy is within +-10% |
