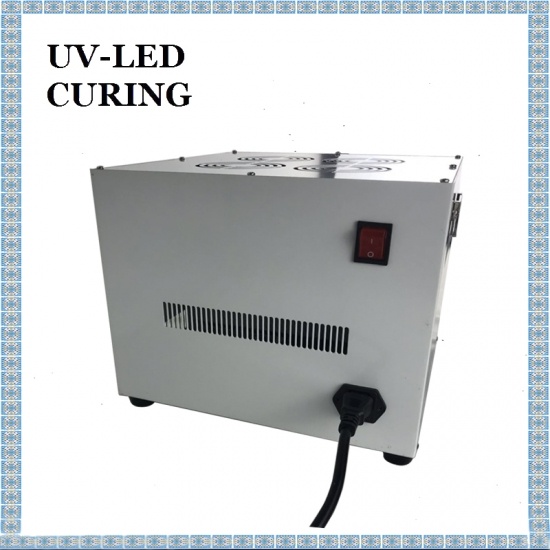

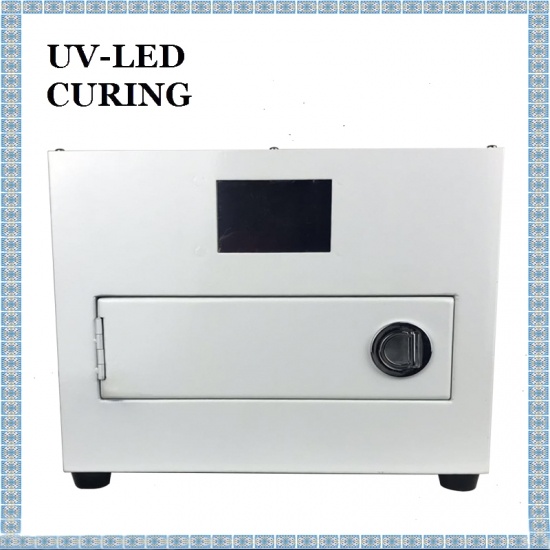

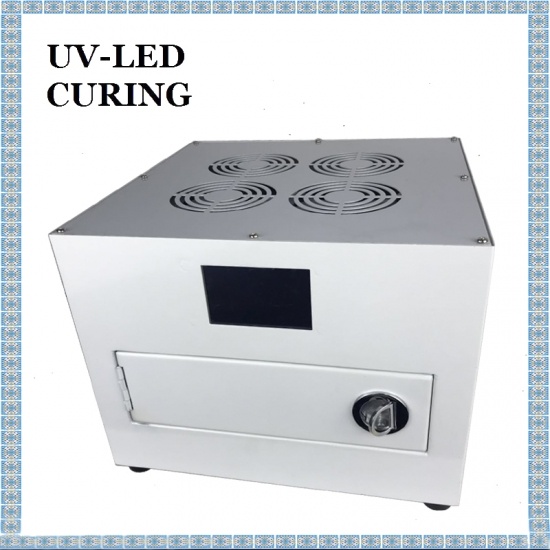

UV LED Curing Box irradiation system is used in UV glue curing, UV aging experiment, UV curing of multiple products of the same fixture and 3D printing curing.
model no. :
UV Curing ChamberBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaSmall UV Irradiation Chamber Curing Semiconductor Chip adopts microwave oven shape design, light and simple. Mainly used in UV glue curing, UV aging experiment, UV curing of multiple products of the same fixture and 3D printing curing.
Deshengxing Electronics Co., Ltd. 365nm UV Irradiation Equipment Curing UV Glue can choose different wavelengths such as 365nm, 385nm, 395nm, 405nm, etc.. UV LED with different power corresponds to UV glue, UV ink, UV vanish and UV paint coated on different materials.
Characteristics of Semi-automatic UV Light Curing Box Curing Epoxy Resin :
1. UV LED curing oven does not need to preheated, it is bright, high purity, no heat radiation and deep ultraviolet light, long service life, to reduce the cost of equipment consumption.
2. The mercury lamp is low in energy consumption, non-mercury material. It is a new kind of energy-saving and environmental protection new UV curing equipment, which let your product’s UV curing faster.
3. At the same time, using the DE winning UV LED box, the whole closed design, not the radiation of the body will not penetrate, safety and rest.
Parameters of High Performance UV Lab Chamber Oven Curing UV Ink :

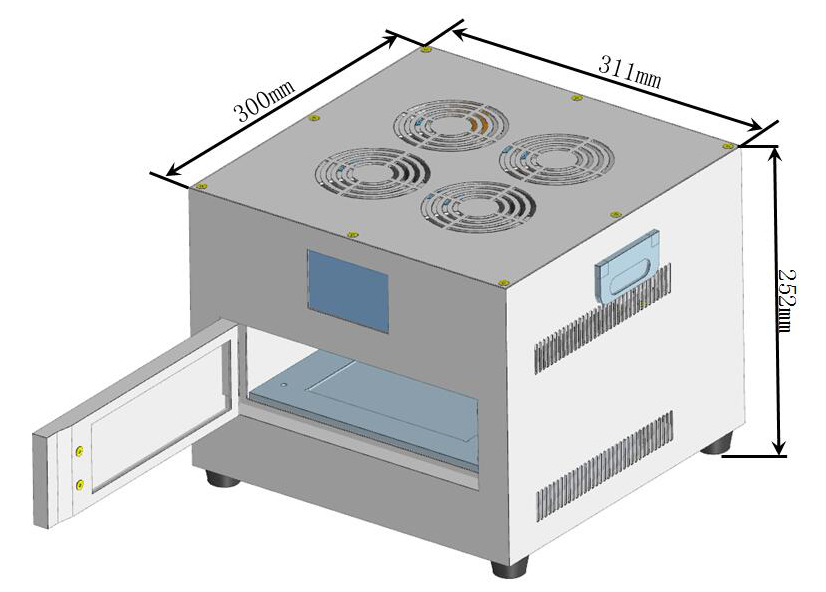

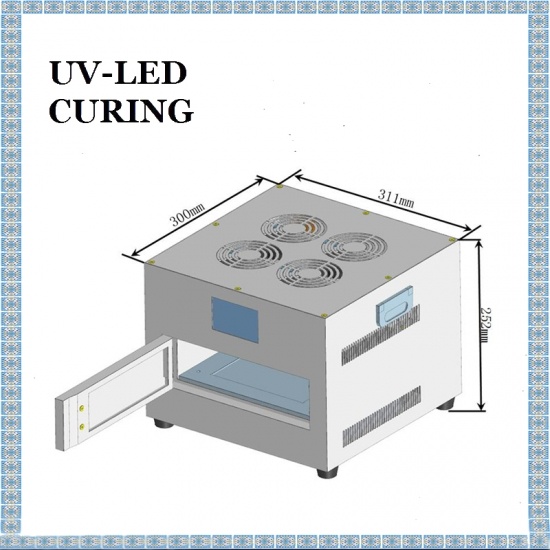

Outside dimension |
L300*W311*H252mm |
Weight |
6.5kg |

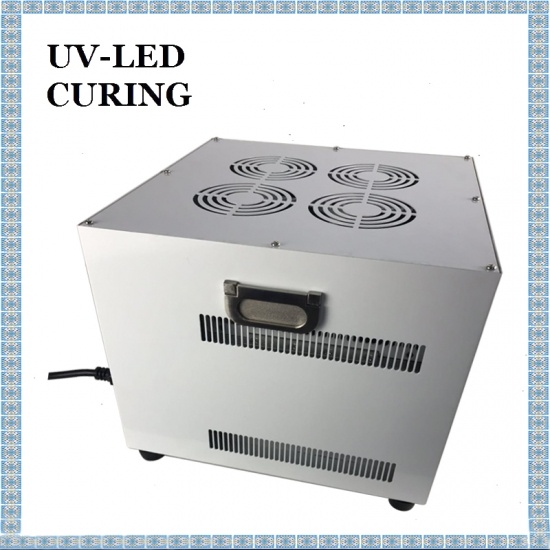

Cooling |
Air cooling |
Input power |
100-240V AC 50-60 HZ |
material |
White sheet metal |
Driving luminescent heads |
An outgoing light source |
Technology |
Stoving varnish |

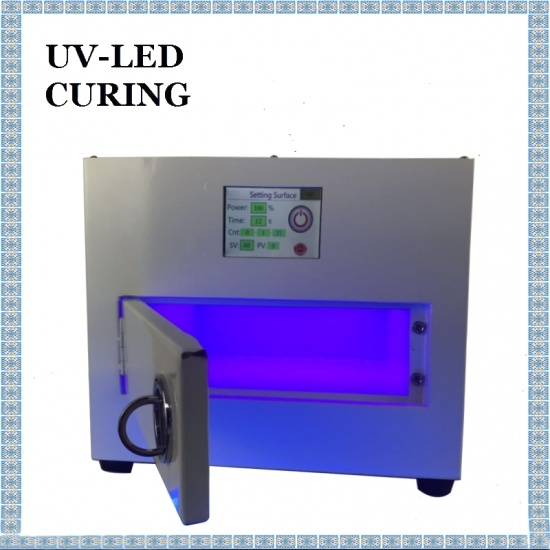

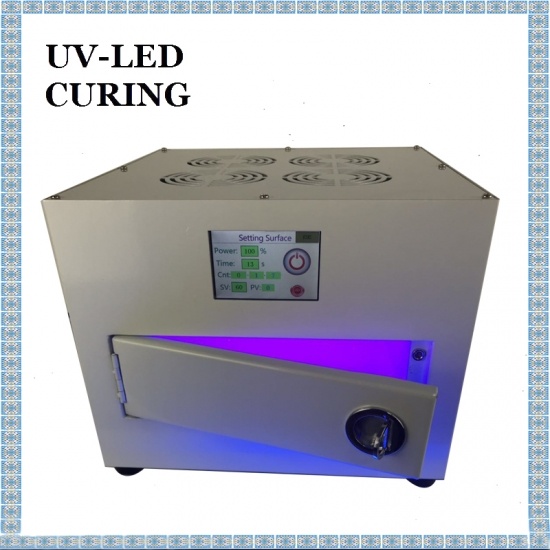

Display and operation mode |
Touch screen display, adjustable time, illumination |
Set the lock |
Changable password |
LED Time accumulation function |
Actively record cumulative use time |
Light Beads Configuration :
Luminous dimension of light source |
150X150mm, other size can be customized |
Total power |
400W |
Inside dimension |
220x193x62.5mm |
Irradiation height |
10~15mm |
Cooling |
Air cooling |
Wavelength |
365nm |
Illuminance |
300-2000mW/cm2 |
Light source predicts service life |
20000 H |
Applications for UV Curing LCM and TP module :
1.Glass frame sealing UV glue curing
2.UV Curing UV OCA, LOCA UV glue
3.ITO circuit (COG, COF), UV glue curing, IC protection UV glue curing
4.Curing FPC strengthens UV glue
5.Pre-curing UV glue curing

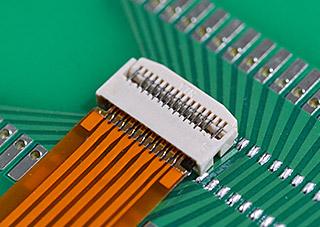

UV Curing FPCB (flexible printed circuit board) :
1.The sealing and pin chip protection of components on FPCB by UV glue curing
2.The reinforcing adhesive at the connection between FPC and the production protects at the line exposed on the step surface, avoiding corrosion, scratch, foreign body pollution and so on.
New Design box-style portable UV Curing Box furnace instead of traditional mercury lamp UV dryer.
Enclosed 100x100mm UV Curing Oven is widely used in mobile phone shell, CD, film switch, electronic plastic shell UV surface paint coating.
UV LED Masking System can be used for electronics, PCB board and chip, optical lens fixed layer, speakers, DVD bald, computer wire connector, medical industrial and other application fields.
UV Masking Exposure System for Wafer Samples is a Very compact table-top system, perfectly monochromatic at 365nm, hard and soft contact up to 4 inches wafer.
LED Curing Box UV Ink Curing Oven UV Chamber is instantaneous curing, no ozone, environment protection, energy conversation, no mercury.
Drawer Type MINI Curing Oven UV Curing Chamber is a miniature ultraviolet curing machine, can cure micro motor, LCD, LCM, camera module, atc..
