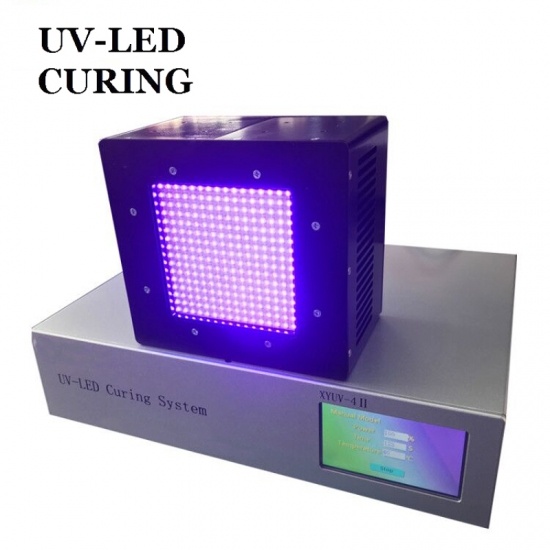

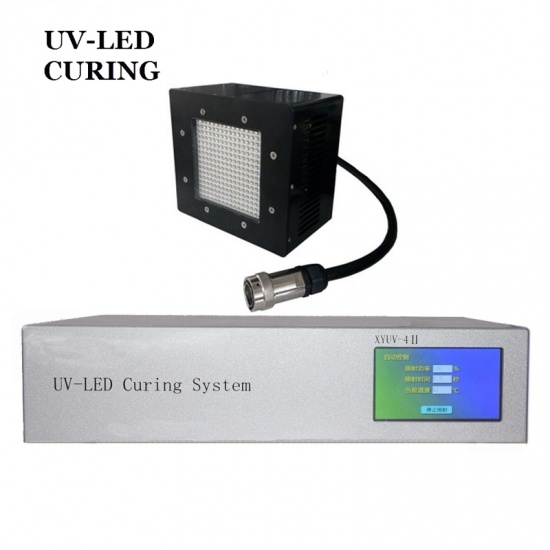

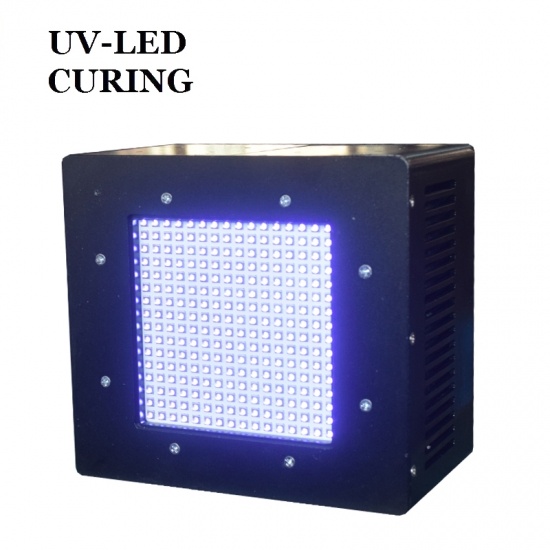

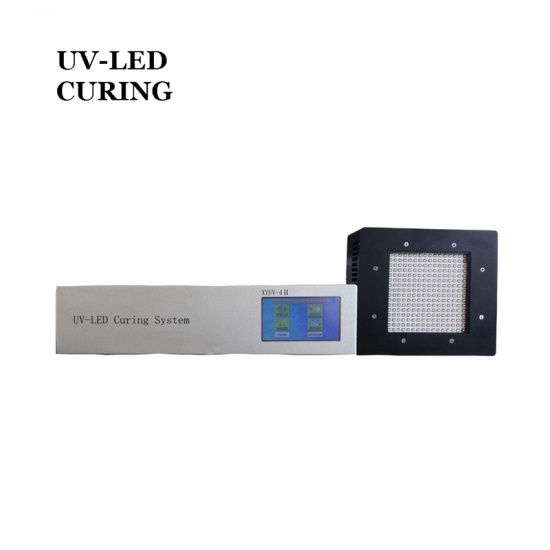

365nm UV Curing Machine UV LED Light is customized. Usually, it is used for side curing, crack curing, cracking bonding, etc..
model no. :
UV LED Curing Light 365nmBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :
15-30 DAYSCustomized 365nm LED UV Curing Coating Equipment, belong to Rec Area UV LED Curing, is used for side curing, crack curing, cracking bonding, etc.. Applicable to a variety of base materials: flexible or rigid, absorbable and non-absorbent materials.
Parameters of 365nm LED UV Light Source Curing Epoxy Resin :
Type
UV LED
Model Number
XYUV-4II
Brand Name
UV-LED CURING
Chip Material
AlGaInP
Certification
CE, RoHS
Power
0.1W
Place of Origin
Guangdong, China (Mainland)
Emitting Color
purple
Luminous Intensity
4w/cm2
Luminous Flux(lm)
30-40lm
Optical Attenuation(%)
10
Power Dissipation
768
Viewing Angle(°)
120
Color Rendering Index(Ra)
12
Storage Temperature(℃)
-10 - 50
Operating Temperature(℃)
-10 - 50
Wavelength
365nm/375nm/385nm/395nm/405nm/415nm
|
Technical Data of Portable 365nm UV LED Curing Lights Controller： |
||
|
Type |
XYUV - 4Ⅱ |
|
|
Channel |
1 |
|
|
The size of controller |
L384*W304*H90mm |
|
|
Terminal I/O |
Input |
Pedal switch & serial RS-232 communication signals |
|
Output |
Serial RS-232 communication signals |
|
|
Cooling method of controller |
Air cooling |
|
|
Power supply voltage |
AC100~240V±10%(50/60HZ) |
|
|
Operation mode |
Touch Panel |
|
|
Ambient temperature and humidity |
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH |
|
|
Dimming/Exposure control |
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s) |
|
|
Setting operation |
Using the operating switch is set, Power key parameter switch, RS-232 |
|
|
External Control |
External input |
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch |
|
External output |
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used) |
|
|
Technical data of Customized UV Coating Curing Equipment : |
|||||
|
Product Model |
Emitting Window Size |
Wavelength |
Cooling Method |
Peak Irradiation |
Irradiation Distance |
|
UV-LED CURING S256-100*100 |
100*100mm |
365nm |
Air Cooling |
4000mw/cm2 |
10-20mm |
Product Advantage of Low Temperature 365nm LED UV Drying Lamp Curing UV Glue :
1. Extra-long life: 25000h~30000h
2. Energy saving: save 80% electrical energy than Mercury lamp
3. UV output adjustable: from 1% to 100%
4. Multiple control modes: constant current, peal control, intelligent optical and manual modes
5. Photoelectric induction, instant on/off, no preheating required.
6. Low energy consumption, just 20% of the ordinary UV lamp.
7. No mercury, no Ozone, eco-friendly.
8. Cold light source, low temperature.
9. Stable output, high uniformity
Air Cooling UV Solidify Machine Curing Mobile Phone Touch Screen
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
104*25mm Water Cooling UV LED Curing System
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
Top Quality 365nm UV LED Curing Equipment Drying UV Glue
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
365nm LED UV Curing UV Glue UV Curing Machine for Bonding
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Bar Type LED UV Curing System for UV Ink Use to Cure
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System 30*120mm
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
