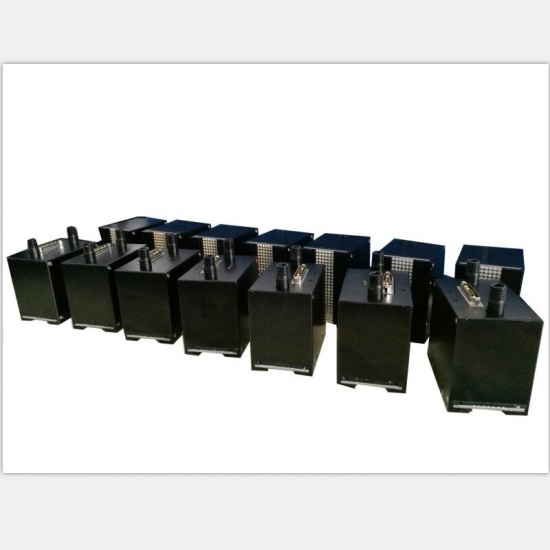

The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
model no. :
104*25mm UV Curing MachineBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :
15-30 DAYSThe WnnexCureTM EB168 UV Curing Light Source provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 High Intensity UV Adhesive Curing Systems is CE, RoHS, and REACH compliant.
Performance of 104*25mm Customized LED UV Curing Light Source for UV Ink :
wavelenth |
365nm |
385nm 395nm 405nm |
Peak Irradiance (Flat Glass) |
8w/cm2 |
8w/cm2 ~ 16w/cm2 |
Emitting Window |
104mmx25mm |
104 x25mm |
48VDC Power In (Typical) |
500w/10A |
500w/10A |
48VDC Power In (Maximum) |
500w/10A |
1000w/20A |

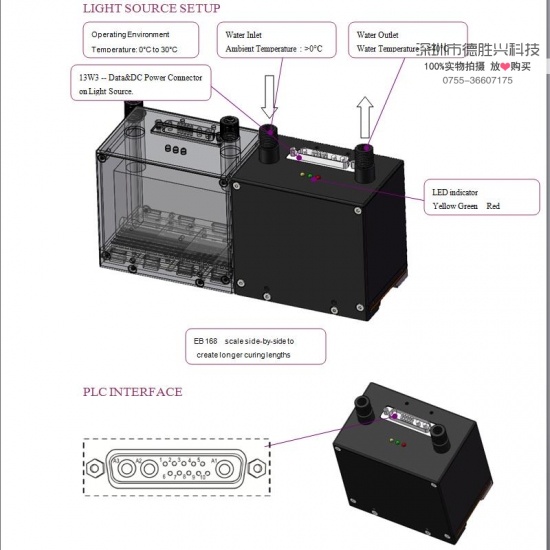

Light Source Set Up of Powerful Large Area UV LED Curing Equipment :
DB13W3 Connector Pins of Professional UV LED Curing Technology : |
Pin |
Fuction |
Input/Output |
Range(min/max) |
Comments |
4 5 |
Intensity Control |
Input |
0~10V |
Input voltage is converted to required current to achieve desired intensity where 5V = 100% and 1.0V = 20%. A minimum voltage of 1.0V is required for proper LightSource operation. Note: Aslo can be set to 0~5V by TP |
3 8 |
Enable signal |
Input |
Dry Switch |
. ON= LED UVLampON OFF= LED UV Lamp OFF |
2 7 |
Intensity Enable |
Input |
Dry Switch |
ON = Intensity Control valid OFF = Intensity Control invalid |
1 6 |
Alarm Output |
Output |
Dry Switch |
ON = Error OFF = No Error Error including three types: 1 Over temperature 2 LED string open 3 LED short (Debugging) |
9 10 |
Communication lines |
Input/Output |
Modbus |
|
A1 |
+48VDC Power Input |
Input |
+47V to +49V |
+48VDC Power Input to power Light Source |
A2 |
Ground |
--- |
0.0V |
+48VDC Return, Ground |
A3 |
PE |
|
0.0V |
Protective Earth, Ground |
Dimension of LED UV Curing Lamps for Silk Screen Printing Machine (Units of measurement: mm)
Dimensions |
104 x 25 |
L |
104 |
H |
120 |
W |
69 |
UV Emitting Area |
104 x 25 |
Weight(kg) |
2.3 |
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
Curing Area of NEW High intensity 395nm light source UV LED Linear Curing system is 600*20mm and its Wavelength is 395nm.
