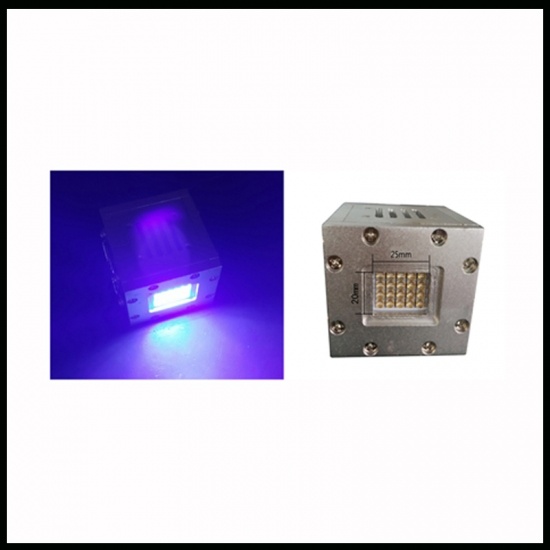

Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
model no. :
UV Glue UV Curing MachineBrand:
DSXUVport of dispatch :
ShenZhenPayment :
T/Toriginal region :
CHINALead Time :
15days
Specialized 365nm 3D Print UV LED Curing Equipment for lens bonding. Surface Area UV LED Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Professional LED UV Curing Technology and Solution
UV LED surface light source is a semiconductor light emitting device which directly generates ultraviolet light. It is a high power LED chip with a luminous wavelength of 200nm to 450nm according to a certain proportion, forming a light source with a peak wavelength of 200nm to 450nm wavelength. UV LED surface light source has the characteristics of saving electricity, natural light, wide irradiation area, uniform spot, longer life, stronger illumination, and so on. LED type ultraviolet balanced light source is used for LCD, PCB and other exposure. It is more energy saving and environmental protection than traditional mercury lamp!
Small Area UV Glue Curing Machine for Marble Polish :
Wavelength : 365nm,385nm,395nm,405nm available.
Emitting window size |
wavelength |
irradiate distance |
UV intensity |
power |
20x25 mm |
365nm |
10mm |
6000mw/cm² |
60w |
20x25 mm |
395nm |
10mm |
12000mw/cm² |
60w |
Emitting window size |
wavelength |
irradiate distance |
UV intensity |
power |

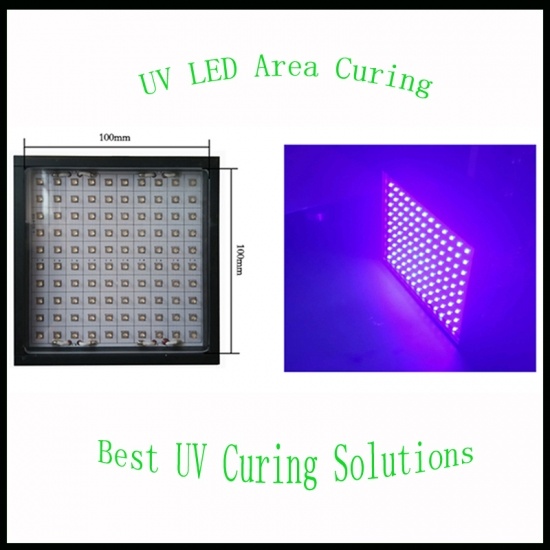

100x100 mm |
365nm |
10mm |
2000mw/cm² |
300w |
100x100 mm |
395nm |
10mm |
4000mw/cm² |
300w |
READY signal,Error
+5VOutput (indicator used)
Specifications of High Speed UV Light Curing Equipment for Lens Bonding :
Type
DSXUV-2
Channel
One
The size of controller
L384*W284*H90mm
Terminal I/O
Input
Pedal switch & serial RS-232
communication signals
Output
serial RS-232 communication signals
Cooling method of controller
Air cooling
Power supply voltage
AC100~240V±10%(50/60HZ)
Operation mode
Touch Panel
Ambient temperature and
humidity
Ambient temperature:-10℃—50℃
Relative humidity:25%—85%RH
Dimming/Exposure control
Digital Debugging,Manual exposure
control,Foot control or timing control
(0.1~9999S)
Setting operation
Using the operating switch is set,Power key parameter switch,RS-232
External Control
External input
Enter irradiation alone
Irradiation stop input,
Interlocking,All lights
illuminated input,Query
switch
External output
signal,Warning Output,Busy output(Various skinhead),
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
Curing Area of NEW High intensity 395nm light source UV LED Linear Curing system is 600*20mm and its Wavelength is 395nm.
