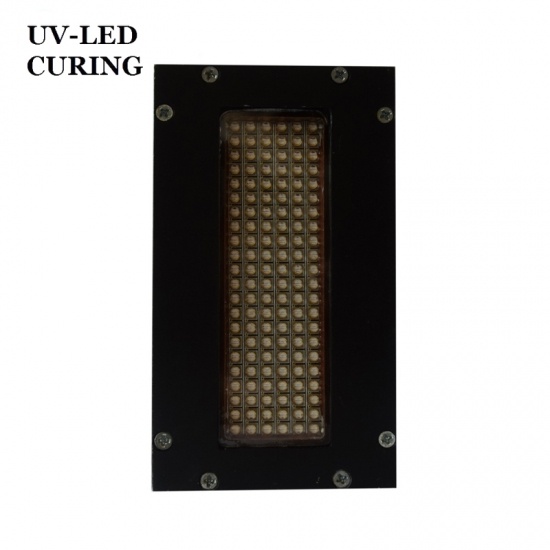

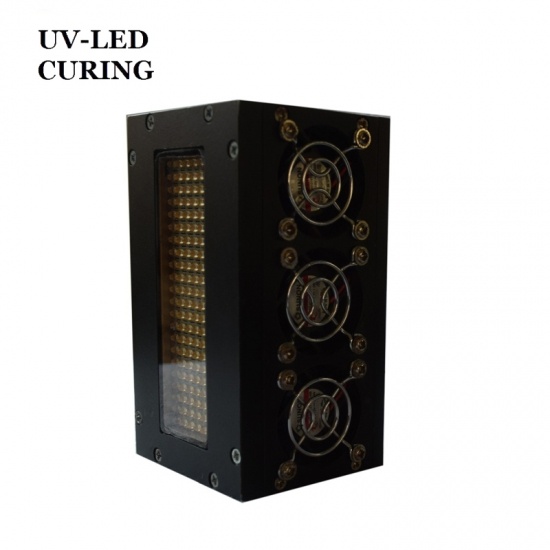

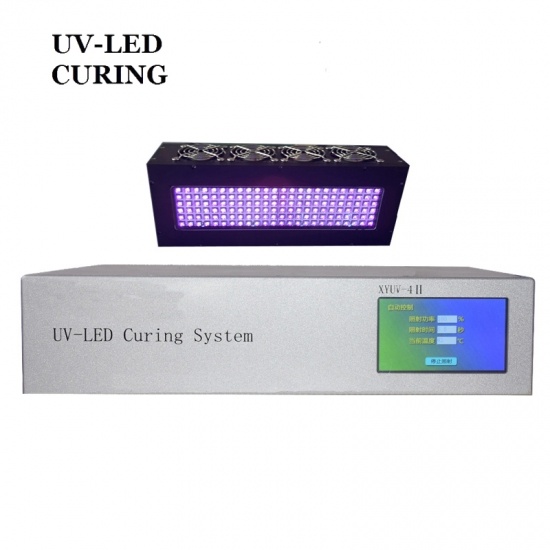

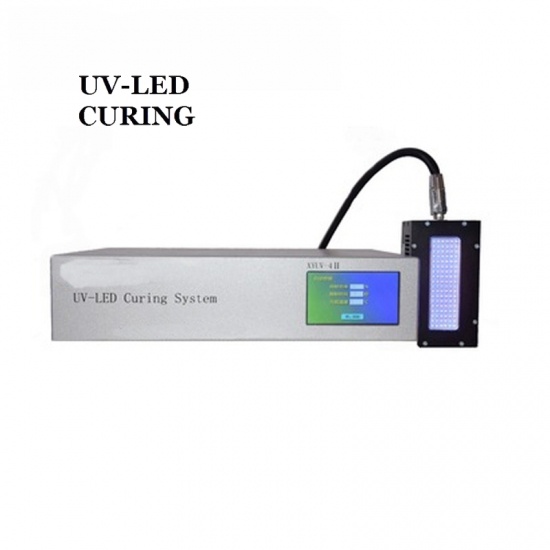

2000w Hight Power LED UV Curing System for UV Curing

2000w Hight Power LED UV Curing System for UV Curing

2000w Hight Power LED UV Curing System for UV Curing had been chosen for stable output, high uniformity, adjustable output, and so on. Extra-long life and Energy saving are its superiority.

model no. :
2000W UV Solidify Machine
Brand:
DSXUV
port of dispatch :
SHENZHEN
Payment :
T/T
original region :
CHINA
Lead Time :
15-30DAYS

contact now

Product Details

Our products, like 2000W High Power UV Curing Lamp for UV LED Curing System, are mercury free, safer and more environmentally friendly. High Power 2000W LED UV Curing System is simple equipment structure, occupied small place, easy installation. You don’t need to worry about its service life, reaches 20,000 hours.

Product Parametersof Hand-held UV Solidification Machine for Bongding :

Place of Origin	Guangdong, China (Mainland)	Brand Name	UV-LED CURING
Model Number	XYUV-4II	Rated Power	396w
Wavelength	365nm/375nm/385nm/395nm/405nm/415nm	Voltage	220V

Technical Data of High Quality UV Curing Lamps Controller for Screen Adhesive：
Type	XYUV-4Ⅱ
Channel	1
The size of controller	L384W284H90mm
Terminal I/O	Input	Pedal switch & serial RS-232 communication signals
	Output	Serial RS-232 communication signals
Cooling method of controller		Air cooling
Power supply voltage		AC100~240V±10%(50/60HZ)
Operation mode		Touch Panel
Ambient temperature and humidity		Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
Dimming/Exposure control		Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
Setting operation		Using the operating switch is set, Power key parameter switch, RS-232
External Control	External input	Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
	External output	REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
