Top Quality 365nm UV LED Curing Equipment Drying UV Glue

Top Quality 365nm UV LED Curing Equipment Drying UV Glue

100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.

model no. :
100*100mm UV Curing Machine
Brand:
DSXUV
port of dispatch :
ShenZhen
Payment :
T/T 100% before shipment
original region :
CHINA
Lead Time :
15-30days

contact now

Product Details

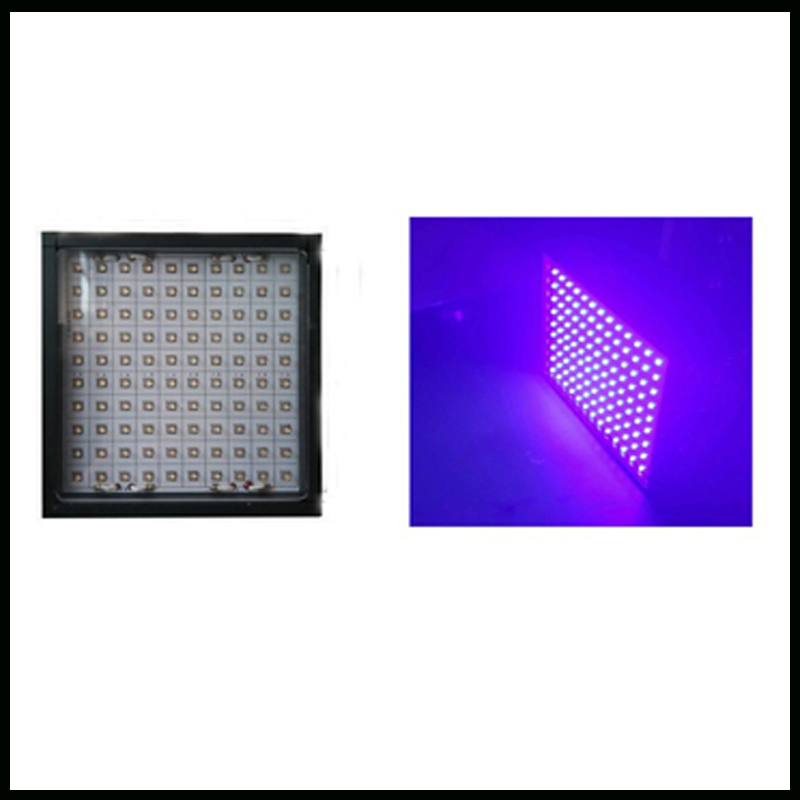

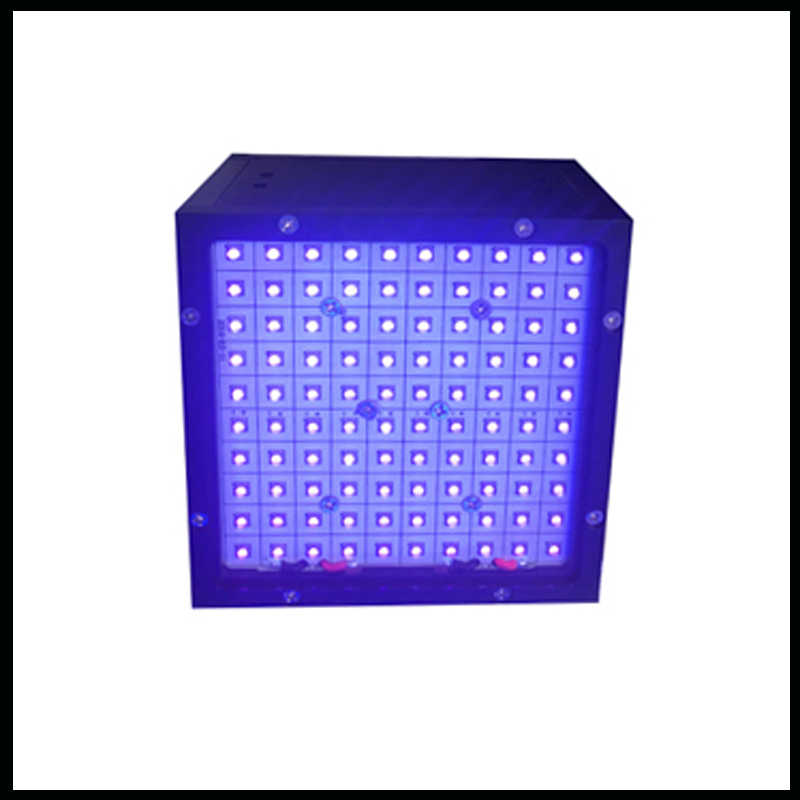

High Power Top Quality Power Saving 365nm UV LED Curing Machine to Curing UV Glue. It can be customized.This curing area is 100*100mm. As we know 365nm is the best wavelength to cure UV GLUE.That is it.

Description of Customized UV LED Curing Facility for Industry :

Long life span

25000-30000H

Energy saving

save 80% electrical than Mercury lamp

Environment friendly

NO Mercury. NO Ozone. NO warm-up time. Low temperature

UV output adjustment

From 1%-100%.

UV Glue Curing 100*100mm High Power UV LED Curing Machine UV LED Top Quality 100*100 Manchine

Main data of Stabilized LED Ultraviolet Curing Equipment for UV Adhesive :

Wavelength	365nm	Cooling way	air cooling
emitting area	100*100	Irradiation intensity	1200mw/c㎡
Irradiation distance	10-20mm

UV LED Curing Machine Saving 365nm

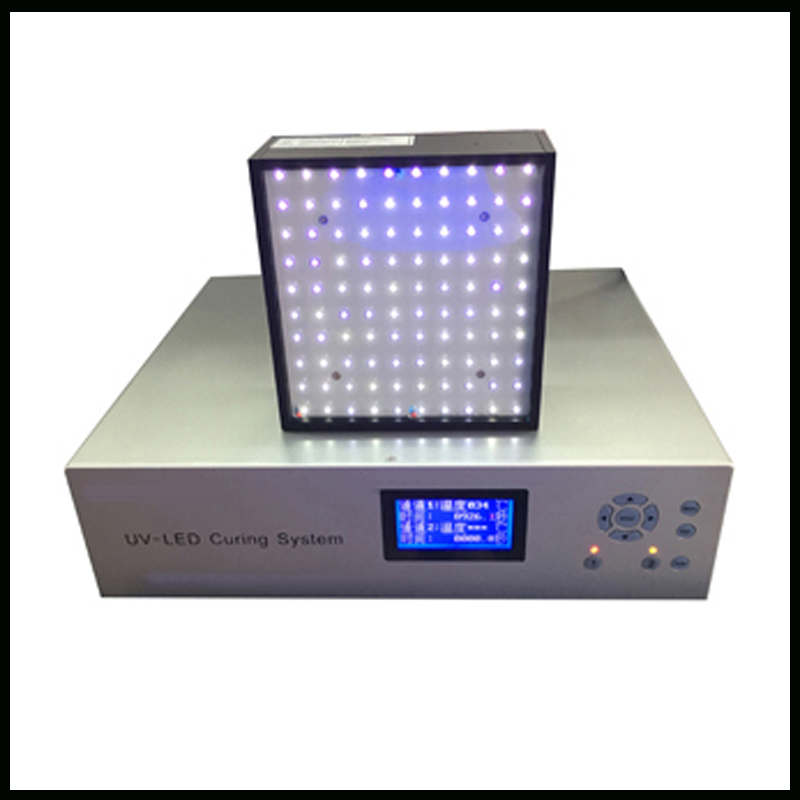

Contorller Specification of High Quality UV LED Paint Curing Systems :
Model		UVLED-CURE100100
Channel		two
The size of controller		L384W284H90mm
Terminal I/O	Input	Pedal switch & serial RS-232 communication signals
	Output	serial RS-232 communication signals
Cooling method of controller		Air cooling
Power supply voltage		AC100~240V±10%(50/60HZ)
Operation mode		Key Panel
Ambient temperature and humidity		Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH
Dimming/Exposure control		Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S)
Setting operation		Using the operating switch is set,Power key parameter switch,RS-232
External Control		External input	Enter irradiation alone Irradiation stop input, Interlocking,All lights illuminated input,Query switch
		External output	READY signal,Error signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator use

Irradiation Specification 100*100mm Small Area UV Curing Equipment :

Product model	wavelength	curing area	peak irradiance	cooling method	irradiation distance
HTLD-S100-100X100	395nm	100x100mm	1000mw/cm2	air cooling	10-20mm

Product Application of Home Made UV Exposure Light Source Drying UV Coating :

Product Advantages of 100*100mm LED UV Curing Ink Equipment :

1.Low energy consumption, about 55%-80% of the traditional type. It can reduce the cost.

2.Long life expectancy can reach over 25000h hours;

3. Eco-friendly: No lead and Hg(mercury) element , friendly to environment

4.No warm-up time;

5.Low temperature;

6.Easy to install and operate.

7.The company this anxious customers the way to do a good job in each case ,customers cost-effective products and services.
