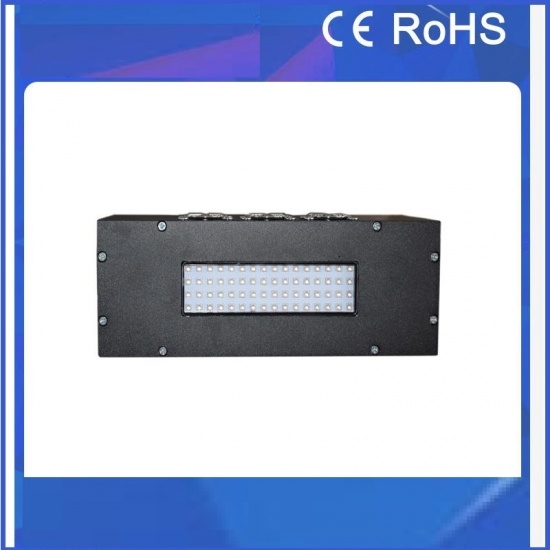

High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
model no. :
UV LED Dryer 30*120mmBrand:
DSXUVport of dispatch :
ShenZhenPayment :
T/Toriginal region :
CHINALead Time :
15-30daysHigh Power UV LED Dryer for UV Adhesive Curing System
UV LED 365nm UV Curing System contain two parts: Controller and Irradiation Head.
UV Curing Systems can be used for curing UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials. Any size of emitting window and Peak Irradiance can be customized .
Technical data of UV-LED Uniform Surface Illumination Light Source Controller :
Type |
SPACEUV2 |
||
Channel |
2 |
||
The size of controller |
L390*W350*H100mm |
||
Terminal I/O |
Input |
Pedal switch & serial RS-232 communication signals |
|
Output |
serial RS-232 communication signals |
||
Cooling method of controller |
Air cooling |
||
Power supply voltage |
AC100~240V±10%(50/60HZ) |
||
Operation mode |
Touch Panel |
||
Ambient temperature and humidity |
Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH |
||
Dimming/Exposure control |
Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S) |
||
Setting operation |
Using the operating switch is set,Power key parameter switch,RS-232 |
||
External Control |
External input |
Enter irradiation alone Irradiation stop input, Interlocking,All lights illuminated input,Query switch |
|
External output |
READY signal,Error signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator used)
|
Technical data of High Efficiency LED UV Cold Light Source :
product model | eimitting window size | wavelength | cooling method | peak irradiation | irradiation distance |
SPC30120 | 30X120mm | 365nm | air cooling |
1200mw/cm² |
10-20mm |
Prodct application of Rectangular UV Adhesive Curing Machine for 3D Print :
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
Curing Area of NEW High intensity 395nm light source UV LED Linear Curing system is 600*20mm and its Wavelength is 395nm.
