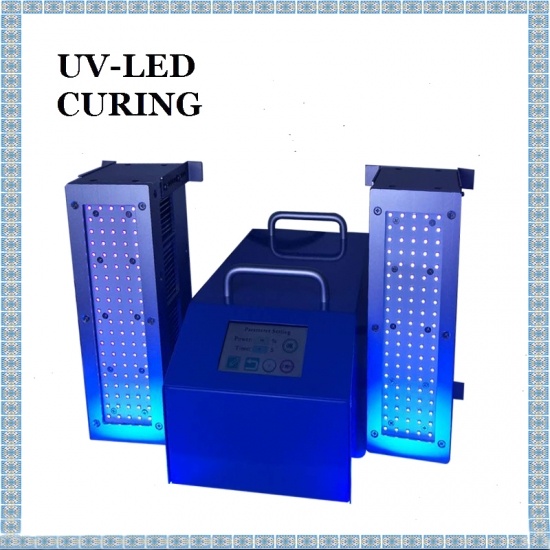

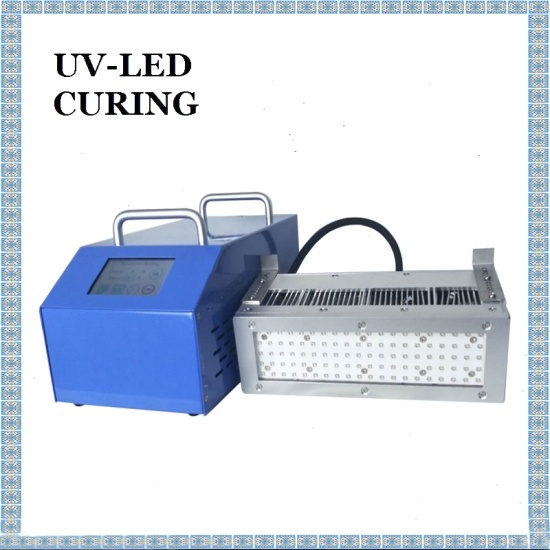

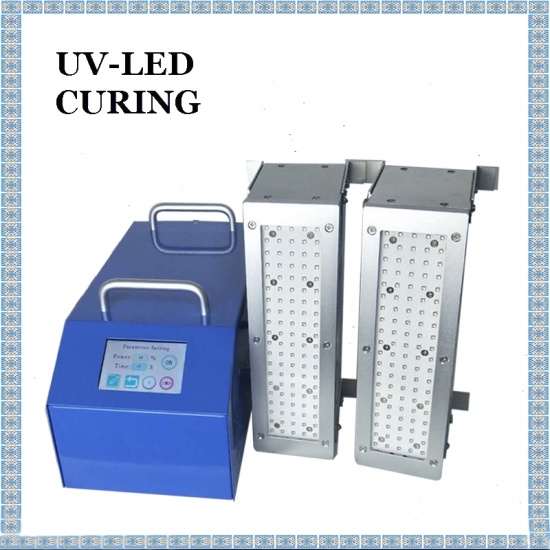

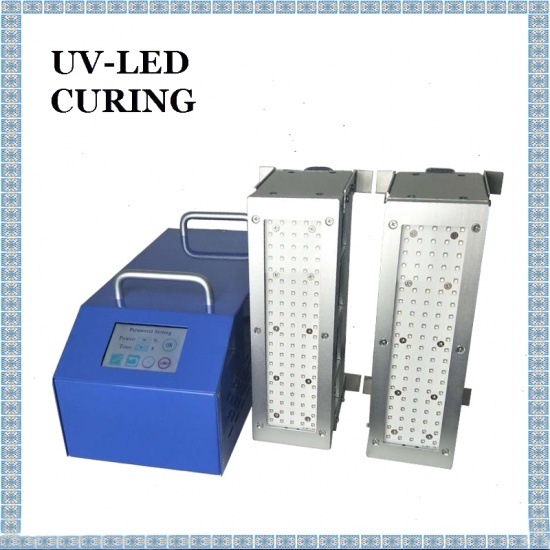

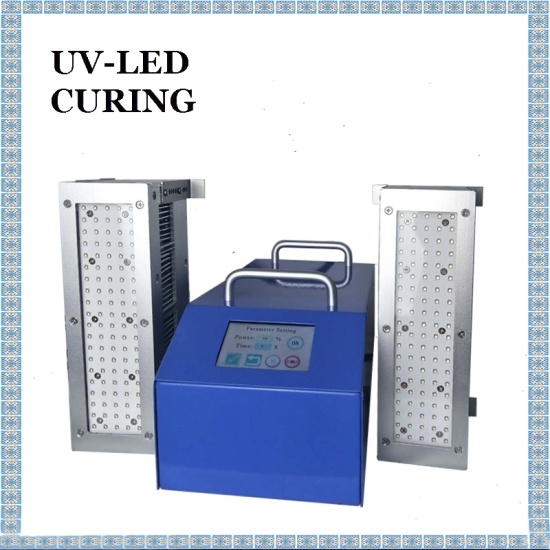

Curing loudspeaker UV Curing Light Source Equipment, with cold light source, non-damaging horn, fast speed curing, is dedicated designed for factory manufacturing sound.
model no. :
UV Curing Loudspeakers EquipmentBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaLED UV Exposure Curing Equipment, cold light source, non-damaging horn, fast speed curing, not only is appropriative designed for factory manufacturing sound, but also can cure UV glue, UV ink, UV varnish, 3D printing, etc. If your factory manufactures trumpets in bulk, curing horn process can be considered using this type of UV LED Light Curing Systems. Fast curing effect is recognized by many speaks manufacturers.
Controller Parameters of Cold Light Source Ultraviolet Exposure Curing Systems :
Outside dimension |
L320*W160*H130mm |
Power dissipation |
Lower than 5W in standby mode |
Cooling |
Air cooling |
Input power |
100-240V AC 50-60 HZ |
Material / Weight |
Sheet metal blue paint / 6.4kg |
Drive the number of luminous heads |
One mainframe drives two light sources |
RS232serial communication function |
Can query and adjust illumination, time, switch |
Control mode |
Manual switch control and pedal switch control |
LED time accumulation |
Actively record cumulative usage time |
External terminals |
It can be connected with single machine, PLC and other equipment for control and working status feedback |

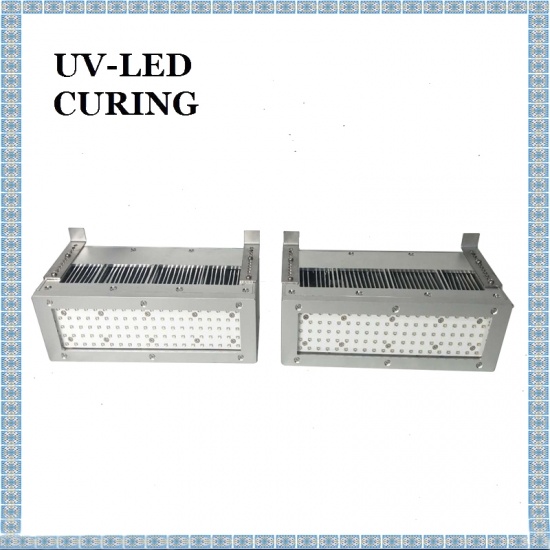

Luminescent Head Specifications of High Intensity UV LED Irradiation Curing Systems for UV Coating :
Luminous Size |
50 * 200mm |
Power |
600W with two heads |
Outsize dimension |
L 243*W78*H114mm |
Recommend highly |
5 mm |
Cooling |
Air cooling |
Wavelength |
365 nm-415mm selectable |
Material / Weight |
Sheet metal blue paint / 6kg |
Luminous Power(mW/cm2) |
1000 @ EIT |
Predicted service life |
20000 H |
||
Display |
LCD touch screen |
Cable length |
2 .5 m |
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
