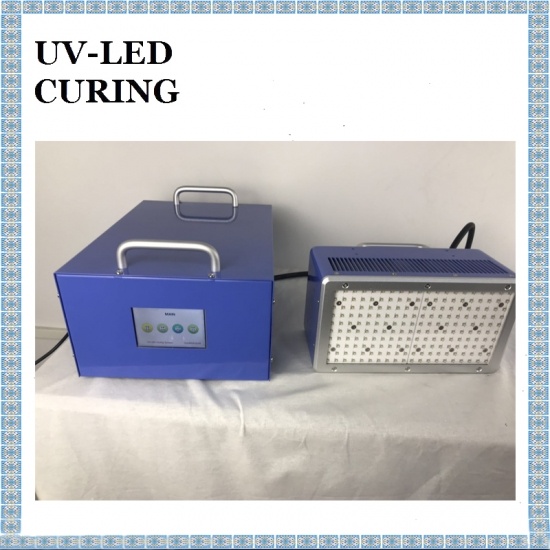

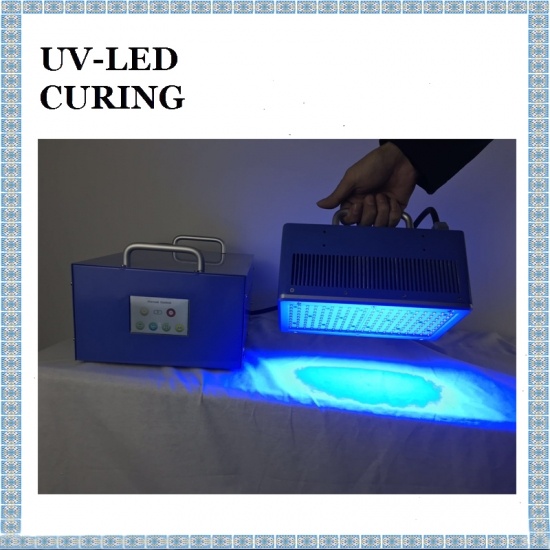

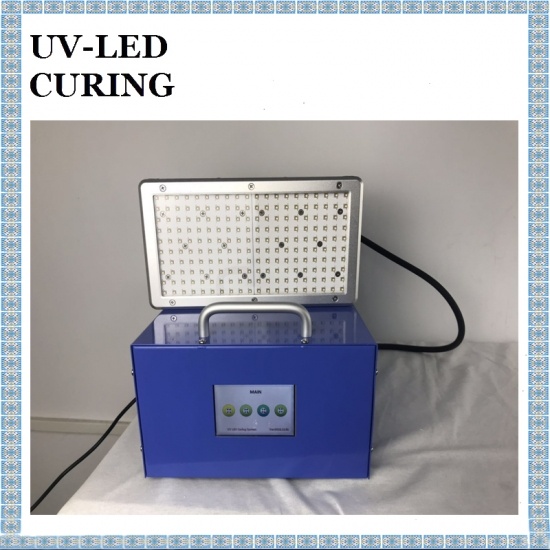

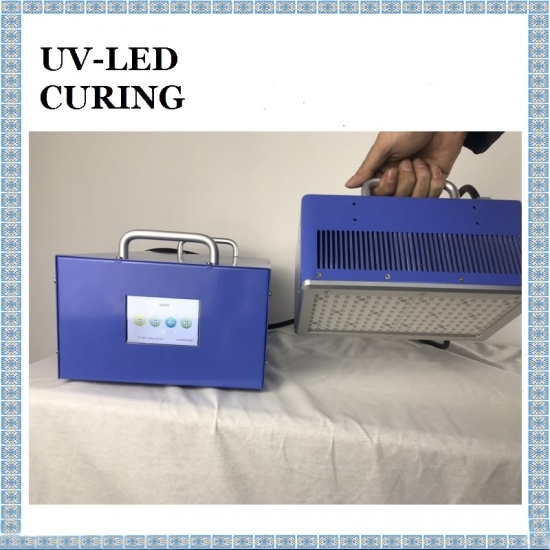

100*200mm Rapid Curing Standard UV LED Curing Light Source

100*200mm Rapid Curing Standard UV LED Curing Light Source

100*200mm Fast Curing Standard UV LED Curing Light Source is specially for curing TP LCD, Mobile Phone, LCD Screen, UV Glue. Customized 100*200mm UV Curing System is low temperature, rapid curing.

model no. :
100*200mm UV Curing Equipment
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% Before Shipment
original region :
China

contact now

Product Details

100*200mm Rapid Curing Standard UV LED Curing Light Source is specially for curing TP LCD, Mobile Phone industry, LCD Screen, UV Glue. Customized 100*200mm UV Glue Solid Edge Bonding UV Curing Equipment is low temperature, rapid curing.

Characteristics of 100*200mm Portable LED Ultraviolet Curing Systems for Bonding and Drying :

1.DSX100200 UV 365nm low temperature fast UV curing equipment can be very good for the mobile phone industry, TP industry, LCD industry UV adhesive curing.

2.No high temperature will be generated, and no loss will be caused to components.

3.DSX100X200mm UV 365nm, at present UV LED Curing Light Source System is an indispensable standard in mobile phone parts manufacturing industry.

High Quality UV Paint Curing Systems Manufacturers from China

Applications of Low Cost UV Light Curing Equipment for Coating :

1.It can be used in laser UV curing package. Laser UV package curing light source.

2.PCB industry LED UV photo-curing application

3.Mobile phone components assembly (camera lens, handset, microphone. Shell, LCD module, touch screen coating, etc.). LCD TP industry UV glue curing equipment can be choose DSX100*200

4.Hard disk magnetic head assembly (packaging of reading and writing head, fixing of gold wire, bearing, coil, bonding of chip, etc.). Disk curing light source equipment, chose DSX100X200 please.

5.Optical communication field : passive components [WG/AWG/SPLITTER/ISOLATOR/COUPLOR]. optical fiber curing equipment in 5G era, optical fiber ink coating UV LED curing equipment supplier, please contact Jennifer : +86-18924372460

6.PCB industry : components, capacitors, chips, plugins, inductors, etc.

7.Printing industry : ink and varnish curing , such as plate printing, label printing, rotary printing.

8.Medical instruments (syringe, catheter, endoscope) are bonded by UV curing.

9.Mobile phone, remote control, computer keyboard, calculator keys UV ink screen drying.

10.Security camera UV glue bonding small parts. Camera module UV glue curing, camera module bonding can be used DSX100x200 curing equipment.

Rectangular Large Area UV LED Curing Machine Exporters

Parameters of Large Area UV Curing Machine for 3D Printing :

Controller of High Power Ultraviolet LED Curing Equipment without Ozone:

Outside Dimension	L320W220H130mm	Power	20W
Cooling Method	Air cooling	Input power	100-240V AC 50-60 HZ
Material / Weight	Blue baking paint sheet metal / 6.4kg	The number of drive LED	One host drive and one irradiation head
RS232 serial communication function	Can query and adjust illumination, time, switch	Control mode	Manual, pedal
LED time accumulation	Active recording of accumulated usage time	External terminal	It can be connected with single chip, PLC and other equipment for control and working statues feedback.

Customized Ultraviolet Curing System at Best Price in Market

Luminous Head Specification of Large Area UV Curing Machine for UV Coating:

Luminous Size	100 * 200mm	Power	400W
Outside dimension	L 234W130H111mm	Recommend highly	5 mm
Cooling method	Air cooling	Wavelength	365 nm
Material / Weight	Blue baking paint sheet metal / 4.2kg	Luminous power（mW/cm2）	1000 @ EIT
Material / Weight	Blue baking paint sheet metal / 4.2kg	Predicted service life	20000 H
Display	LCD screen	Length of the cable	2 .5 m
