DSX-50x50 Cold Light Source UV Light Curing System without Ozone is used in bonding, curing UV glue, ink, adhesive, epoxy resin, printing.
model no. :
High Intensity UV Coating MachineBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

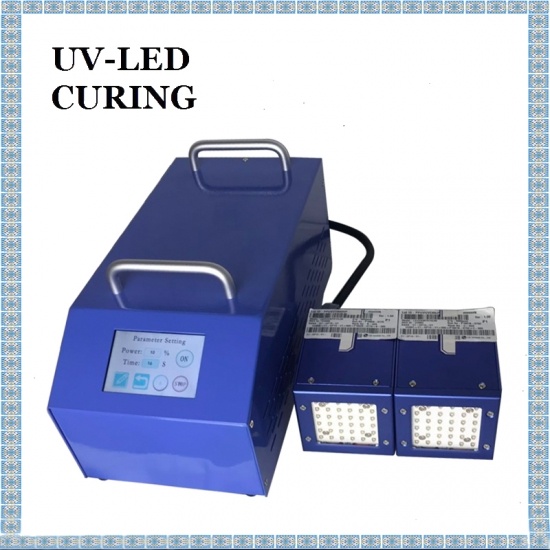

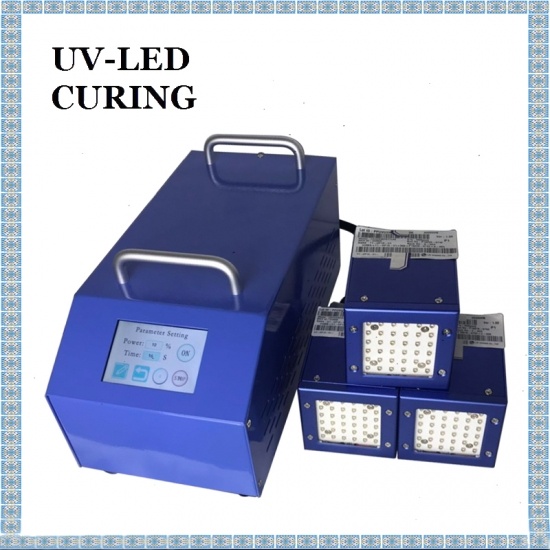

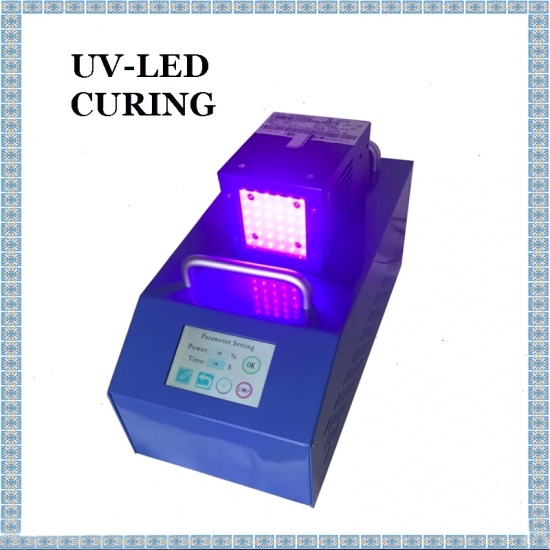

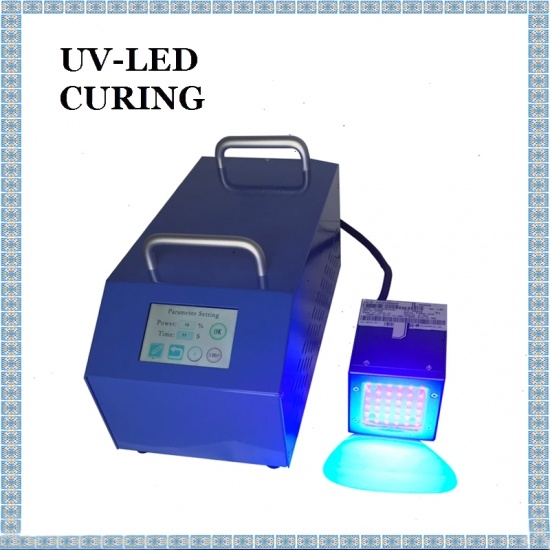

ChinaIndustrial Specialized DSX-50x50 LED UV Ink Drying Systems meet the requirement of four stations at the same time and can also work independently. A four-channel LED UV Curing Machine is a controller that drives four curing end irradiating heads. The four irradiation heads may be in four different ultraviolet bands or the same wavelength.
Controller Specification of High Intensity UV LED Printing Machine for 3D Print :

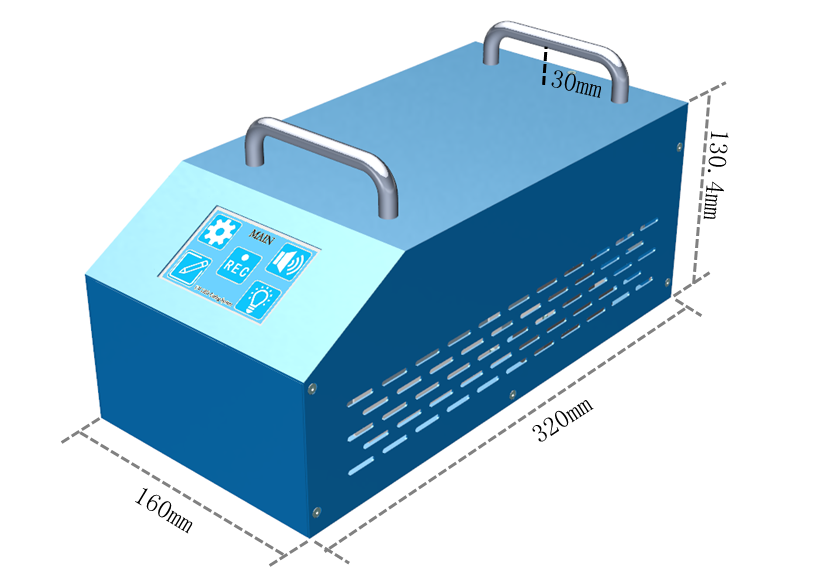

Outside Dimension |
L320*W160*H130.4mm |
Power Consumption |
50W |
Cooling |
Air cooling |
Power Input |
100-240V AC 50-60 HZ |
Material / Weight |
Black sheet metal / about 3.5 kg |
Drive the Number of Luminous Heads |
One or more that can be independently controlled |
Set the Lock |
Built-in password changable |
Display and Operation Mode |
Touch screen, adjustable time, strength, mode |
RS232 Serial Port Communication |
Query and adjust intensity, time, mode |
External Terminals |
Can be connected with single machine, PLC and other equipment for control and working state feedback |
Error Alert |
Overheating, connection failure warning |
LED Time Accumulation |
Actively record cumulative usage time |
Irradiation Area |
50 * 50mm |
Electric Power |
100W |
Outside Dimension |
L78 * W112 * H8 mm |
Recommend Highly |
5-20 mm |
Cooling |
Air cooling |
wavelength |
365 / 385 / 395 / 405 |
Material / Weight |
Sheet metal / 0.8kg |
Luminous Power (mW/cm2) |
1000-2000mW/cm2 by EIT |
Predicted Service Life |
20000 H |
||
Power Supply Parameters |
130V 0.6A |
Length of Cable |
2 / 5 m |
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
