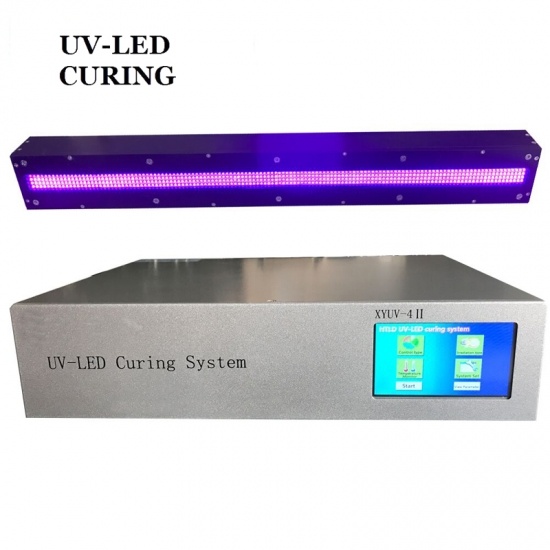

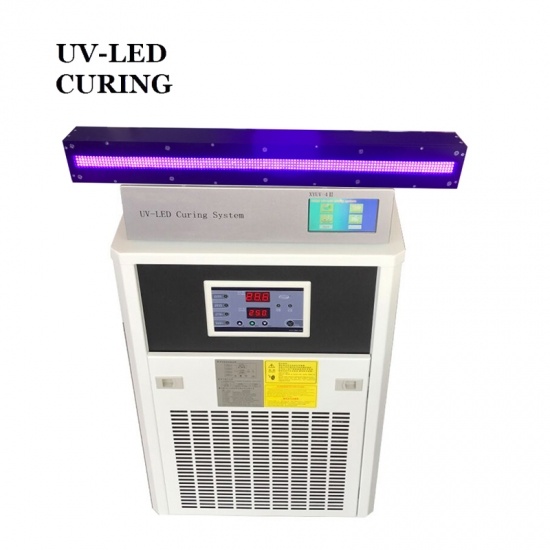

Water Cooling System UV Curing Lamp for Offset Printing Machine can improve the surface handness of the coating and bright the color.
model no. :
395nm LED UV Curing MachineBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :
15-30 DAYSIf you choose our product, Narrow LED UV Curing Equipment Instant Curing Printing, you will find that it has fast curing speed, high production efficiency. Water Cooling System UV LED Offset for Printing Machine is curing in normal temperature, is suitable for plastic work-piece, and do not produce thermal deformation.
Product Parameters of 395nm UV LED Printing Machine for UV Varnish :
Type |
UV LED |
Brand Name |
UV-LED CURING |
Model Number |
XYUV-4II |
Place of Origin |
Guangdong, China (Mainland) |
Chip Material |
AlGaInP |
Emitting Color |
purple |
Luminous Intensity |
12000MW/CM2 |
Luminous Flux(lm) |
30-40lm |
Optical Attenuation(%) |
10 |
Power |
0.1W |
Power Dissipation |
1584 |
Viewing Angle(°) |
120 |
Color Rendering Index(Ra) |
12 |
Color Temperature |
365nm/395nm |
Operating Temperature(℃) |
-10 - 50 |
Storage Temperature(℃) |
-10 - 50 |
Certification |
CE, RoHS |
Wavelength |
365nm/375nm/385nm/395nm/405nm/415nm |
Technical Data of Water Cooling UV Curing Equipment Controller for Floor Coating :
Type
XYUV - 4Ⅱ
Channel
1
The size of controller
L384*W284*H90mm
Terminal I/O
Input
Pedal switch & serial RS-232 communication signals
Output
Serial RS-232 communication signals
Cooling method of controller
Water cooling
Power supply voltage
AC100~240V±10%(50/60HZ)
Operation mode
Touch Panel
Ambient temperature and humidity
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
Dimming/Exposure control
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
Setting operation
Using the operating switch is set, Power key parameter switch, RS-232
External Control
External input
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
External output
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

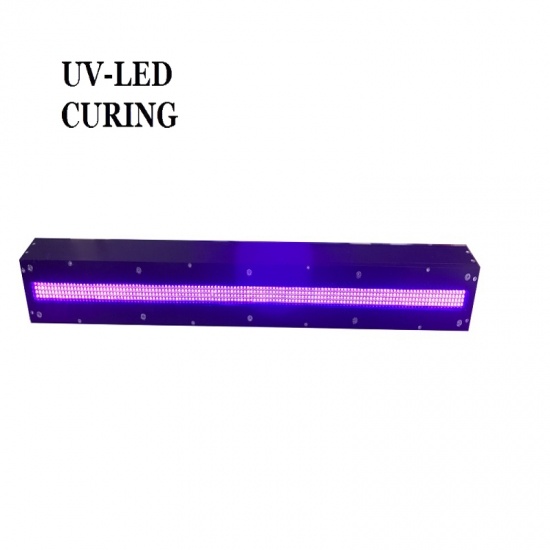

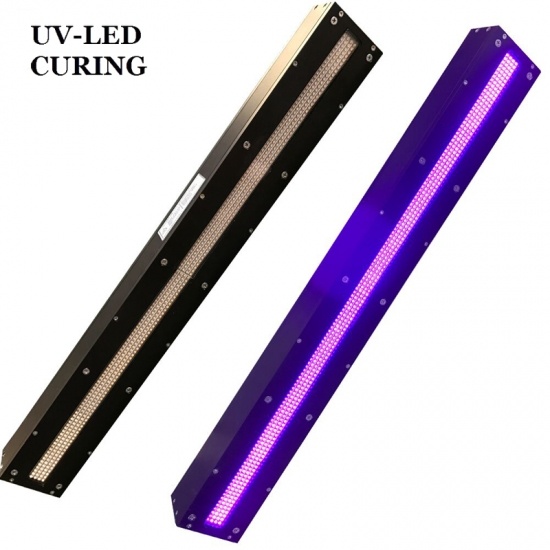

Technical data of 395nm Linear LED UV Curing Light Source :
Product Model
Emitting Window Size
Wavelength
Cooling Method
Peak Irradiation
Irradiation Distance
UV-LED CURING
S528-20*600
20*600mm
395nm
Water Cooling
12000mw/cm2
10-20mm
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
