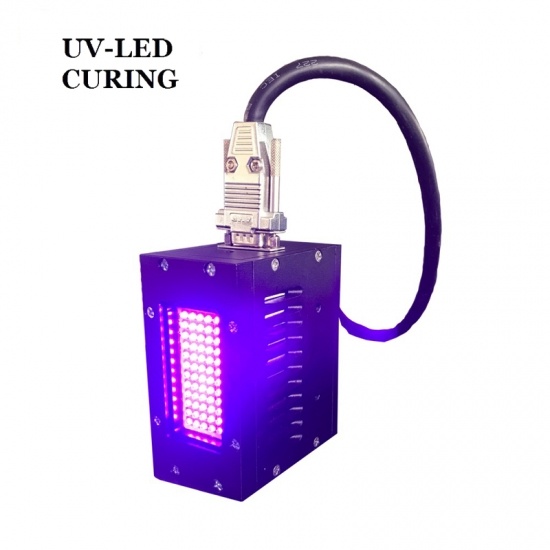

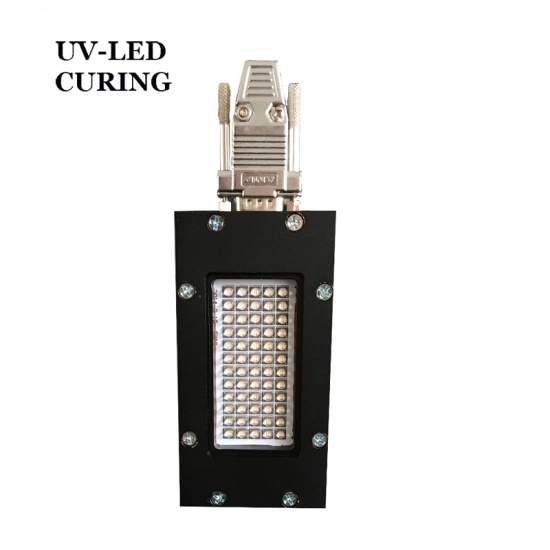

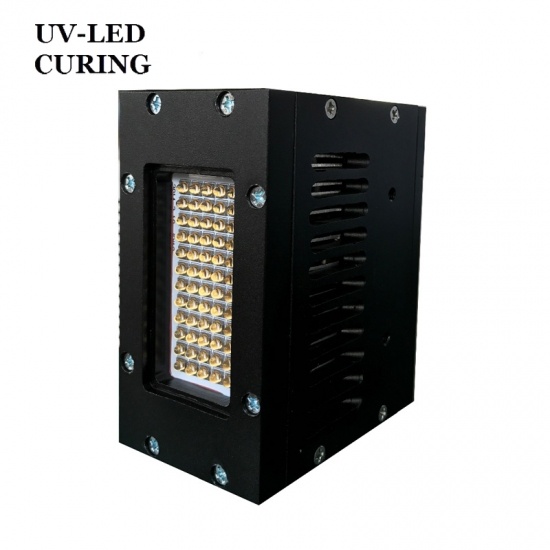

Air Cooling LED UV Curing Light Source is a simple equipment stracture. Usually, it would not produce harmfui ultraviolet radiation without thermal radiation, and would reduce the heat generated by the curing process.
model no. :
Air Cooling UV Curing LampBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :

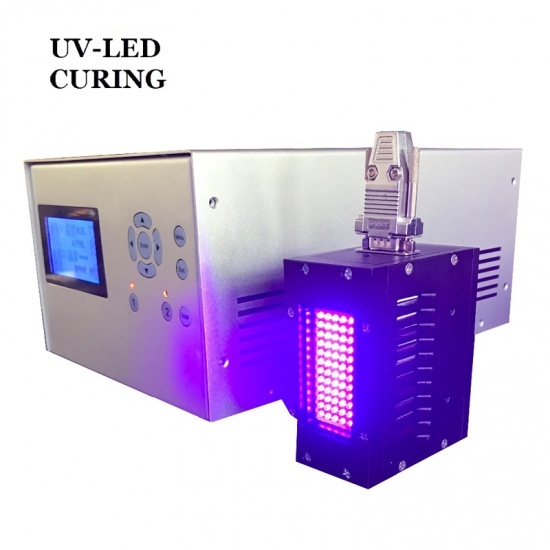

15-30 DAYSAutomatic LED UV Curing Equipment Curing UV Adhesive contain two parts: Controller and Irradiation Head. So it need to be made up high quality and good facility. But, our company did it.
Product Parameters of High Power LED UV Curing System Printing Machine :
Type
UV LED
Model Number
SZUV-II
Chip Material
AlGaInP
Emitting Color
Blue
Luminous Intensity
6w /cm2
Luminous Flux(lm)
30-40lm
Optical Attenuation(%)
10
Power
0.1W
Power Dissipation
200
Viewing Angle(°)
140
Color Rendering Index(Ra)
12
Wavelength
365 - 405nm
Operating Temperature(℃)
10 - 50
Storage Temperature(℃)
10 - 50
Place of Origin
Guangdong, China (Mainland)
Brand Name
UV-LED CURING
Certification
CE, RoHS
Wavelength
365nm/375nm/385nm/395nm/405nm/415nm
Technical Data of Air Cooling LED Ultraviolet Curing Machine Controller:
Type
XYUV - Ⅱ
Channel
1
The size of controller
L304*W254*H135mm
Terminal I/O
Input
Pedal switch & serial RS-232 communication signals
Output
Serial RS-232 communication signals
Cooling method of controller
Air cooling
Power supply voltage
AC100~240V±10%(50/60HZ)
Operation mode
Touch Panel
Ambient temperature and humidity
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
Dimming/Exposure control
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
Setting operation
Using the operating switch is set, Power key parameter switch, RS-232
External Control
External input
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
External output
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

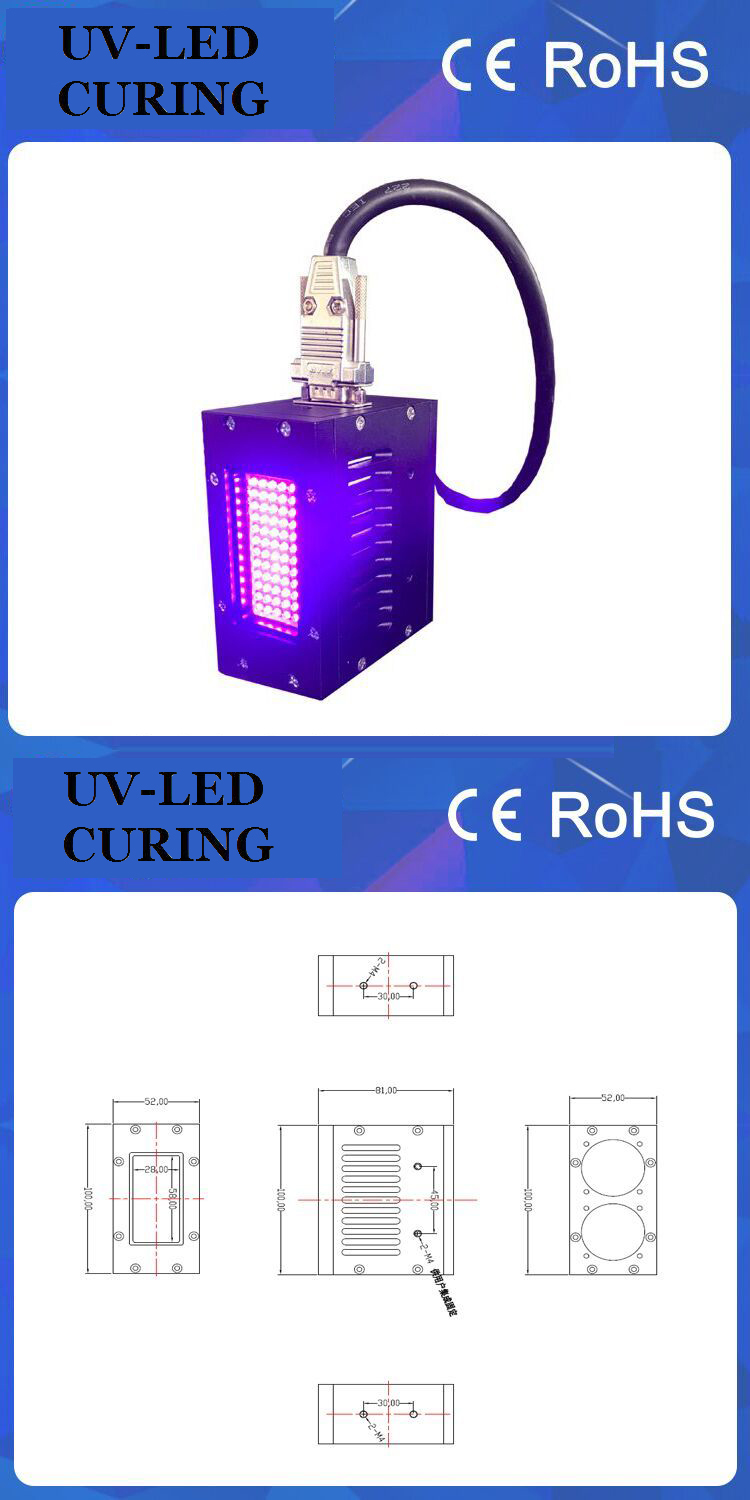

Technical data of Low Cost LED UV Curing Lamp for UV Glue :
Product Model
Emitting Window Size
Wavelength
Cooling Method
Peak Irradiation
Irradiation Distance
UV-LED CURING
S60-25*60
25*60mm
395nm
Air Cooling
6000mw/cm2
10-20mm
Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
