Three-Sided LED UV Curing Machine UV Adhesive Curing Equipment Three-Sided LED UV Curing Machine UV Adhesive Curing Equipment Three-Sided LED UV Curing Machine UV Adhesive Curing Equipment

Three-Sided LED UV Curing Machine UV Adhesive Curing Equipment

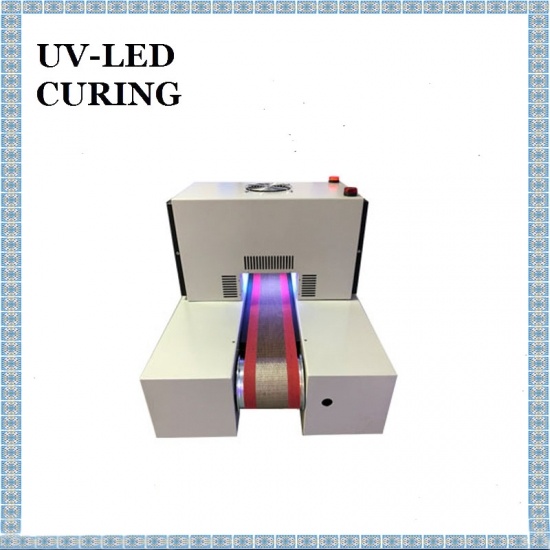

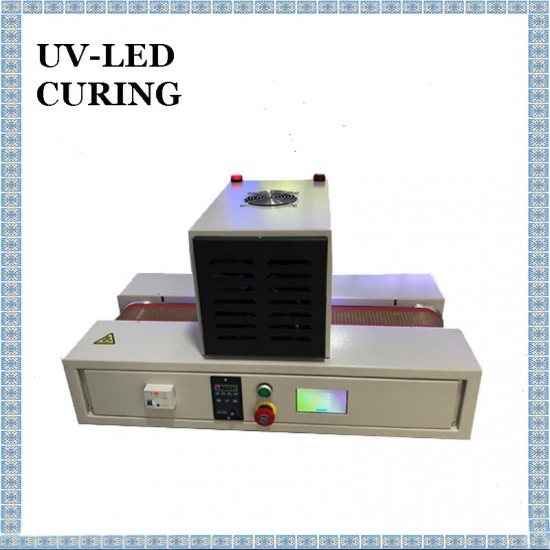

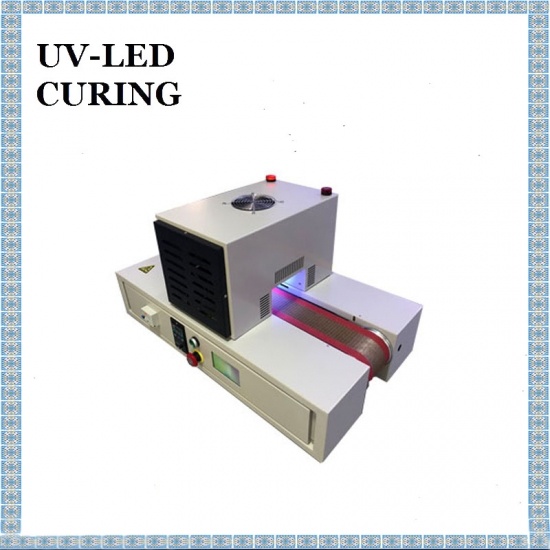

Three-Sided LED UV Curing Machine is a high-performance three-sided UV curing machine system designed for UV adhesive curing. The system mainly includes control system, UVLED head and conveyor belt.

  • model no. :

    Three-Sided UV Curing System
  • Brand:

    DSXUV
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

Three-Sided LED UV Curing Machine UV Adhesive Curing Equipment is a high-performance three-sided UV curing machine system designed for UV adhesive curing. The system mainly includes control system, UVLED head and conveyor belt. It is illuminated by top and two side light sources and has good curing effect. And the light source area can be customized.



Specification Sheet

Wavelength :  365nm

Model : DSX-3S228-100X100-365

Electric power :  684W

Optical power density :  1000mW/cm2 above, 800mW/cm2 on the left and right

Irradiation area :  100x100mm above, 120x30mm left and right

Irradiation height :  5-10mm

Cooling method:  Air cooled

Overall size:  L800mm*W450mm*H410mm



Product Overview

The top irradiation area is 100mm*100mm, the irradiation area on both sides is 120mm*30mm, no infrared radiation, cold light source, suitable for curing of various heat sensitive materials. It does not need to be warmed up at the start-up, it is ready to use and instantly reaches the maximum light intensity. Power saving, easy to control. Contains no mercury, does not produce ozone, safe and environmentally friendly infrared sensor intelligent control, start and stop control on demand.



Advantage :

1.Photoelectric induction, instant on/off, no preheating required.

2.Low energy consumption, just 20% of the ordinary UV lamp.

3.No mercury, no Ozone, eco-friendly.

4.Cold light source, low temperature.

5.Stable output, high uniformity


Three-Sided UV Curing System


High Power Three-Sided UV Conveyor
