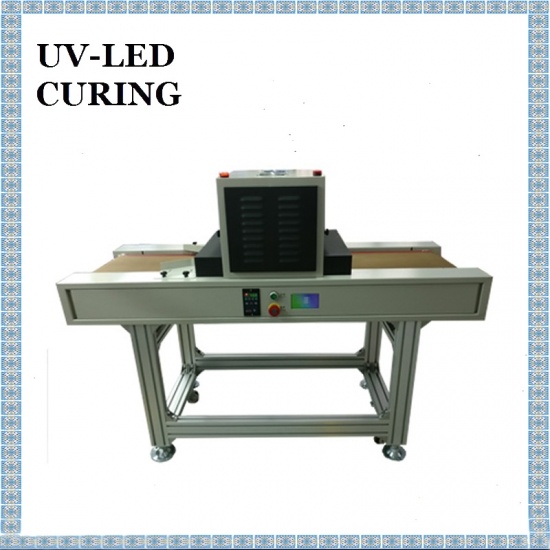

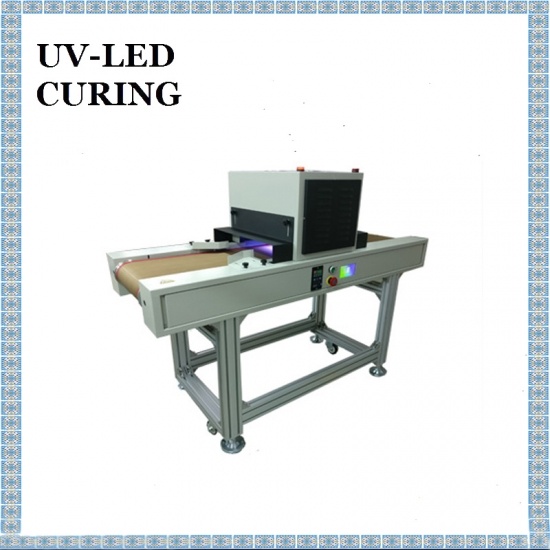

200x100mm Vertical Table LED UV Curing Machine for Screen Printing

200x100mm Vertical Table LED UV Curing Machine for Screen Printing

Vertical Table LED UV Curing Machine The UV spectrum wavelength is 365nm. The effective curing area is 200X100mm, which supports external signal input and triggering.

model no. :
200x100mm UV Conveyor
Brand:
DSXUV
port of dispatch :
SHENZHEN
Payment :
T/T 100% Before Shipment
original region :
CHINA

contact now

Product Details

200x100mm Vertical Table LED UV Curing Machine for Screen Printing The curing device is simple, easy to maintain, and the equipment associated with it is generally smaller than traditional coating equipment, and the equipment investment is low. Coating equipment failure is low, because UV coating does not have ultraviolet radiation will not cure, so will not clog and corrode equipment, coating tool and pipeline cleaning convenient, equipment failure rate is low.

Specification Sheet

wavelength: 365nm

Model: DSX-S200-200X100-365

Electric power: 600W

Optical power density: 1000MW/CM2

Irradiation area: 200X100mm

Irradiation height: 20mm

Cooling method: Air cooled

Overall size: L1500mm*W570mm*H1080mm

Product Overview

UVLED curing machine, replacing traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing of various heat sensitive materials UV glue, infrared Sensing intelligent control, start and stop control on demand.

Advantage :

1.Extra-long life: 25000h~30000h

2.Energy saving: save 80% electrical energy than Mercury lamp

3.UV output adjustable: from 1% to 100%

4.Multiple control modes: constant current, peal control, intelligent optical and manual modes

5.Photoelectric induction, instant on/off, no preheating required.
