Customized UV Curing Machine Desktop UV Dryer Machine for UV Curing

Customized UV Curing Machine Desktop UV Dryer Machine for UV Curing

Desktop LED UV Dryer Machine for uv curing. PCB/PCBA Conformal Coating curing. SMT component protection and reinforcement. Medical instrument UV glue curing.

model no. :
LED UV Dryer Machine
Brand:
DSXUV
port of dispatch :
ShenZhen
Payment :
T/T 100% before shipment
original region :
CHINA
Lead Time :
15-30days

contact now

Product Details

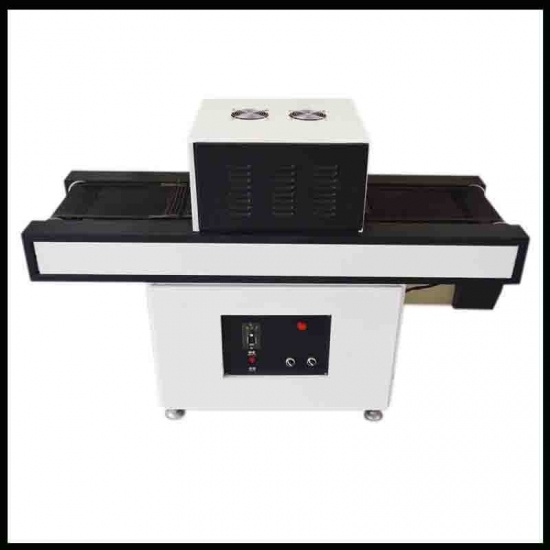

Desktop LED UV Dryer Machine for curing PCB/PCBA Conformal Coating, SMT component protection and reinforcement, Medical instrument, UV glue curing.

Describe of Desktop LED UV Curing Machine :

Long life span	25000-30000H	Energy saving	save 80% electrical than Mercury lamp
Environment friendly	NO Mercury. NO Ozone.NO warm-up time.Low temperature	UV output adjustment	From 1%-100%

LED UV Dryer Machine

Technical Data of Desktop UV Curing Machine Irradiation Light Head:
Wavelength(±5nm)	365nm/385nm/395nm/405nm
Curing Area	300*200mm/Other Sized Available
Electronic Power	1100w
Input voltage	220VAC 50Hz / 60Hz
Cooling method	Air cooling
Life	>10000H
Conveyor Speed	100-400mm Adjustable
Irradiation distance	10-100mm adjustable
Optic power	800mw/cm²(10mm irradiation distance)
Recommend Irradiation Distance	10-100mm

Control System Features of Desktop UV Dryer Machine :

1: Panel display, touch operation, real-time monitoring of the head of the working state

2: Intensity adjustable from 0-100%

3: Temperature monitoring

4: Infrared sensor control, work mode selection

5: Whole machine size: L1200*W820*1100mm

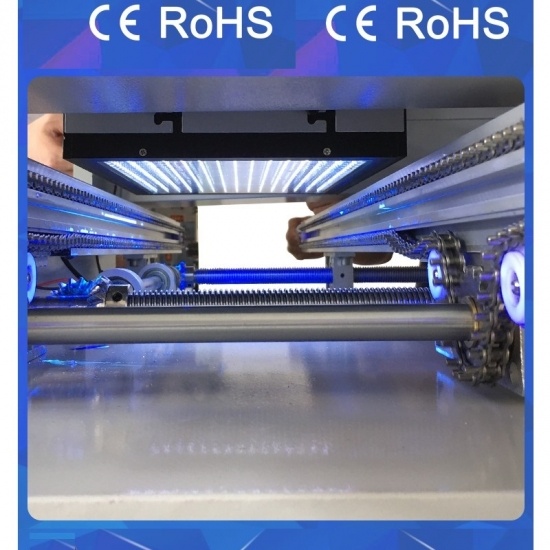

UV LED Curing Machine Description

size of the LED UV curing light	180mmx290mm	conveyor belt adjustable distance	10-50mm
power density	1300mw / cm² at 365nm,2000mw/cm² at 395nm	intensity adjustable	1% -100%
Reflector	aluminum reflector built-in import reflective aluminum reflector, high efficiency, long life	Belt Width	300mm
Conveyor Material	Teflon mesh belt or stainless steel mesh belt for choice	Conveyor speed	1-10 m stepless adjustable
LED Lamp beads	without warm-up, and immediately began to solidify work	Drum	knurled surface to ensure smooth transportation
Total Cooling	air-cooled	Machine material	cold rolled sheet table machine spray
Appearance	plastic spraying computer white and black and gray	Machine Specification	1500L * 750W * 800Hmm
Power Connection	220VAC 50HZ

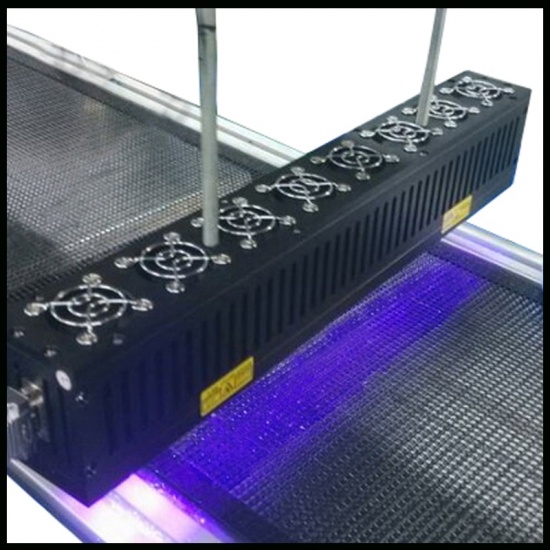

If you have conveyor, UV LED Curing Light can be offered for you. The size of the UV LED Light is optional.
