500*400mm Large Area UV Light Source LED UV Curing Machine 500*400mm Large Area UV Light Source LED UV Curing Machine 500*400mm Large Area UV Light Source LED UV Curing Machine

500*400mm Large Area UV Light Source LED UV Curing Machine

500*400mm Large Area UV Light Source LED UV Curing Machine is a high performance UVLED curing machine system designed for medical catheter filter UV adhesive curing.

  • model no. :

    500*400mm LED UV Curing Machine
  • Brand:

    DSXUV
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

500*400mm Large Area UV Light Source LED UV Curing Machine is a high performance UVLED curing machine system designed for medical catheter filter UV adhesive curing. The system mainly includes control system, UVLED irradiation head and conveyor belt. It is illuminated by 500*400mm surface light source and has good curing effect. The whole machine and light source area can be customized.


Specification Sheet

1. UVLED head

Wavelength: 365nm

Model: DSX-SL600-500X400-365

Curing area: 500X400mm

Optical power density: 600mW/cm2

Recommended irradiation distance: 10-100mm

Dimensions: L570*W456*H88mm


2. Control System

Panel display, touch operation, real-time monitoring of the working state of the head

Power 0-100% adjustable, conveyor speed adjustable

Temperature monitoring

Infrared sensing control, working mode selection

Machine size: L1500*W770*H1100mm


Product Overview

* The heat radiation is small, the irradiation machine can choose different wavelengths such as 365/395/405nm, no infrared spectrum is emitted, no high temperature heat.

* Produce high-energy, high-purity ultraviolet light, and use the latest high-energy ultraviolet LED to quickly complete the curing of UV glue, greatly improving production efficiency.

*Energy saving and environmental protection, low power consumption of LED, no need to preheat when used, instantaneously reach 100% high power, that is, power can be adjusted, that is, on or off, power saving ratio ≥1:6, high efficiency of ultraviolet photoelectric conversion, and not It contains mercury, no dark ultraviolet skin cancer, and no ozone. It is a safer and more environmentally friendly alternative to traditional light sources.

*Integrated design, equipment installation is convenient and fast, just use the light source to install, the height of the light source can also be adjusted according to specific needs.

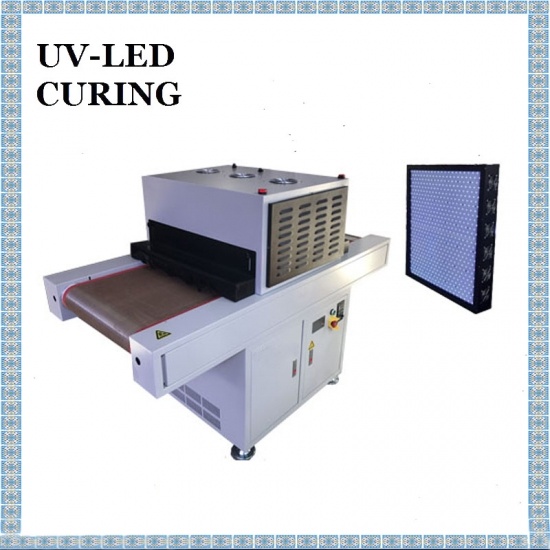

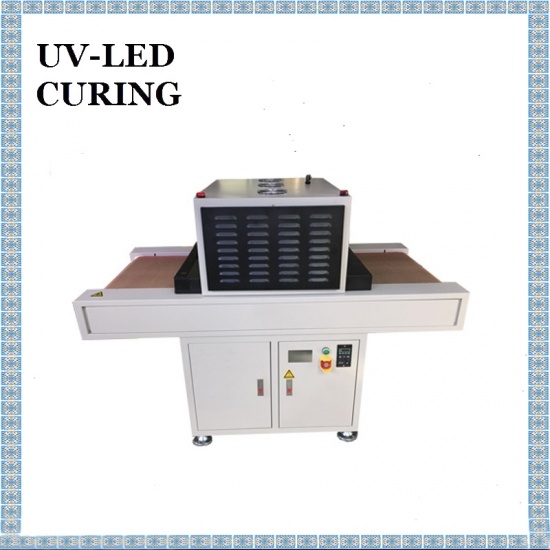

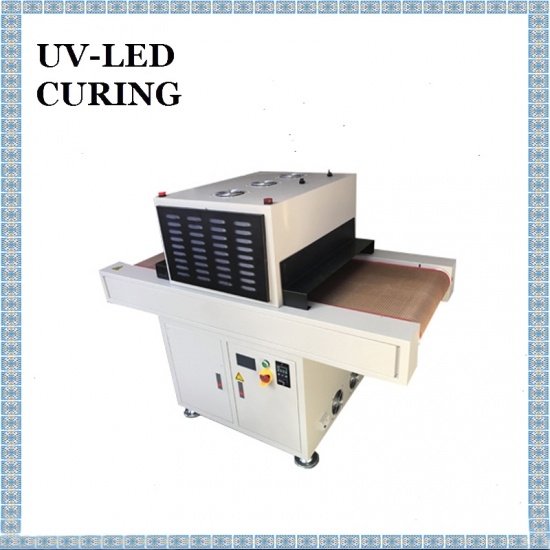

Large Area Curing LED UV Conveyor Machine


Large Area UV Curing Light Source
