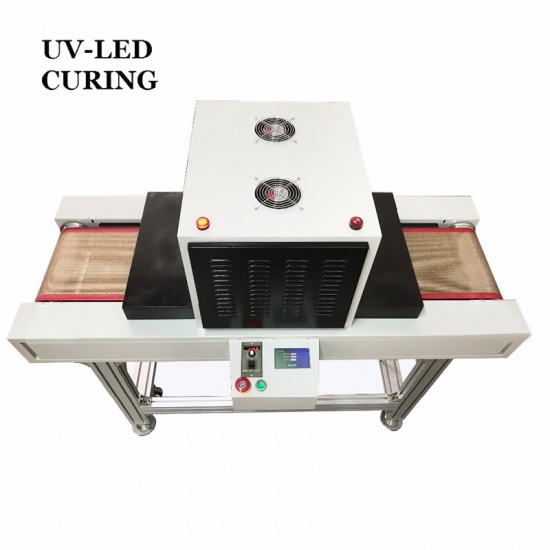

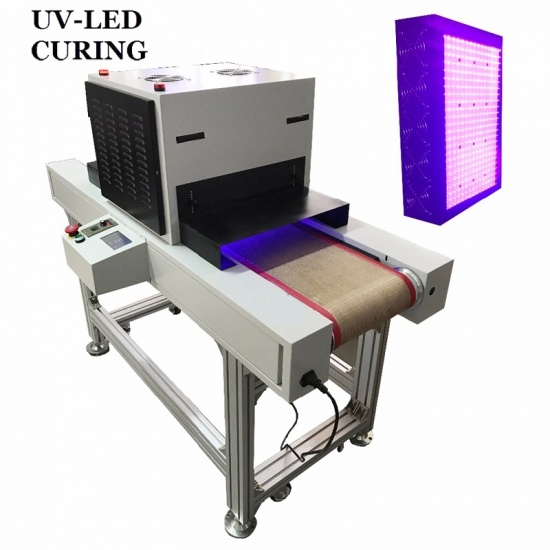

UV LED Curing Machine for Label Printing is 1000W, for offset printing. It most used for machine facilities.
model no. :
UV LED 1000w Offset Printing Curing MachineBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :
15-30DAYSUV LED 1000w Offset Printing Curing Machine is high power, but it can save energy and reduce environment pollution. At the same time, our company chose UV coating with very low VOC content, which is recognized green environmental protection product.
Product Parameters:
Type |
UV LED |
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
UV-LED CURING |
Certification |
CE, RoHS |
Chip Material |
AlGaInPEmitting |
Color |
purple |
Luminous Intensity |
2W/cm2 ~20w /cm2 |
Luminous Flux(lm): |
30-40lm |
Optical Attenuation(%) |
0.1 |
Power |
0.06W |
Power Dissipation |
0.1 |
Viewing Angle(°) |
120 |
Color Rendering Index(Ra) |
100 |
Color Temperature |
365 - 405nm |
Operating Temperature(℃) |
10 - 50 |
Storage Temperature(℃) |
10 - 50 |
Wavelength |
365nm/375nm/385nm/395nm/405nm/415nm |
Technical Data of the Irradiation Light Head:
Wavelength(±5nm)
365nm/385nm/395nm/405nm
Curing Area
300*200mm/Other Sized Available
Electronic Power
1100w
Input voltage
220VAC 50Hz / 60Hz
Cooling method
Air cooling
Life
>10000H
Conveyor Speed
100-400mm Adjustable
Irradiation distance
10-100mm adjustable
Optic power
800mw/cm2 (10mm irradiation distance)
Recommend Irradiation Distance
10-100mm

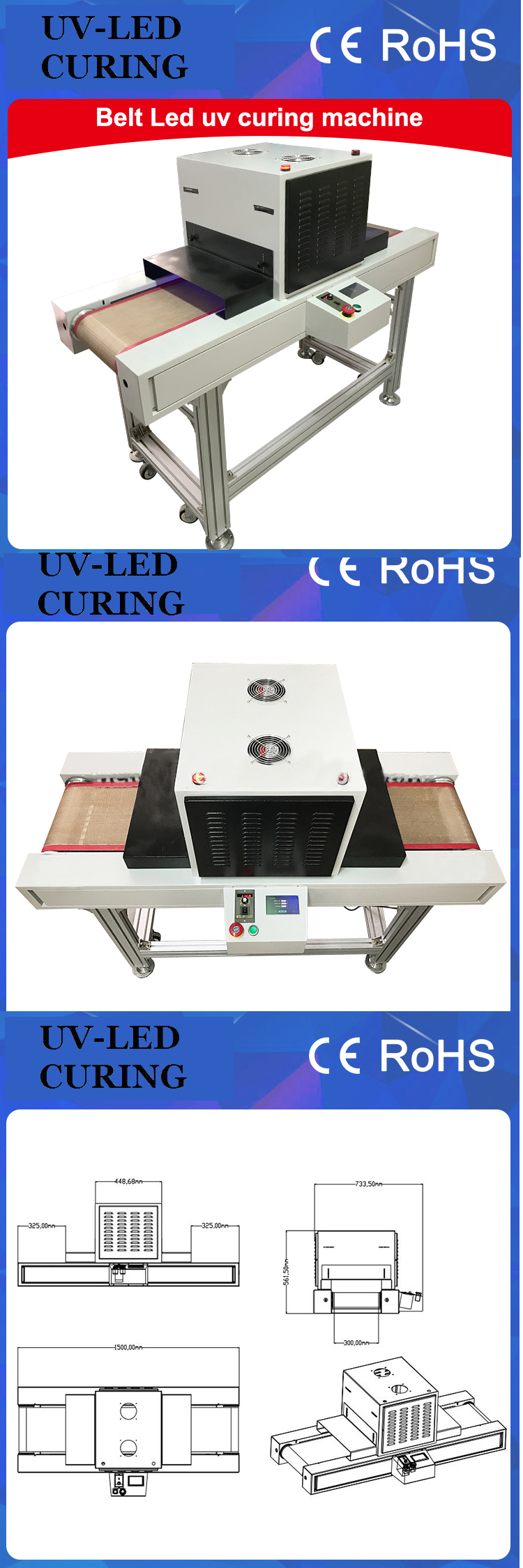

Energy saving factory price UV LED Curing System with desktop conveyor for printing. Effective irradiated area: 30mm*200mmTotall size: 1500x300mm and 1200x400mm
Customized UV LED Dyrer UV Curing Machine with conveyor system.Chain conveyor belt can be adjustable width.Curing Area 300*200mm or other sizes available.
Desktop LED UV Dryer Machine for uv curing. PCB/PCBA Conformal Coating curing. SMT component protection and reinforcement. Medical instrument UV glue curing.
UV LED data line solder joint reinforcement curing machine, replacing traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption and high efficiency.
High Power UV Curing System 395nm is for fast curing. It is without preheating, out-of-the-box, easy to handle.
UV LED+ mercury lamp integrated curing machine, built-in UVLED curing light source and low-power mercury lamp, perfect solution to dry surface problems, simple operation, energy saving.
