SVC CUN6GB1A UV 365nm LED View Angle 55deg 1400mW Quartz Glass SVC CUN6GB1A UV 365nm LED View Angle 55deg 1400mW Quartz Glass SVC CUN6GB1A UV 365nm LED View Angle 55deg 1400mW Quartz Glass SVC CUN6GB1A UV 365nm LED View Angle 55deg 1400mW Quartz Glass SVC CUN6GB1A UV 365nm LED View Angle 55deg 1400mW Quartz Glass

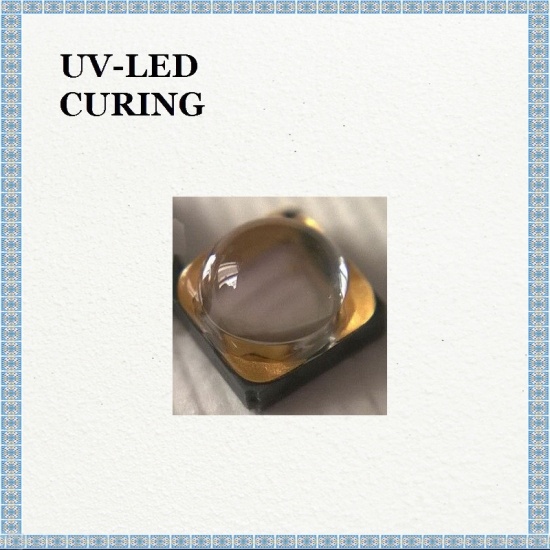

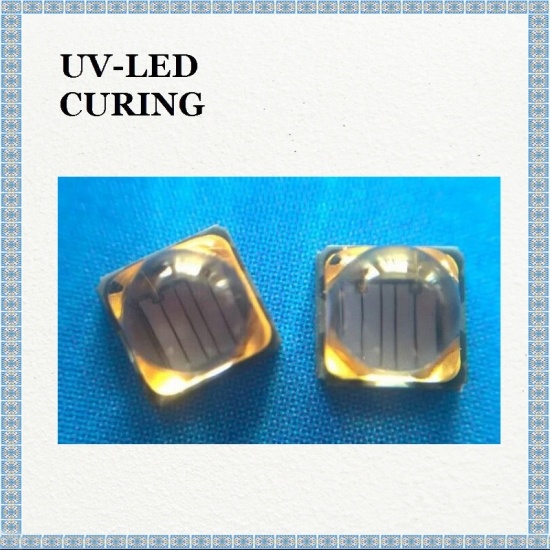

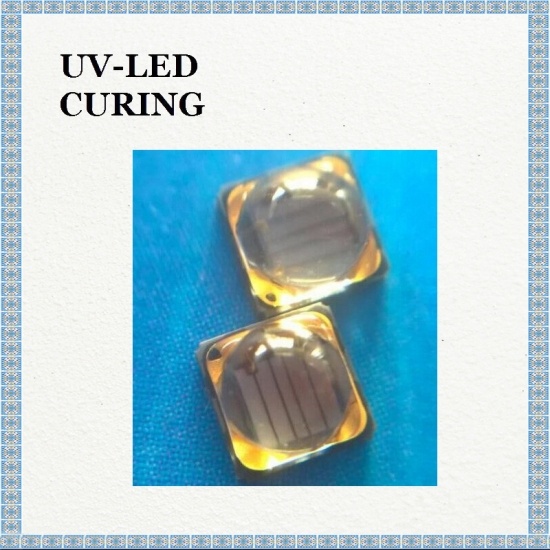

SVC CUN6GB1A UV 365nm LED View Angle 55deg 1400mW Quartz Glass

The features of SVC CUN6GB1A UV 365nm LED are super high power output, designed for high current operation, low thermal resistance, SMT solderable, lead free product, RoHS complicant.

  • model no. :

    SVC CUN6GB1A UV 365nm LED
  • Brand:

    DSXUV
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
  • Lead Time :

    The Same Day
Product Details

SVC CUN6GB1A UV 365nm LED is designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CUN6GB1A(CA3535N) NUV LED is ideal UV light source for curing, printing, and detecting applications.


Product Parameters:

Brand: Korea SVC

Type:CUN6GB1A

Size:3.5*3.5mm

Wavelength:360-370nm

Radiant Flux:1000-1300mW

Forward Current/Forward Voltage:1400mA/3.0-4.4V

View Angle:55deg.

Lens:Quartz Glass



Outline dimensions

SVC CUN6GB1A UV 365nm LED


Notes :

[1] All dimensions are in millimeters.

[2] Scale : none

[3] Undefined tolerance is ±0.2mm



Characteristics of CUN6GB1A

SVC


Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3.  Φ e is the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. R θ J-b is the thermal resistance between chip junction to PCB board bottom.
The PCB is made of aluminium and the size of PCB is 2.5cm by 2.5cm


Reliability

1400mW with Hard Glass


Notes :
 The value is measured after the test sample is cooled down to the room temperature.


Precaution for use

UV 365nm LED View Angle 55deg 1400mW
