NVSU333A UV-LED is widely used in high precision curing, ink curing (printing), bill checker etc. It's also the best way to solidify UV glue.
model no. :
NVSU333A 365nm UV LEDBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

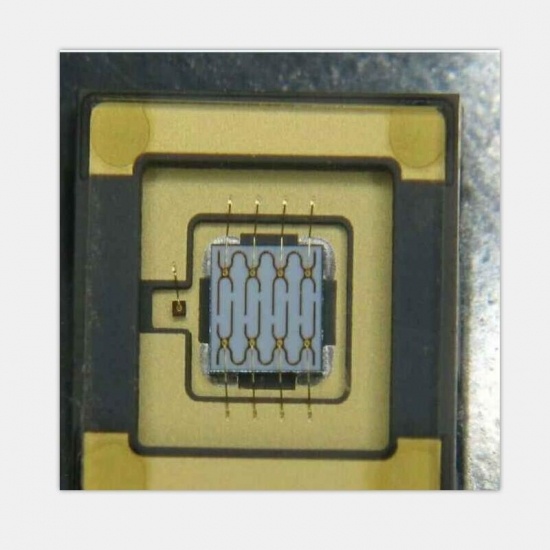

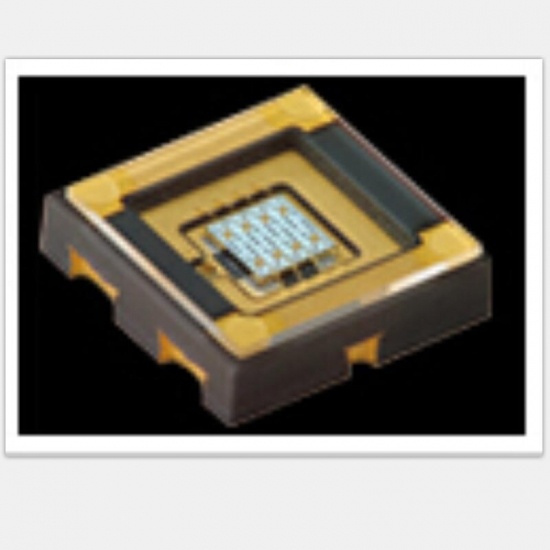

JapanNVSU333A 365nm , high Power UV-LED Light Chips,long lifetime
Main parameter
● Pb-free Reflow Soldering Application
● Built-in ESD Protection Device
● RoHS Compliant
NVSU333ASPECIFICATIONS:
(1) Absolute Maximum Ratings
Forward Current I F 4500 mA
Pulse Forward Current I FP 6000 mA
Allowable Reverse Current I R 85 mA
Power Dissipation P D 18.9 W
Operating Temperature T opr -10~85 °C
Storage Temperature T stg -40~100 °C
Junction Temperature T J 100 °C
* Absolute Maximum Ratings at T S =25°C.
* I FP conditions with pulse width ≤10ms and duty cycle ≤10%.
(2) Initial Electrical/Optical Characteristics
Forward Voltage V F I F =3500mA 3.85V
Radiant Flux Φ e I F =3500mA 3640mW
Peak Wavelength λ p I F =3500mA 365nm
Spectrum Half Width Δλ I F =3500mA 9.0nm
* Characteristics at T S =25°C.
* Radiant Flux value as per CIE 127:2007 standard.

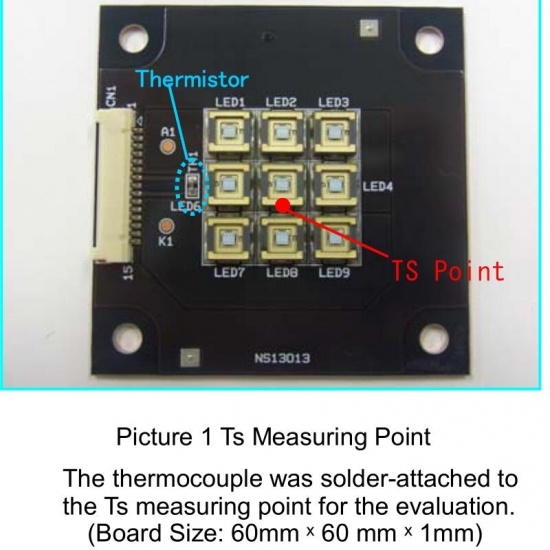

* R θJS is the thermal resistance from the junction to the T S measurement point.
* It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.
(3)Size
LxWxH(mm) 6.8x6.8x1.9
(4)NVSU333A Applications
Ink curing ,Lithography,Resin curing,Fluorescence Excitation,UV glue curing,Gap bonding,Magnetic-particle inspection etc.
