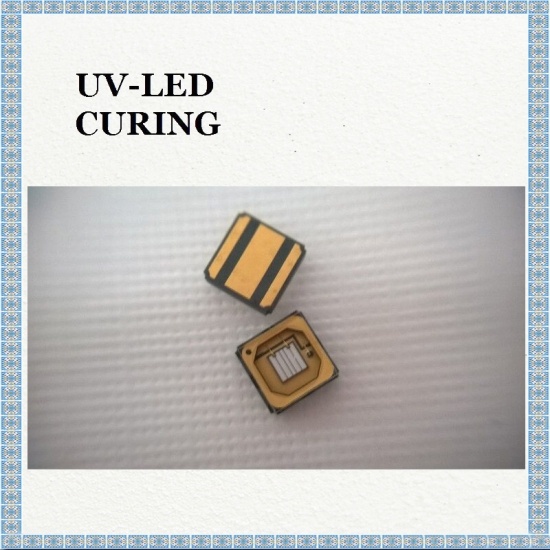

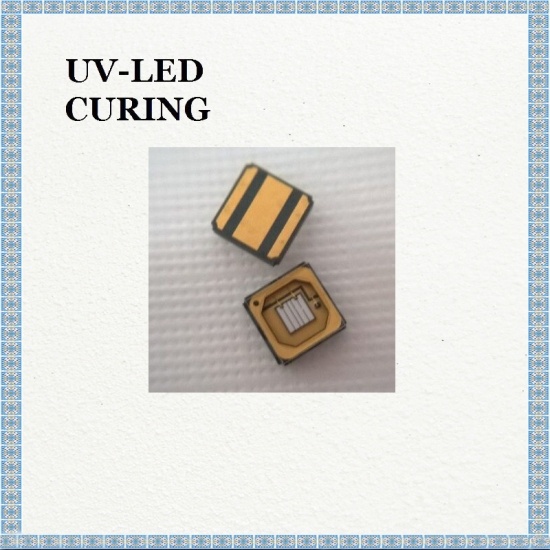

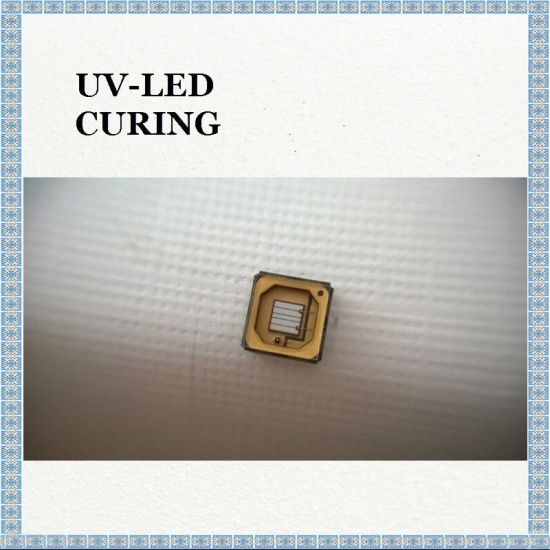

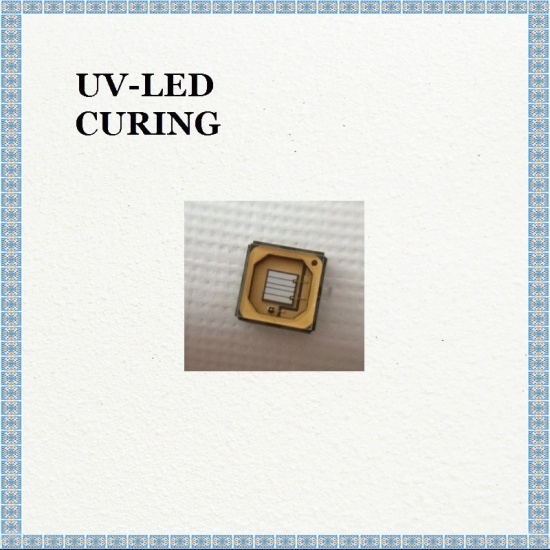

SVC CUN6GF1A UV 365nm 5W High Radiant Flux 1300mW

High power UV LED series are designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CUN6GF1A(CA3535) UV LED is ideal UV light source for curing, printing, and detecting applications.

Product Parameters:

Brand: Korea SVC

Type：CUN6GF1A

Size: 3.5*3.5mm

Wavelength: 360-370nm

Radiant Flux:1000-1300mW

Forward Current/Forward Voltage:1400mA/3.0-4.4V

View Angle:55deg.

Lens：Quartz Glass

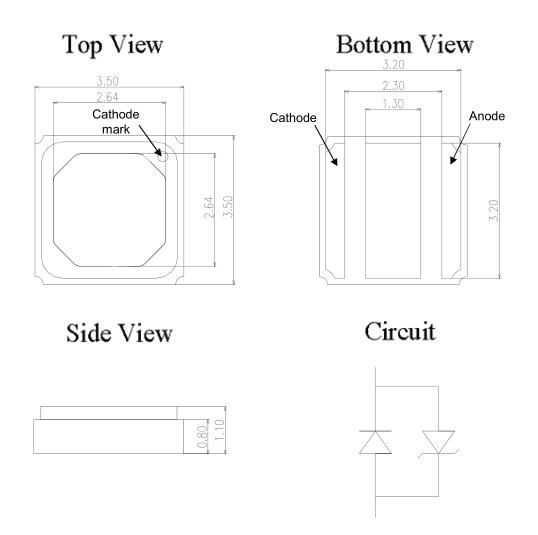

Outline dimensions

Notes :

[1] All dimensions are in millimeters.

[2] Scale : none

[3] Undefined tolerance is ±0.2mm

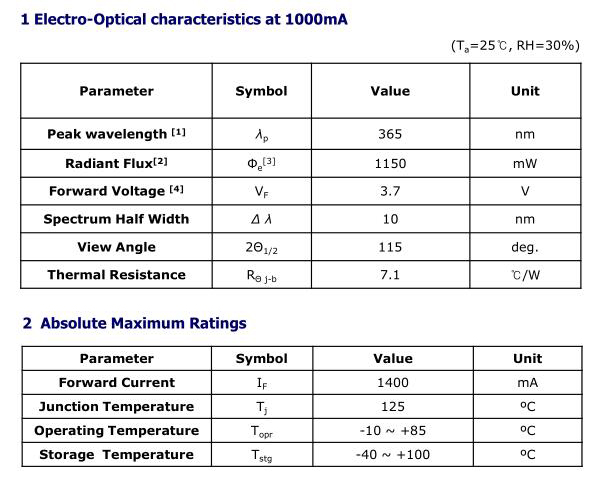

Characteristics of CUN6GF1A

Notes :

1. Peak Wavelength Measurement tolerance : ±3nm

2. Radiant Flux Measurement tolerance : ± 10%

3.  Φ e is the Total Radiant Flux as measured with an integrated sphere.

4. Forward Voltage Measurement tolerance : ±3%

5. R θ J-b is the thermal resistance between chip junction to PCB board bottom.

The PCB is made of aluminium and the size of PCB is 2.5cm by 2.5cm

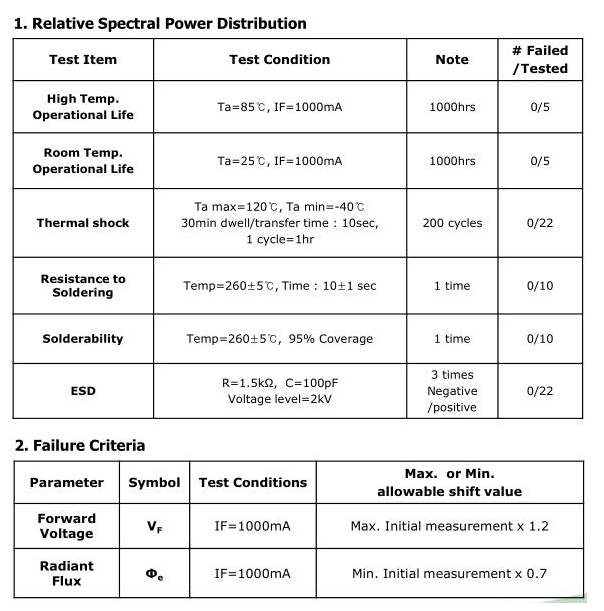

Reliability

Notes :

The value is measured after the test sample is cooled down to the room temperature.

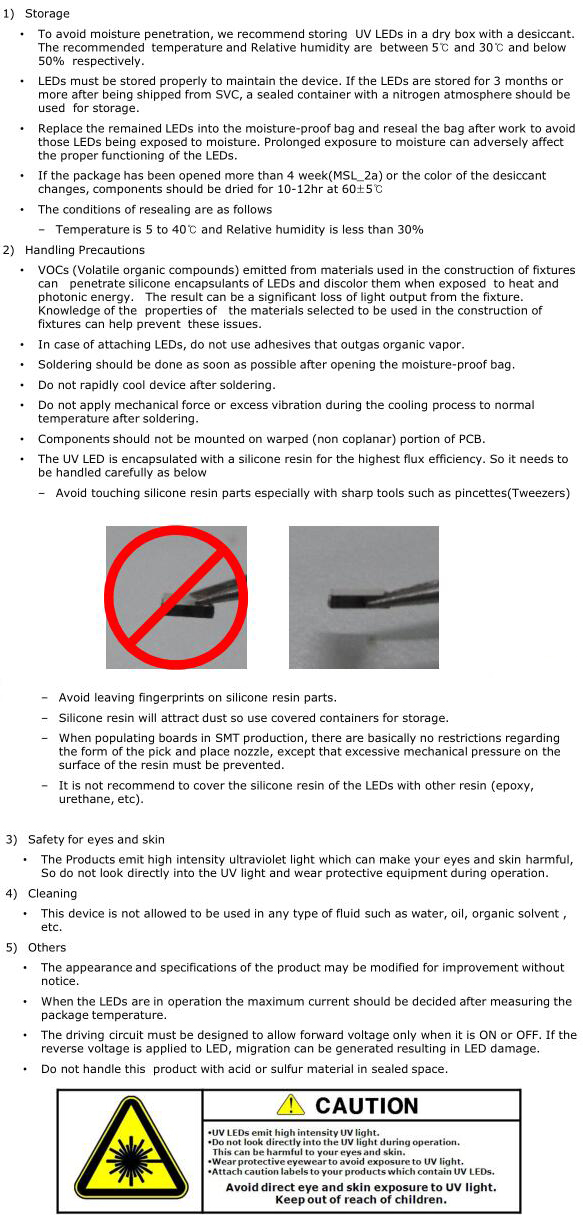

Precaution for use
