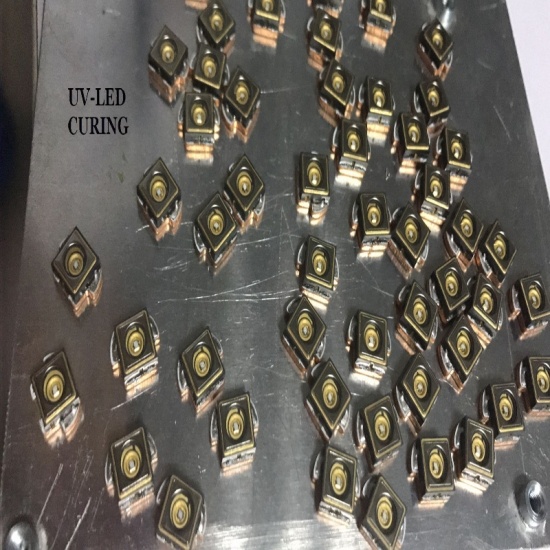

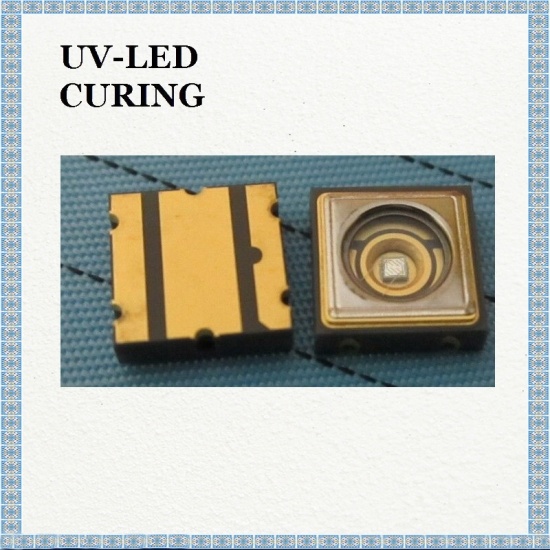

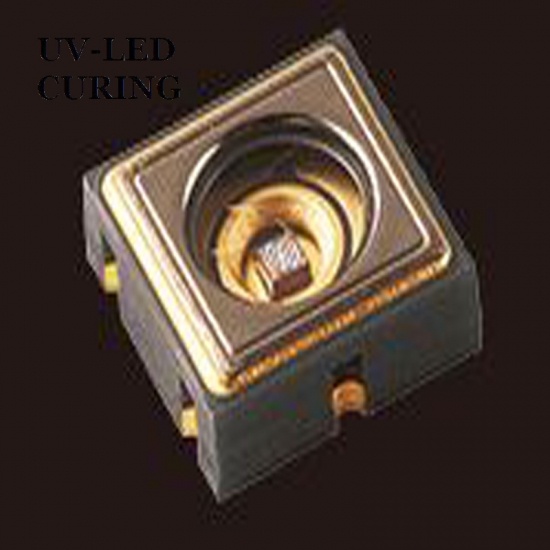

NICHIA NCSU033B 365nm UV LED NICHIA NCSU033B 365nm UV LED NICHIA NCSU033B 365nm UV LED

NICHIA NCSU033B 365nm UV LED

NICHIA NCSU033B 365nm UV LED can be used for criminal investigation, such as the observation of fingerprint, bloodstain, etc., mineral fluorescence observation, oil cleaning observation, and so on.



  • model no. :

    NCSU033B UV LED
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
  • Lead Time :

    The Same Day
Product Details

NICHIA NCSU033B 365nm UV LED not only can used  for criminal investigation, but also can used  for degreasing cleaning confirmation, for example, food industry, kitchen, cooking utensils, tableware.


SPECIFICATIONS

(1) Absolute Maximum Ratings

Item

Symbol

Absolute Maximum Rating

Unit

Forward Current

IF

700

mA

Pulse Forward Current

IFP

1000

mA

Allowable Reverse Current

IR

85

mA

Power Dissipation

PD

3.08

W

Operating Temperature

Topr

-10~85

°C

Storage Temperature

Tstg

-40~100

°C

Junction Temperature

TJ

130

°C

* Absolute Maximum Ratings at TS =25°C.

* I FP conditions with pulse width ≤10ms and duty cycle ≤10%.


(2) Initial Electrical/Optical Characteristics

Item

Symbol

Condition

Type

Max

Unit

Forward Voltage

VF

IF =500mA

3.8

-

V

Radiant Flux

Φe

IF =500mA

450

-

mW

Peak Wavelength

λp

IF =500mA

365

-

nm

Spectrum Half Width

Δλ

IF =500mA

9.0

-

nm

Thermal Resistance

RθJS

-

4.4

7.3

°C/W

* Characteristics at T S =25°C.

* Radiant Flux value as per CIE 127:2007 standard.

* R θJS is Thermal Resistance from junction to T S measuring point.

* It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.


RANKS

Item

Rank

Min

Max

Unit

Forward Voltage



H

4.0

4.4

V



M

3.6

4.0

L

3.2

3.6

Radiant Flux

P34d22

592

640

mW

P34d21

540

590

P33d22

495

540

P33d21

455

495

P32d22

415

455

P32d21

380

415

P31

320

380

P30

270

320

Peak Wavelength

Ua

360

370

nm

* Ranking at T S =25°C.

* Forward Voltage Tolerance: ±0.05V

* Radiant Flux Tolerance: ±10%

* Peak Wavelength Tolerance: ±3nm

* LEDs from the above ranks will be shipped.

The rank combination ratio per shipment will be decided by Nichia.

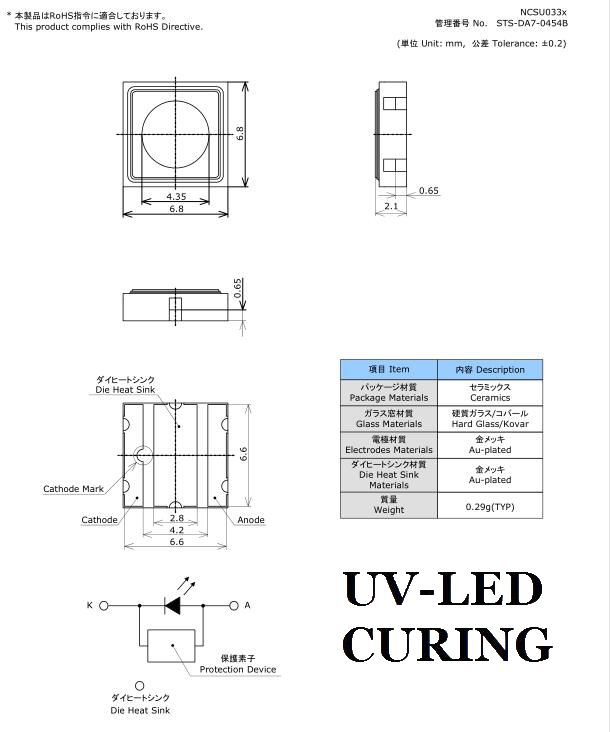

OUTLINE DIMENSIONS

NICHIA NCSU033B UV LED


RELIABILITY

(1) Tests and Results

Test

Reference

Standard

Test Conditions

Test Duration

Failure Criteria #

Units Failed/Tested

Resistance to

Soldering Heat(Reflow Soldering)

JEITA ED-4701

300 301

T sld =260°C, 10sec, 2reflows,

Precondition: 30°C, 70%RH, 168hr



#1

0/10

Thermal Shock

JEITA ED-4701

100 105

-40°C(30min)~25°C(5min)~

100°C(30min)~25°C(5min)

100cycles

#1

0/10

High Temperature

Storage

JEITA ED-4701

200 201

T A =100°C

1000hours

#1

0/10

Low Temperature

Storage

JEITA ED-4701

200 202

T A =-40°C

1000hours

#1

0/10

Room Temperature

Operating Life



T A =25°C, I F =700mA

1000hours

#1

0/10

High Temperature

Operating Life



T A =85°C, I F =300mA

1000hours

#1

0/10

Temperature Humidity

Operating Life



60°C, RH=90%, IF =450mA

500hours

#1

0/10

Low Temperature

Operating Life



T A =-10°C, I F =500mA

1000hours

#1

0/10

Vibration

JEITA ED-4701

400 403

200m/s 2 , 100~2000~100Hz,

4cycles, 4min, each X, Y, Z

48minutes

#1

0/10

Electrostatic Discharges

JEITA ED-4701

300 304

HBM, 2kV, 1.5kΩ, 100pF, 3pulses,

alternately positive or negative



#1

0/10

NOTES:

1) R θJA ≈35°C/W

2) Measurements are performed after allowing the LEDs to return to room temperature.


(2) Failure Criteria

Criteria #

Items

Conditions

Failure Criteria

#1

Forward Voltage(VF )

IF =500mA

>Initial value×1.1

Radiant Flux(ΦE )

IF =500mA

<Initial value×0.7
